CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

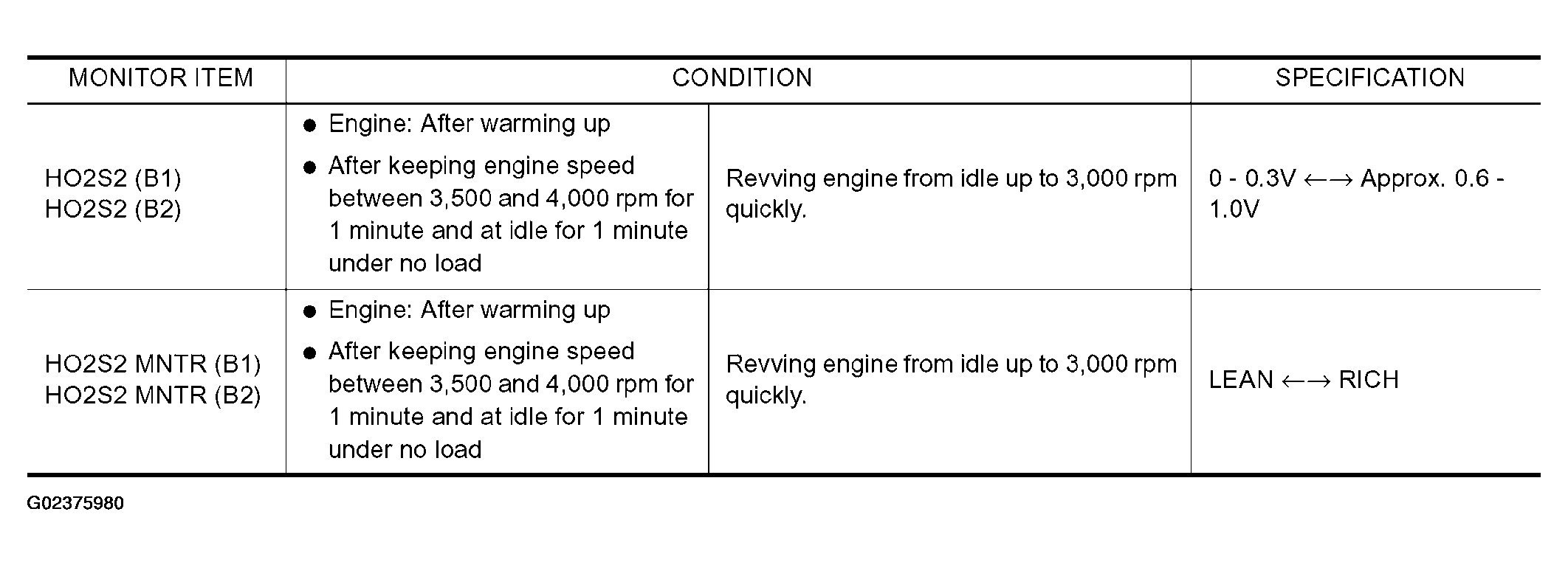

Fig 1: Monitor Item Specifications Chart
G02375980Courtesy of NISSAN MOTOR CO., U.S.A.
