Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body.

      Refer to "GROUND INSPECTION ".

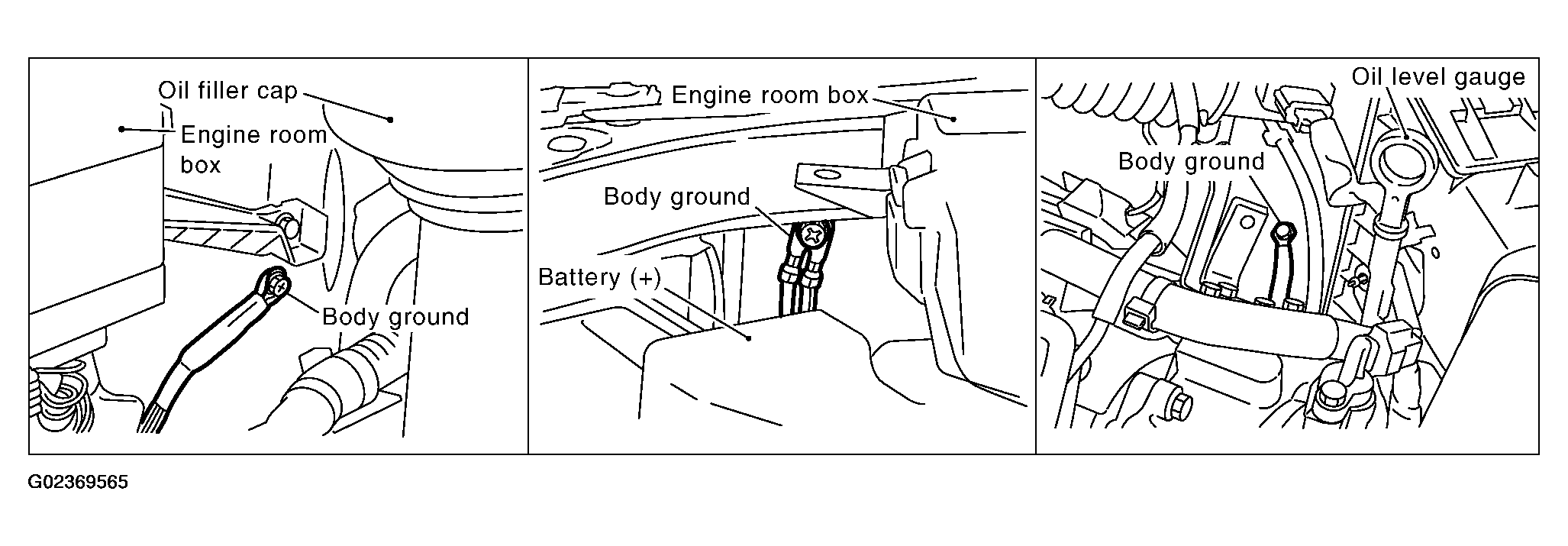

    Fig 1: Locating Three Ground Screws On Body
    G02369565Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Repair or replace ground connections.
  2. CHECK PSP SENSOR POWER SUPPLY CIRCUIT
    1. Disconnect power steering pressure (PSP) sensor harness connector.
    2. Turn ignition switch ON.

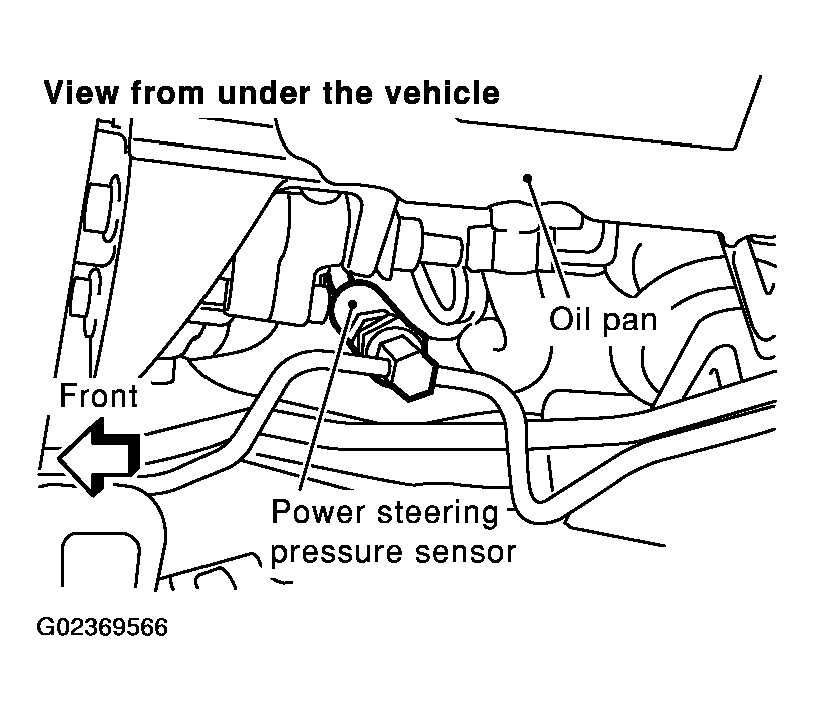

      Fig 2: Disconnecting Power Steering Pressure (PSP) Sensor Harness Connector
      G02369566Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between PSP sensor terminal 1 and ground with CONSULT-II or tester.
      1. Voltage: Approximately 5V

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO 3.
    Fig 3: Checking Voltage Between PSP Sensor Terminal 1
    G02369567Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F5, E315
    • Harness for open or short between ECM and PSP sensor
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK PSP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between PSP sensor terminal 3 and ECM terminal 67.

      Refer to WIRING DIAGRAM .

      1. Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  6.
    2. NG: GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F5, E315
    • Harness for open or short between PSP sensor and ECM
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK PSP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 12 and PSP sensor terminal 2.

      Refer to WIRING DIAGRAM .

      1. Continuity should exist.
    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO  8.
    2. NG: GO TO 7.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors F5, E315
    • Harness for open or short between ECM and PSP sensor
      1. Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK PSP SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK: GO TO 9.
    2. NG: Replace PSP sensor.
  9. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. INSPECTION END
