With Consult-II

  1. Tighten fuel filler cap securely until ratcheting sound is heard.
  2. Turn ignition switch ON.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  5. Make sure that the following conditions are met.

    COOLAN TEMP/S: 0 - 70°C (32 - 158°F)

    INT/A TEMP SE: 0 - 60°C (32 - 140°F)

  6. Select "EVAP SML LEAK P0442/P1442" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II. Follow the instruction displayed.
    Fig 1: CONSULT-II Data Monitor Mode Display
    G02369517Courtesy of NISSAN MOTOR CO., U.S.A.

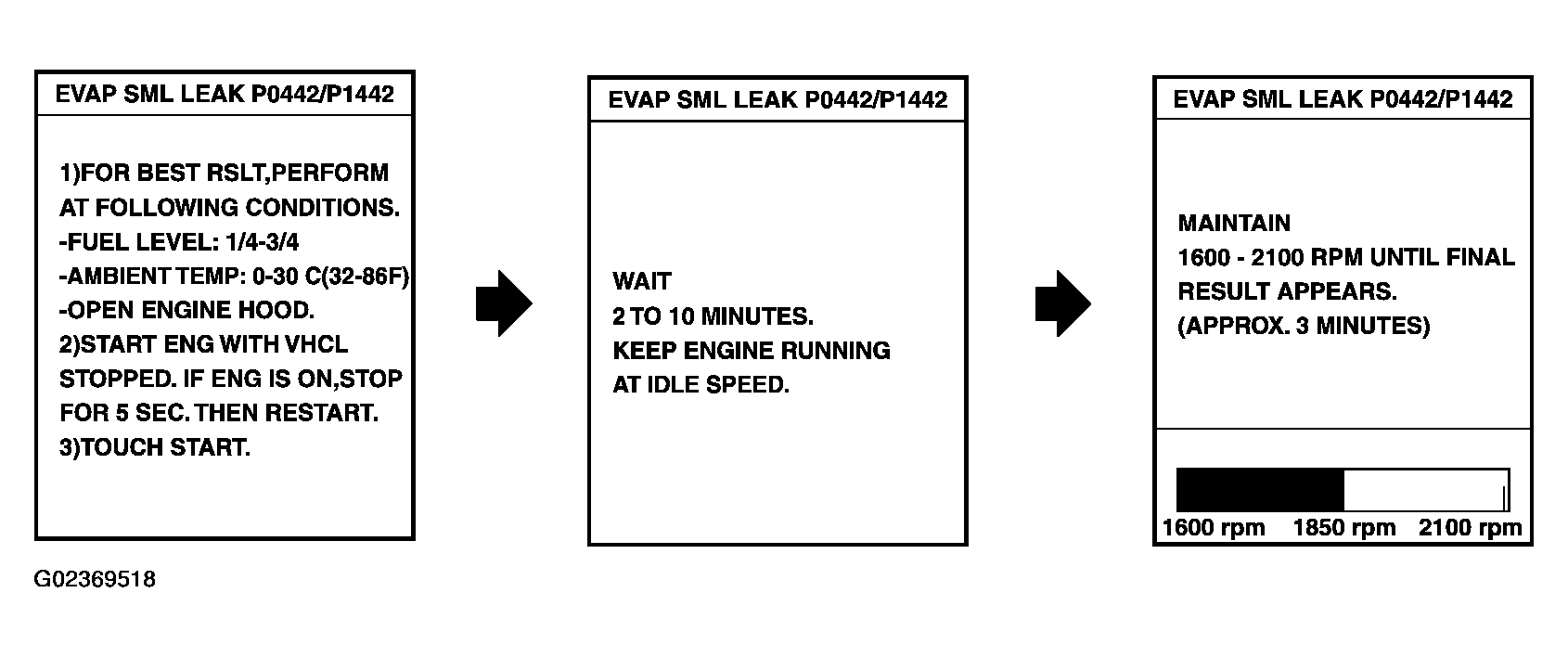

    Fig 2: EVAP SML LEAK P0442/P1442 Display
    G02369518Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to "BASIC SERVICE PROCEDURE ".
  7. Make sure that "OK" is displayed.

    If "NG" is displayed, select "SELF-DIAG RESULTS" mode and make sure that "EVAP GROSS LEAK [P0455]" is displayed. If it is displayed, refer to "DIAGNOSTIC PROCEDURE ".

    If P0442 is displayed, go to "DIAGNOSTIC PROCEDURE ".

    If P1442 is displayed, go to "DIAGNOSTIC PROCEDURE ".

    Fig 3: EVAP SML LEAK P0442/P1442 Display
    G02369519Courtesy of NISSAN MOTOR CO., U.S.A.
