Removal and Installation: Notes

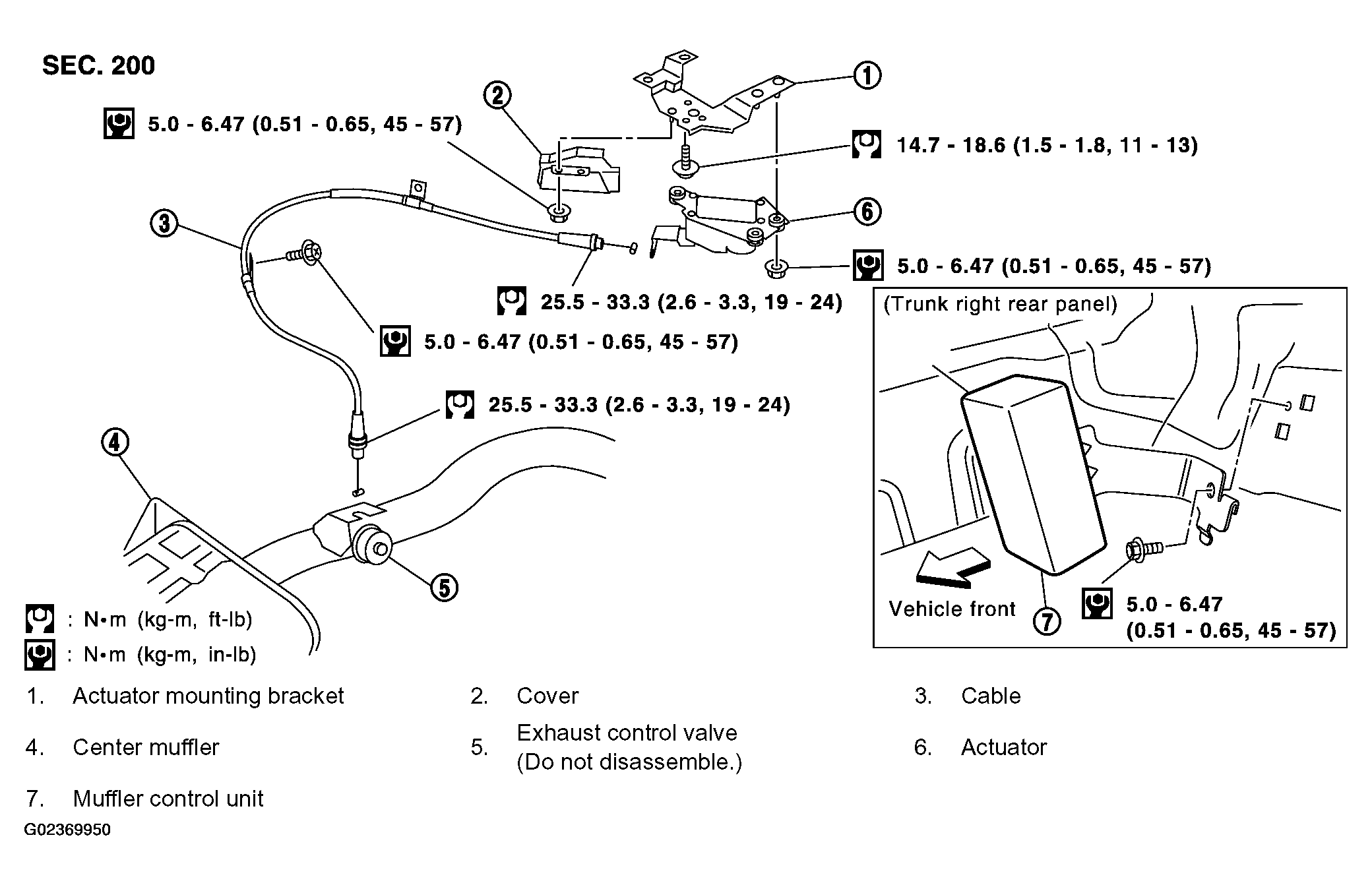

Fig 1: Tightening Torque Specification Dual Mode Muffler
G02369950Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Exhaust control valve is provided in center muffler and not permitted to disassemble.
