Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System
>>
Oil Pump
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

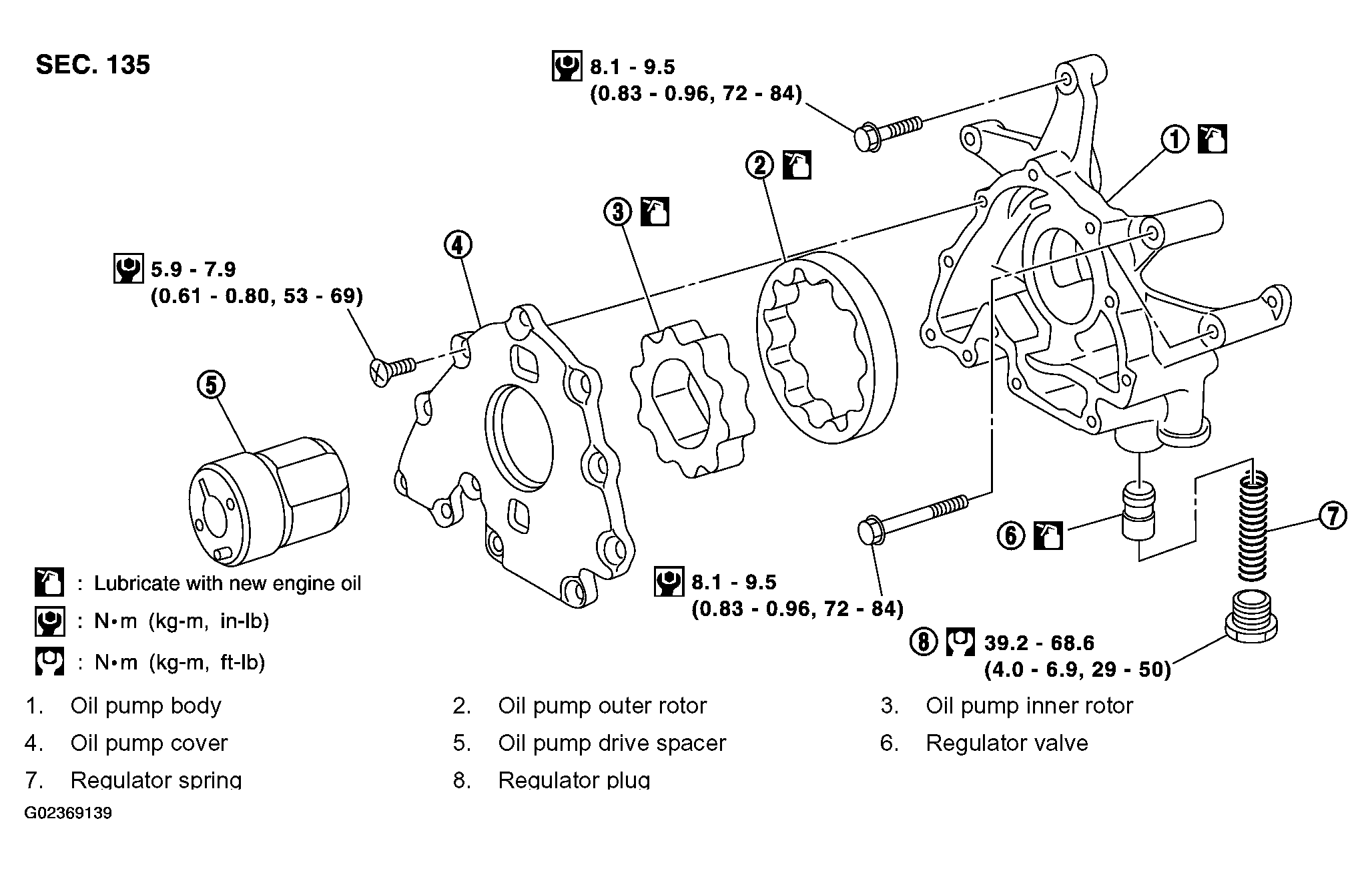

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
