Infiniti
>>
2005
>>
Q45
>>
Repair and Diagnosis
>>
Electrical
>>
Gauges
>>
Instrument Panel
>>
Instrument Panel Assembly
>>
Removal and Installation
>>
Notes
Removal and Installation: Notes

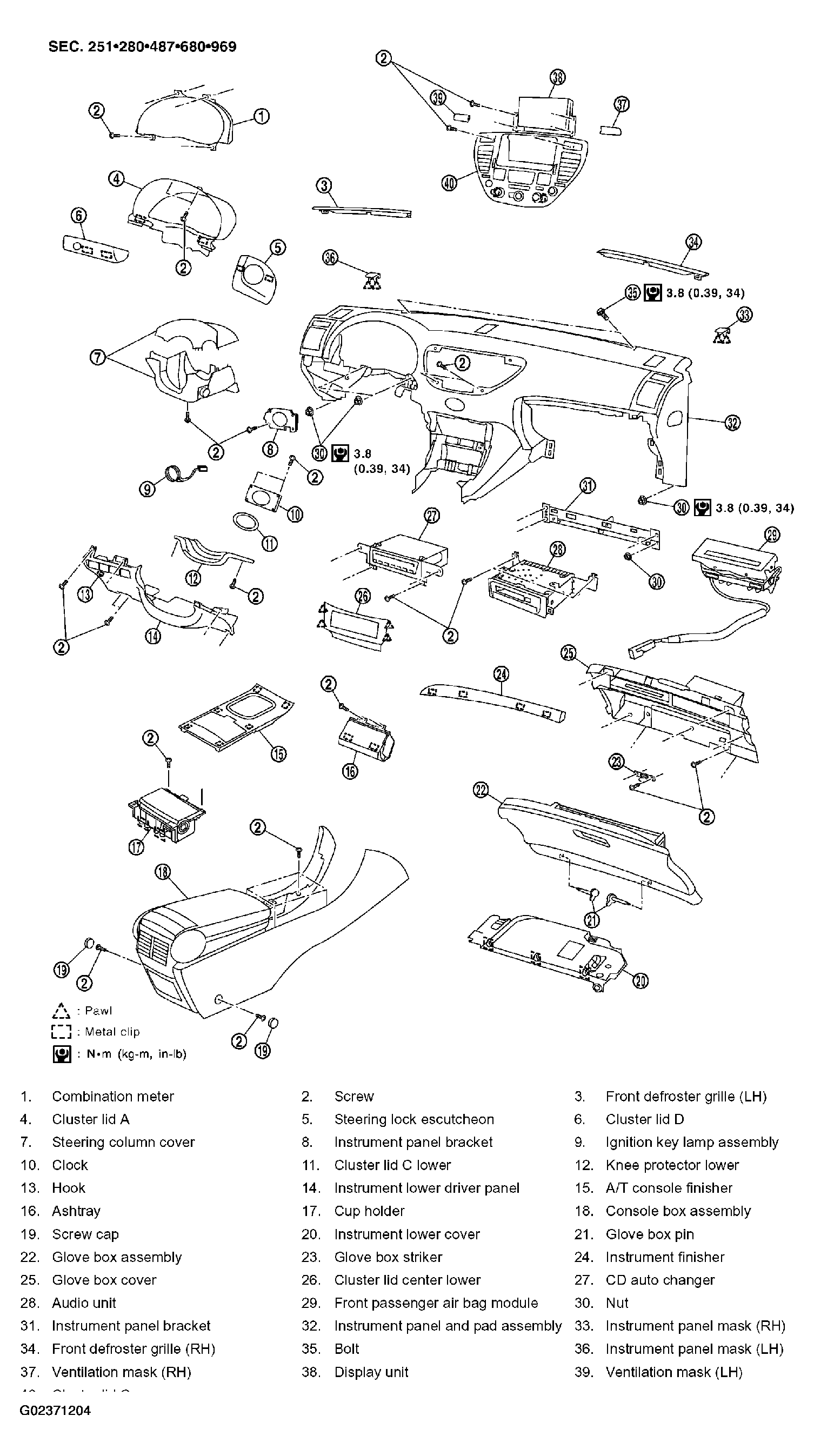

Fig 1: Exploded View Of Instrument Panel Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
