Terminals and Reference Value Chart for BCM

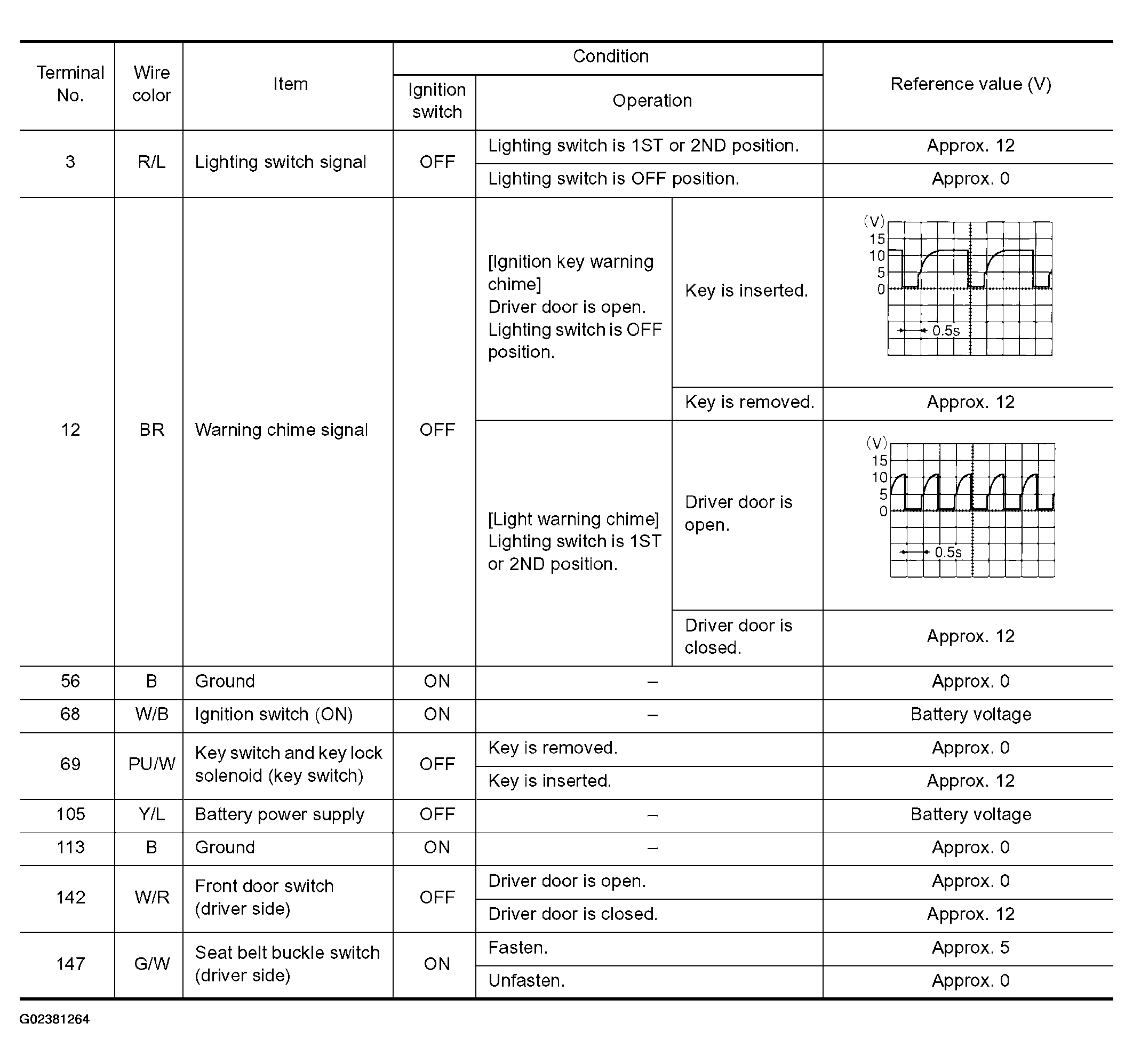

Fig 1: Terminals And Reference Value Chart For BCM Chart

G02381264

Courtesy of NISSAN MOTOR CO., U.S.A.
