Warning Chime: Schematic

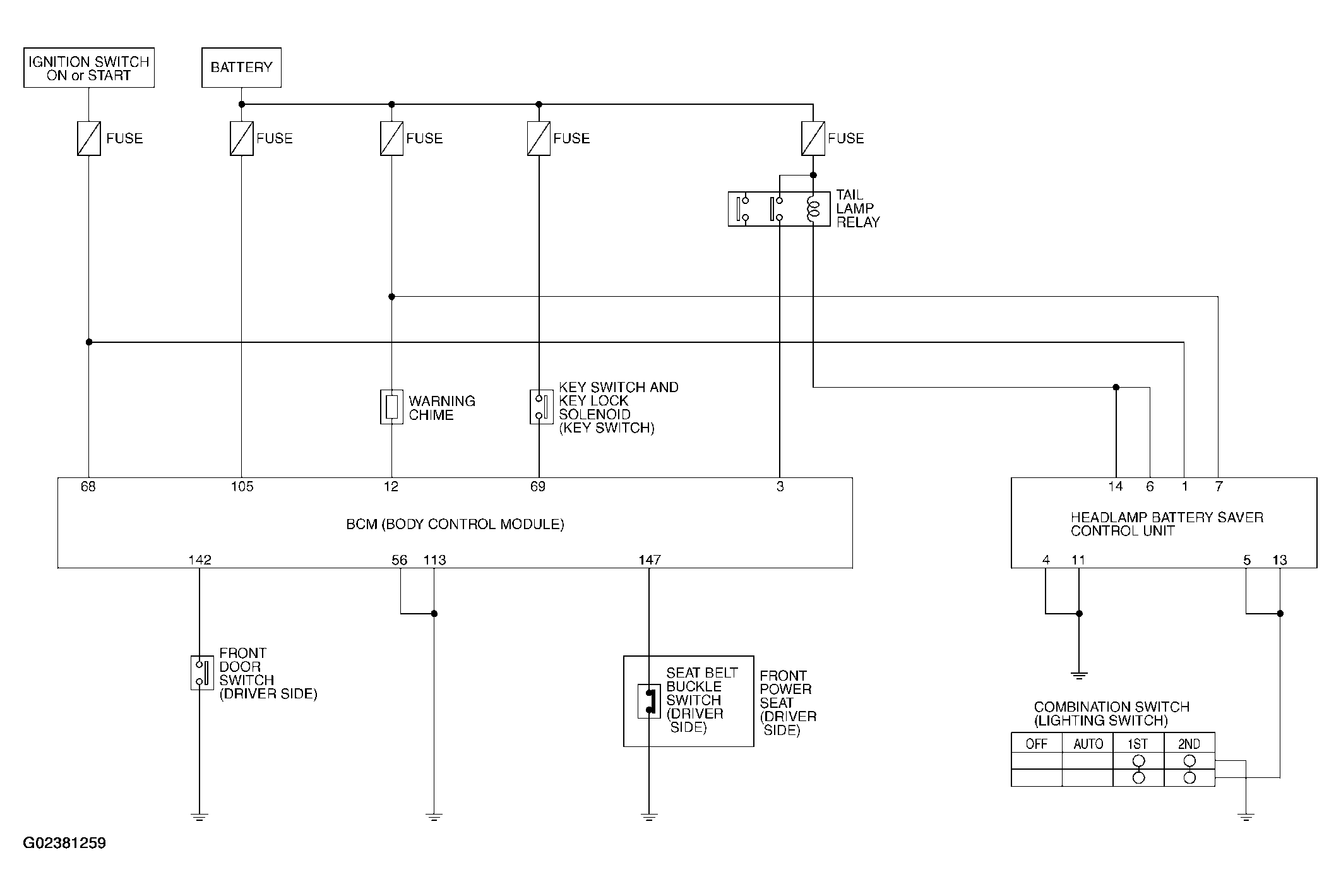

Fig 1: Warning Chime Schematic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
