Vehicle Information And Integrated Switch System / Without Navigation System: Schematic

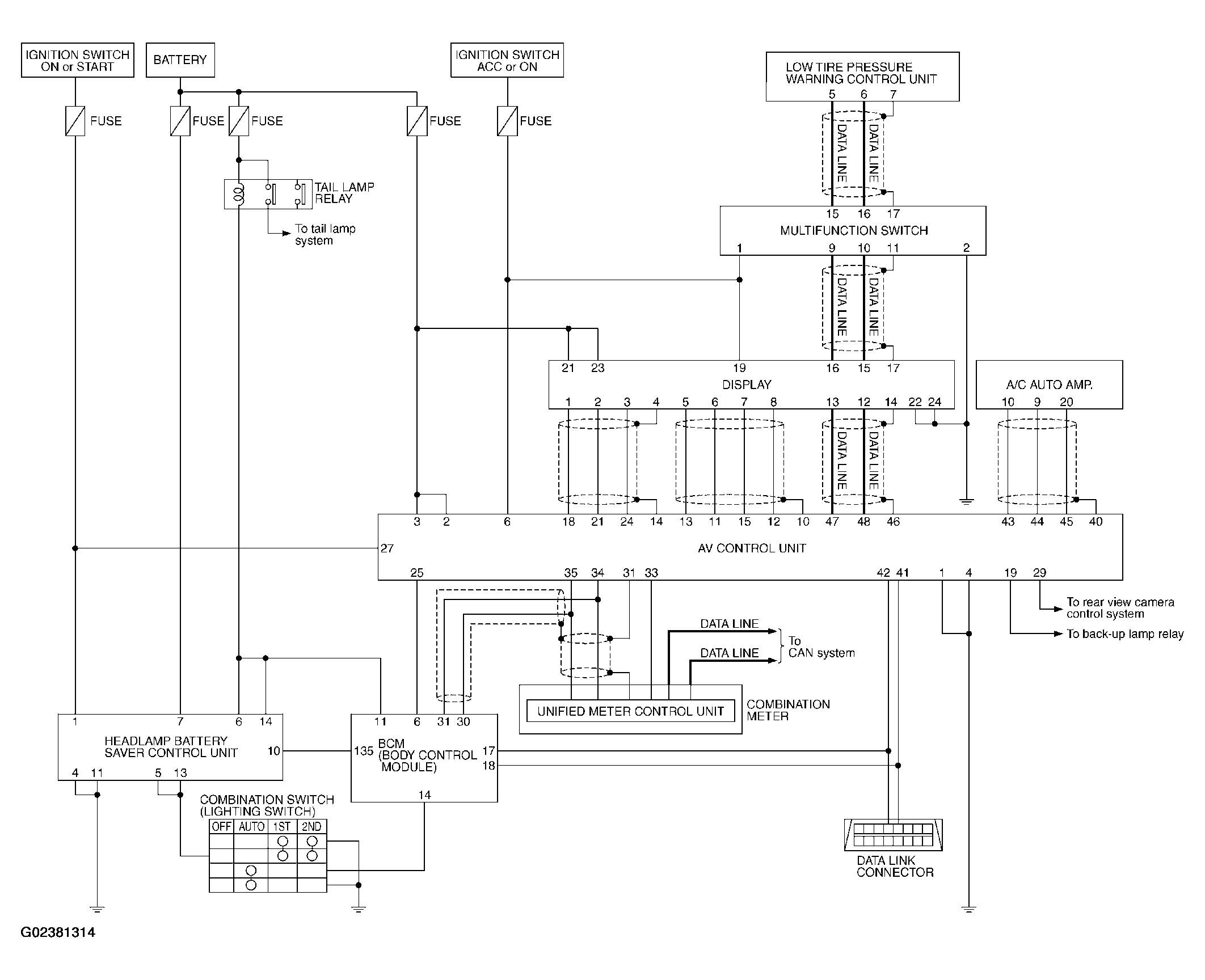

Fig 1: Vehicle Information And Integrated Switch Schematic Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

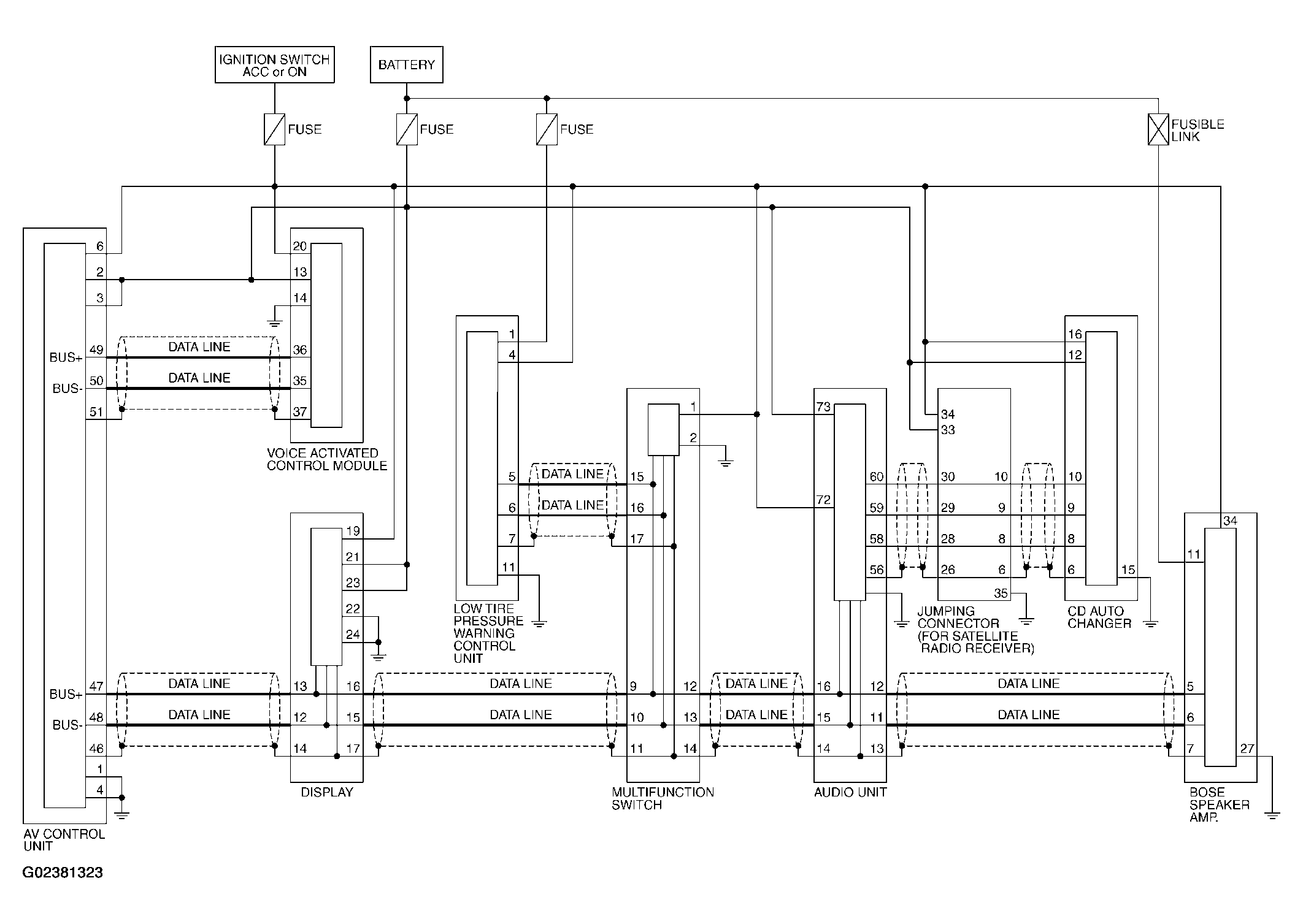

Fig 1: Schematic Wiring Diagram - INF/D

Courtesy of NISSAN MOTOR CO., U.S.A.
