Terminals and Reference Value for Display

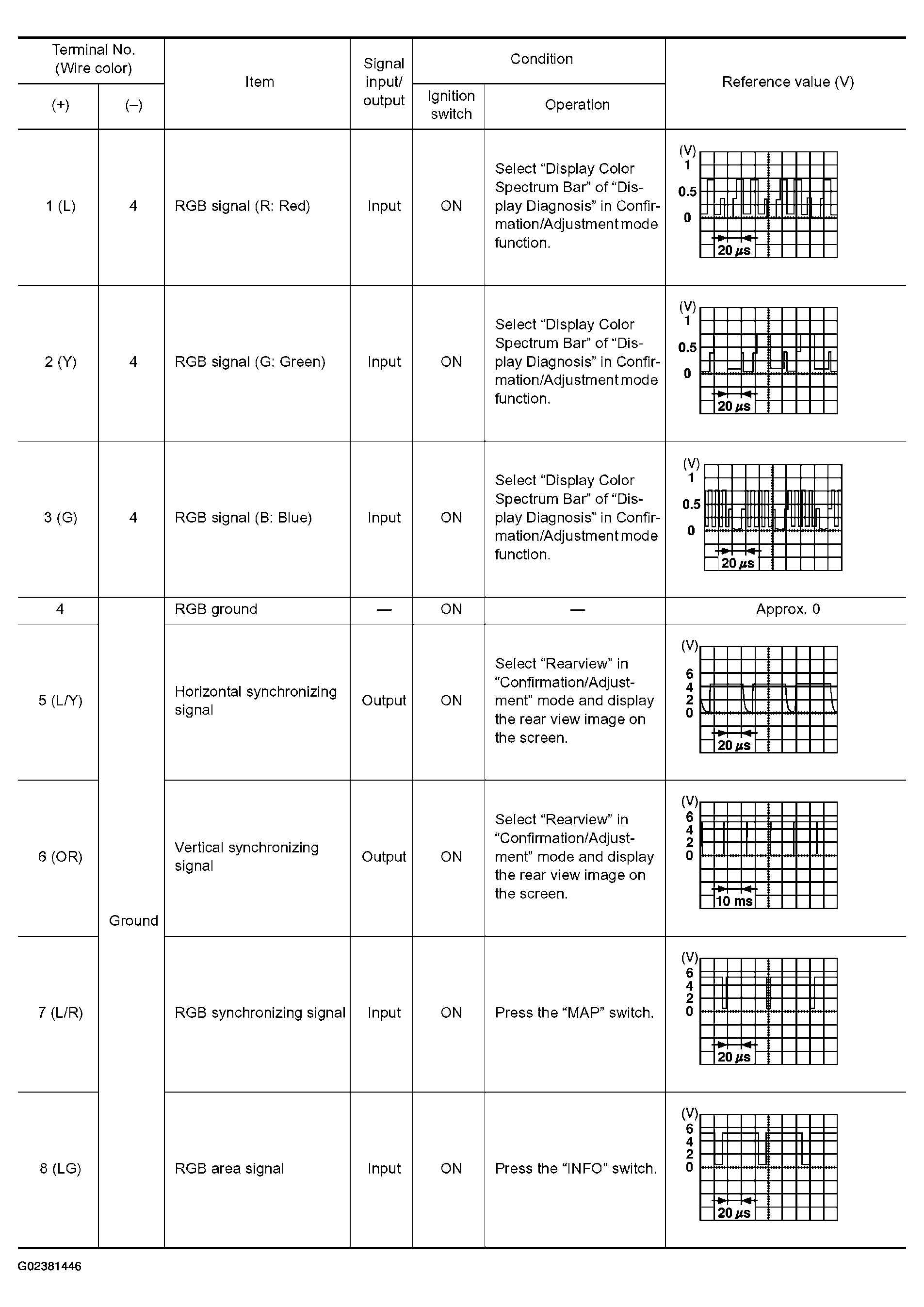

Fig 1: Terminals And Reference Value For Display Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

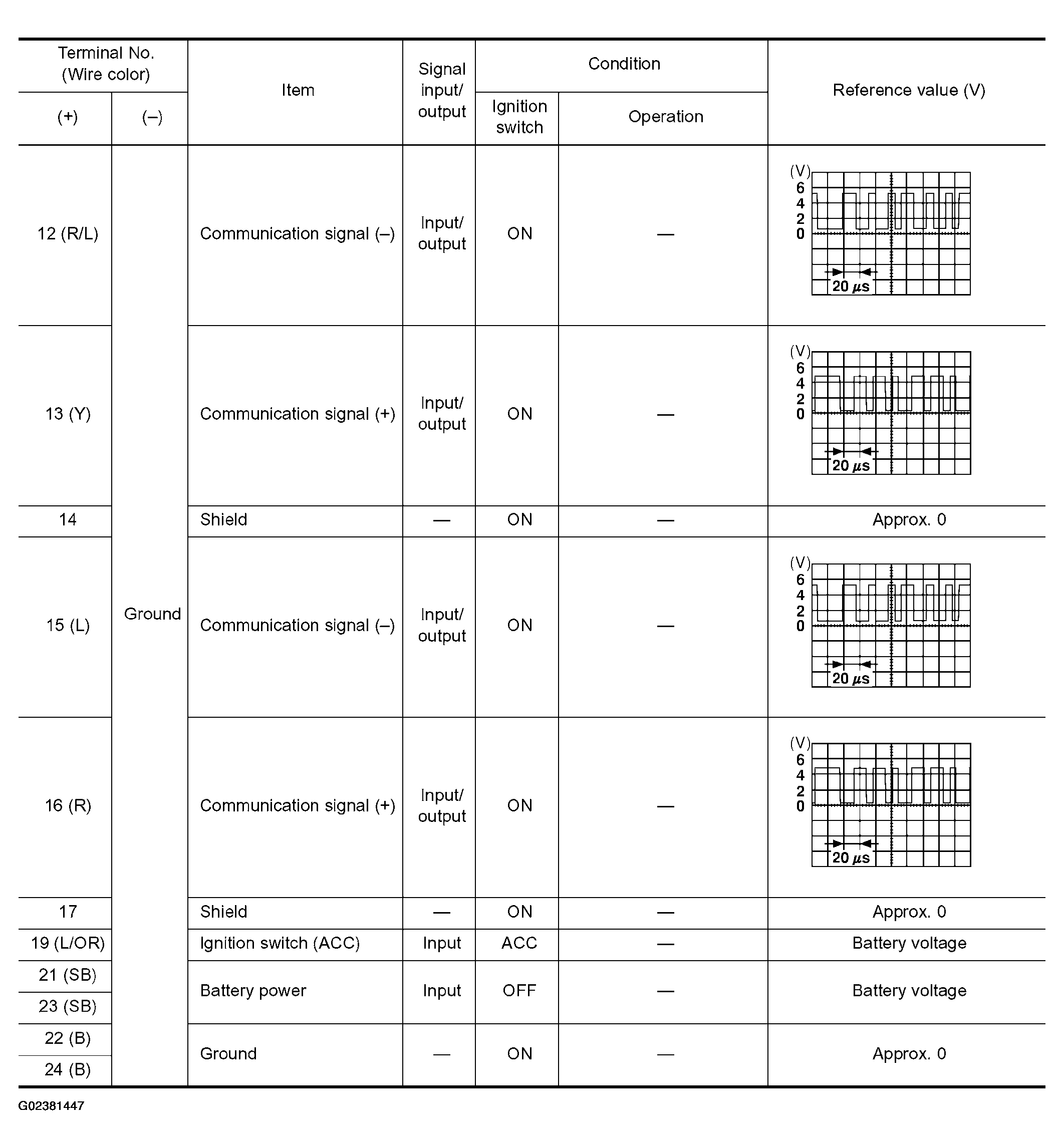

Fig 2: Terminals And Reference Value For Display Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
