Disassembly and Assembly for Combination Meter: Disassembly

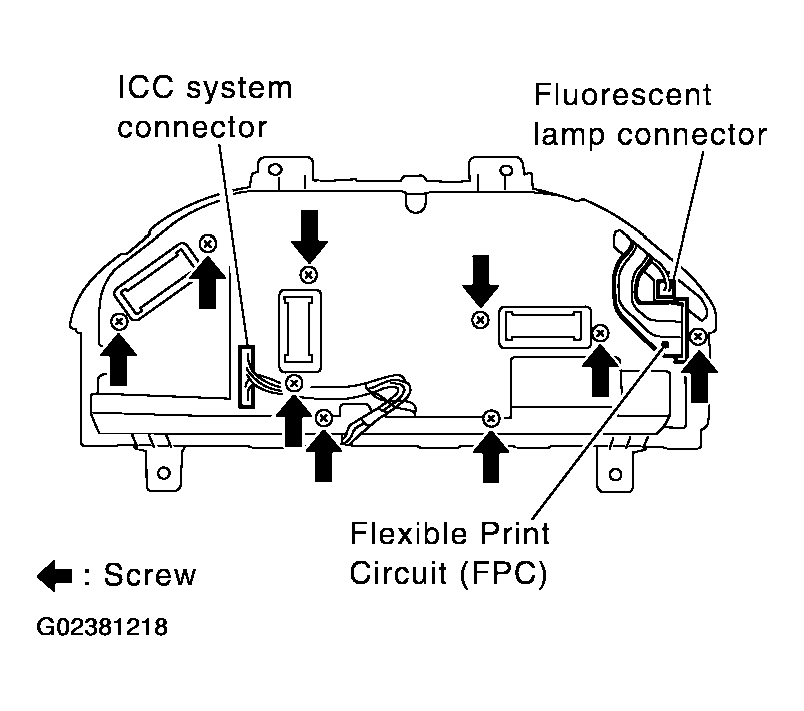

- Disconnect ICC system display connector if equipped.
- Remove the screws (9) to separate meter cover.
- Separate the connectors for fluorescent lamp connector and flexible print circuit for fluorescent lamp.
- Separate the flexible print circuit for odo/trip meter.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove the screw (1) to separate unified meter control unit (main and sub).
- Disengage the tabs (8) to separate upper housing.
- Remove the screw (1) to separate meter and gauge assembly.
- Disengage the tabs (7) to separate front cover.
- Separate unified meter control unit (main) from unified meter control unit (sub).
Courtesy of NISSAN MOTOR CO., U.S.A.
