Home >> Infiniti >> 2005 >> Q45 >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting & Charging System >> Alternator >> Removal and Installation >> Notes

Removal and Installation: Notes

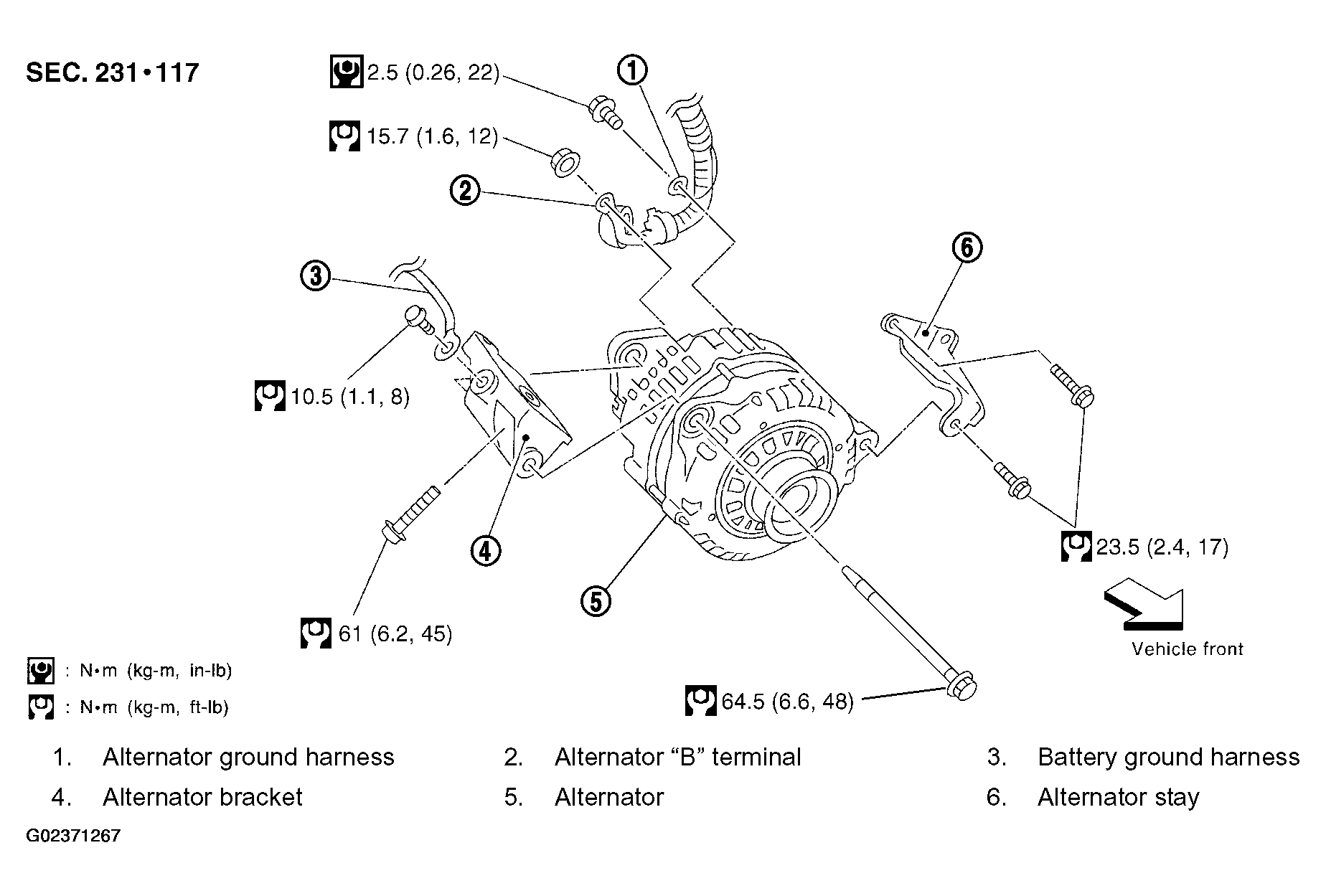

Fig 1: Alternator Replacement Components With Torque Specifications
G02371267Courtesy of NISSAN MOTOR CO., U.S.A.
