Removal and Installation: Components

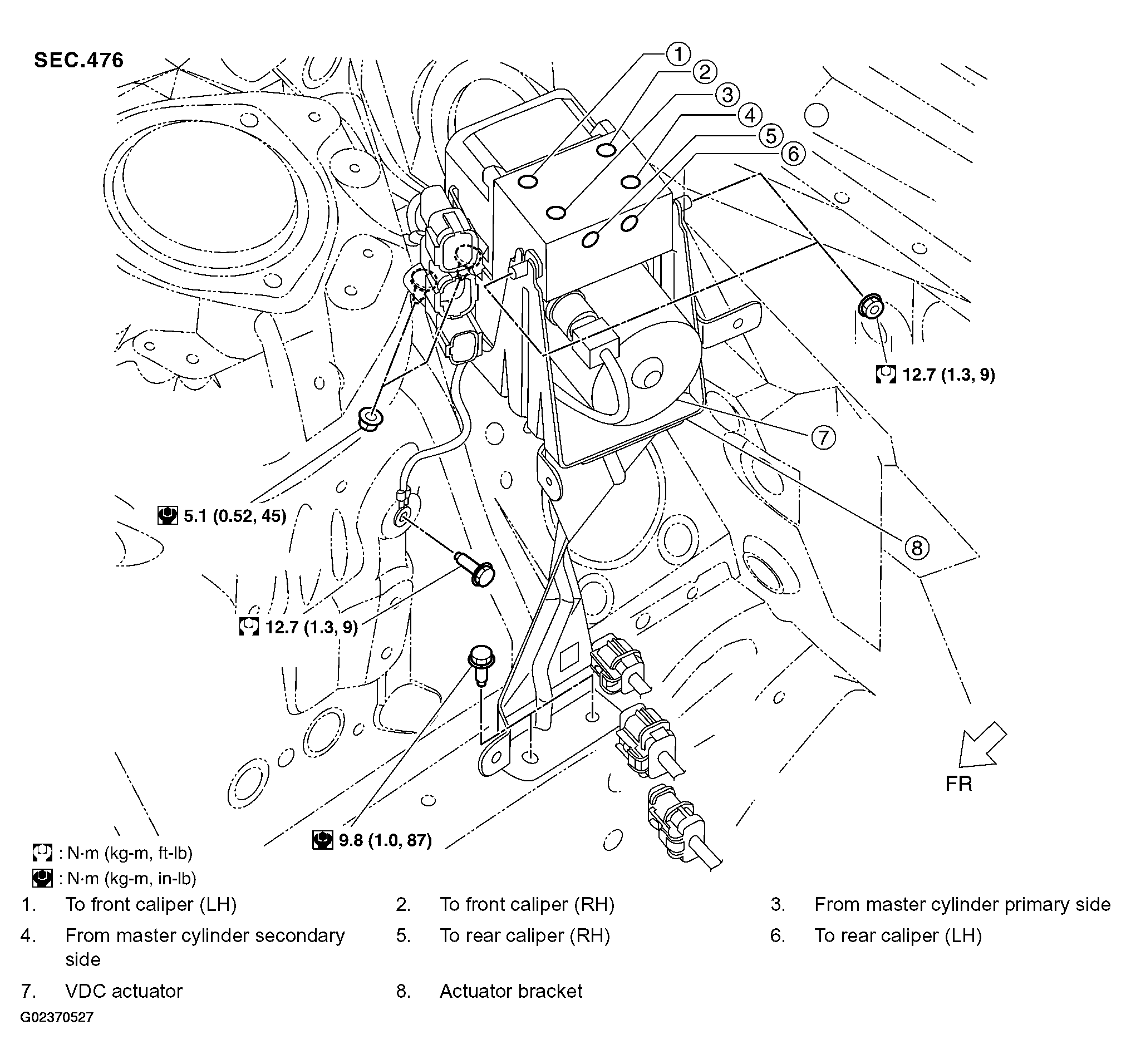

Fig 1: VDC/TCS/ABS Actuator Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
