Power Seat: Schematic

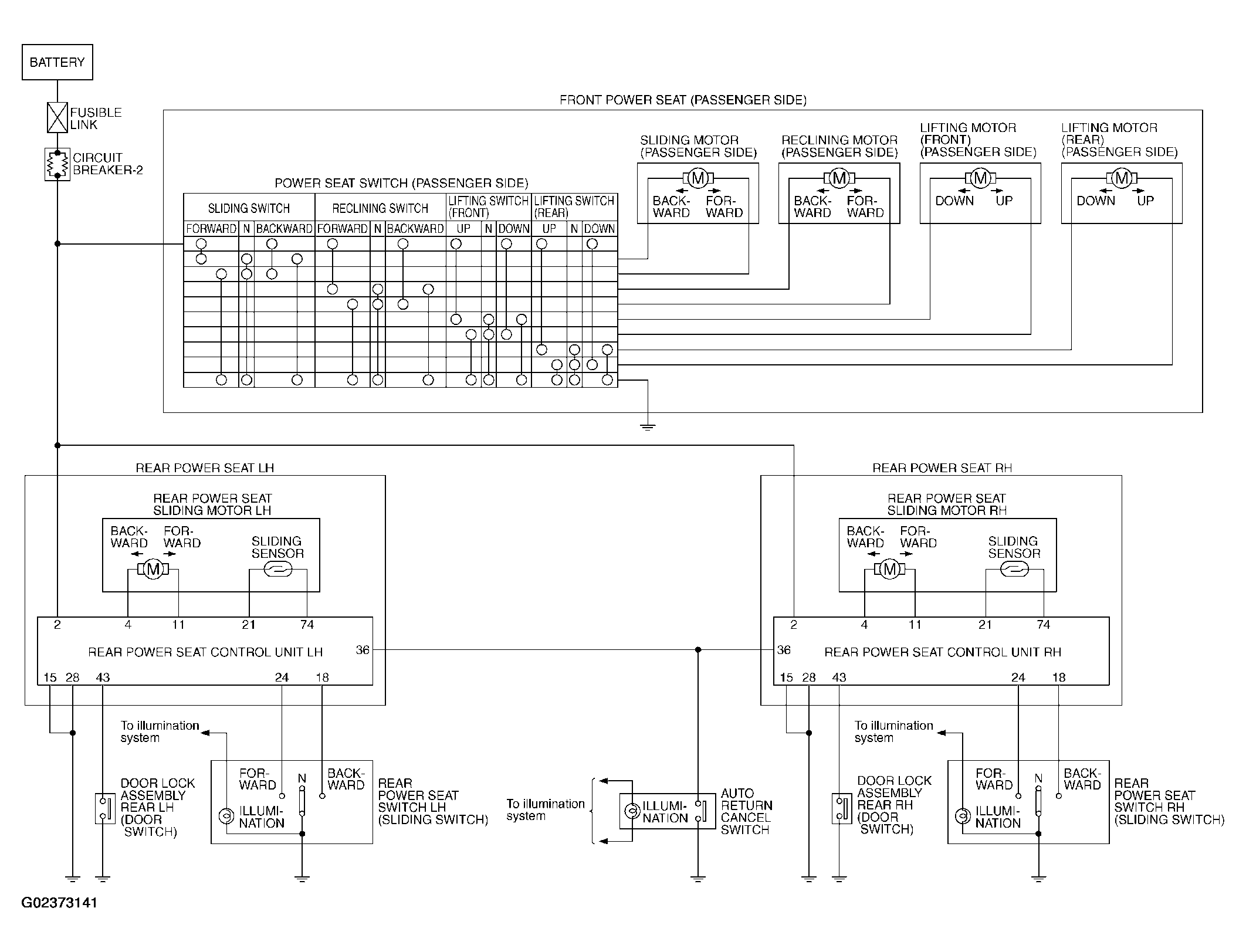

Fig 1: Power Seat - Schematic

G02373141

Courtesy of NISSAN MOTOR CO., U.S.A.
