Climate Controlled Seat: Schematic

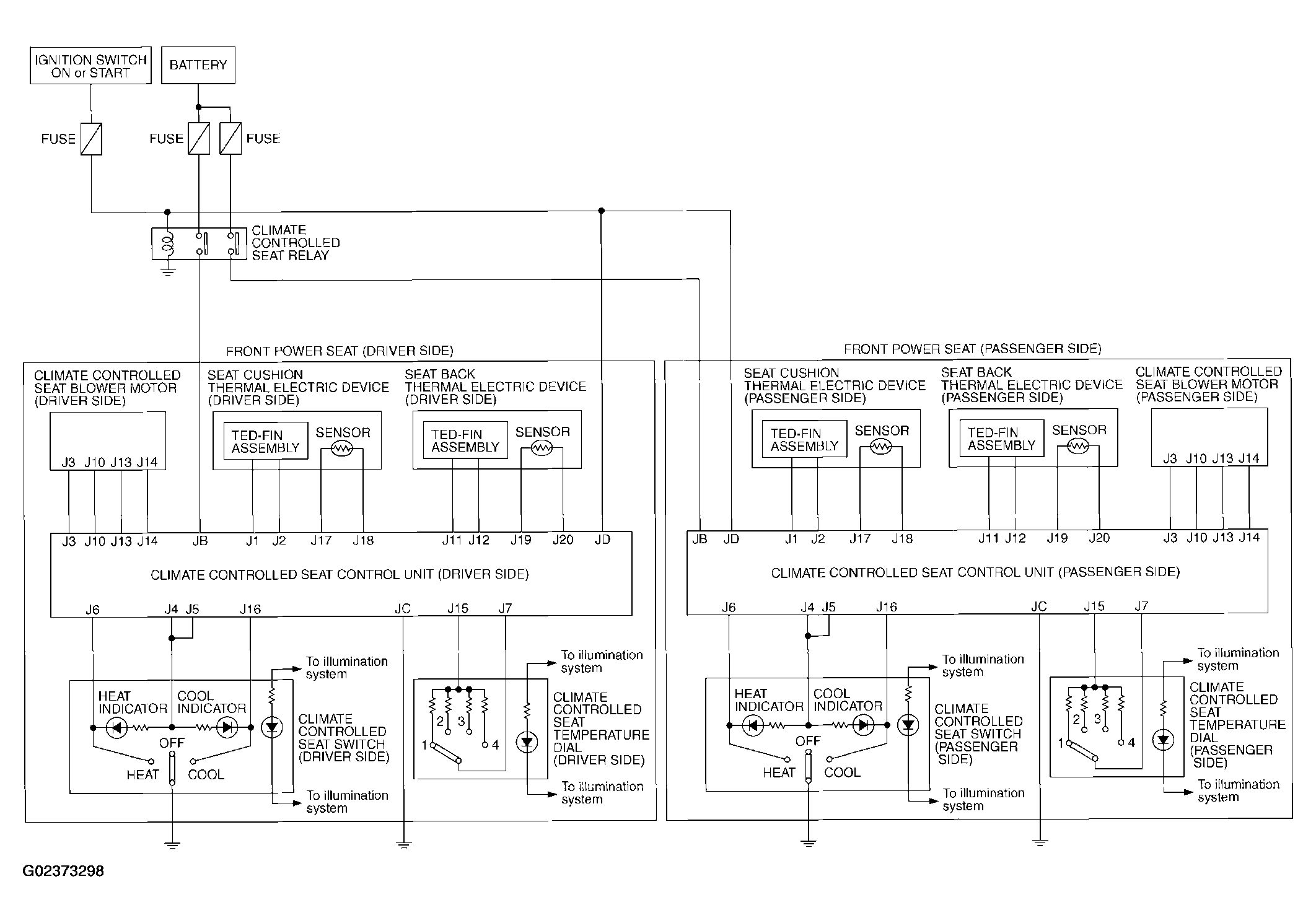

Fig 1: Climate Controlled Seat - Schematic

G02373298

Courtesy of NISSAN MOTOR CO., U.S.A.
