Terminals and Reference Values for BCM

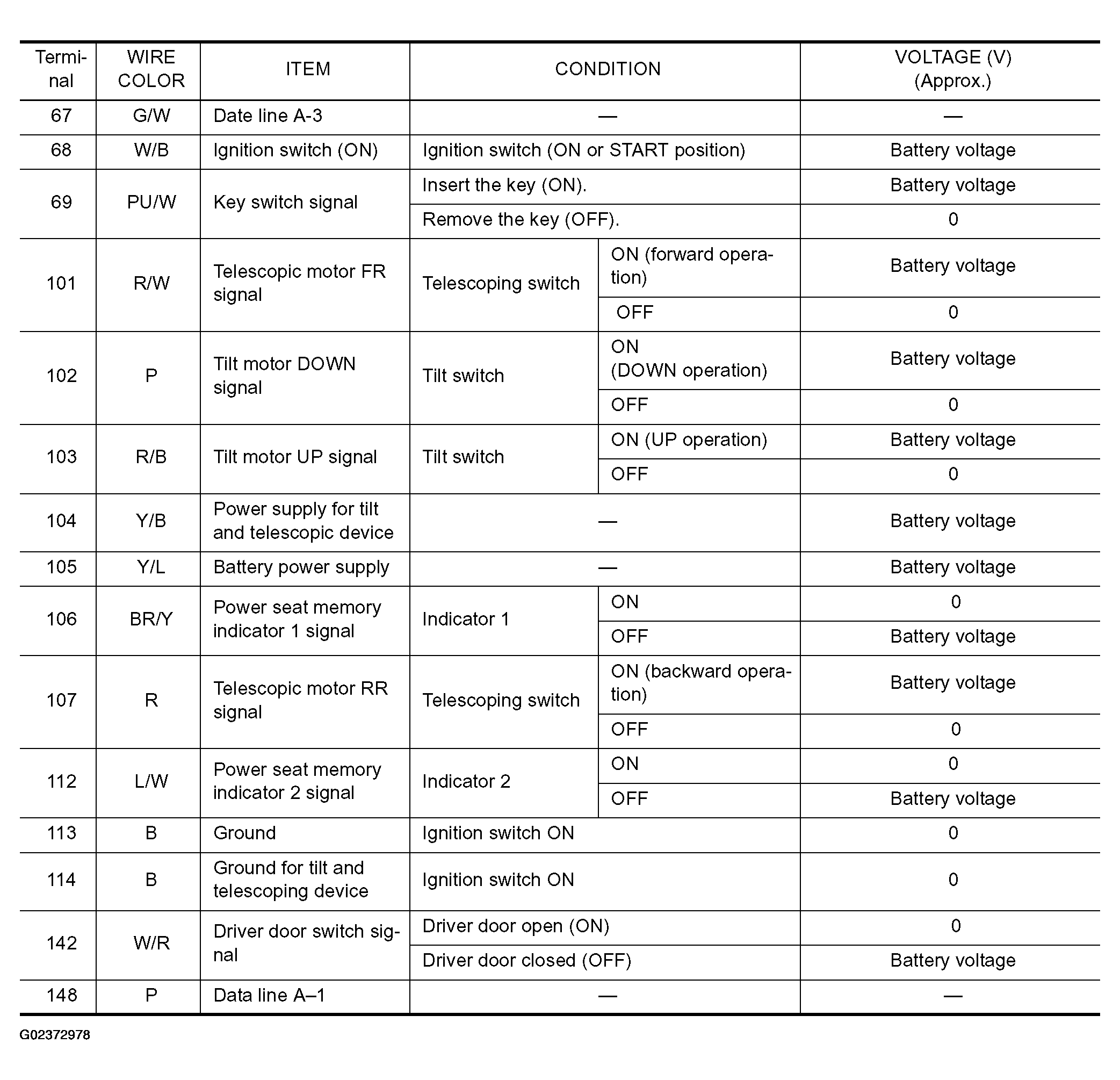

Fig 1: Terminals And Reference Values Chart For BCM (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

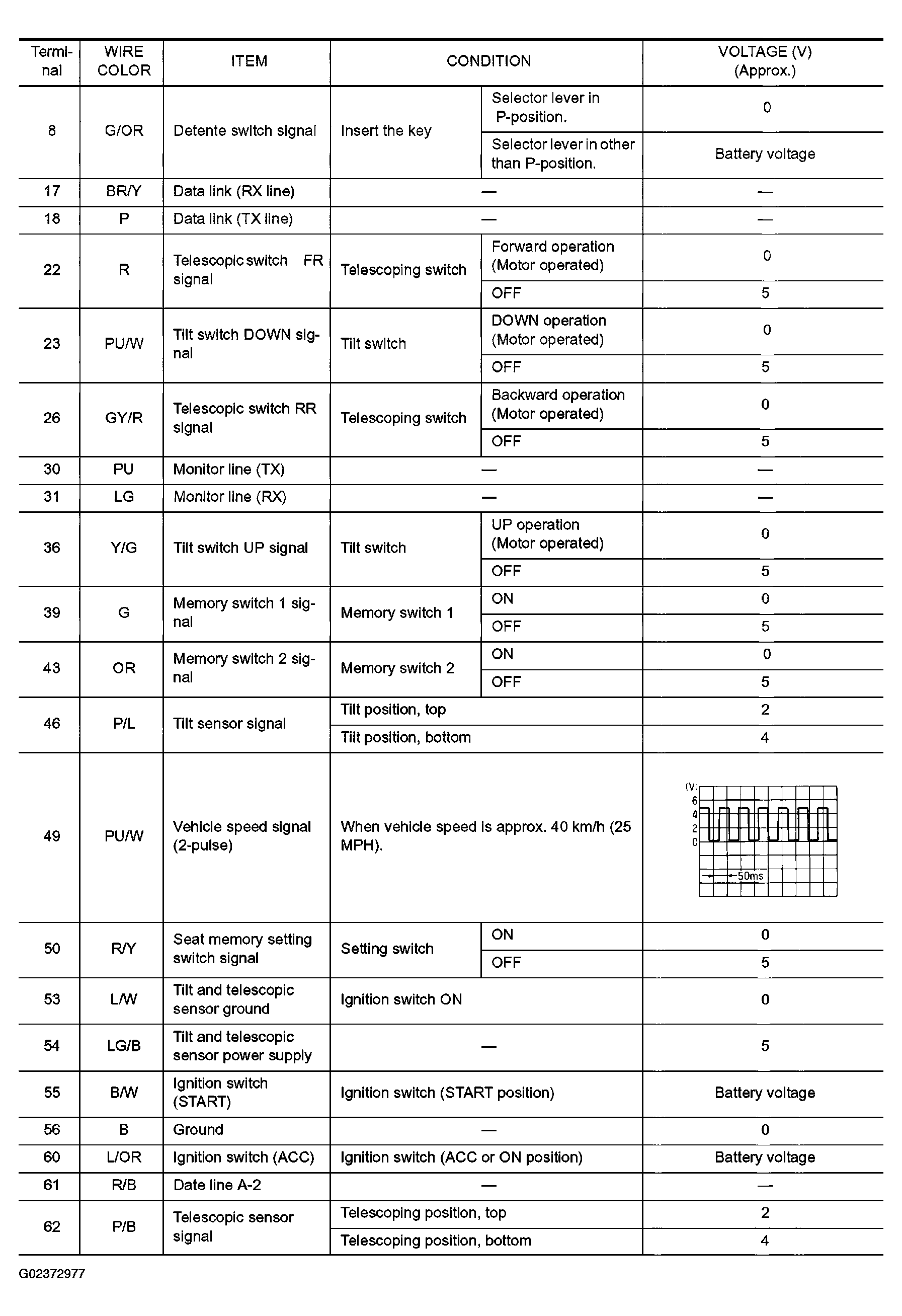

Fig 2: Terminals And Reference Values Chart For BCM (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
