Telescopic Sensor Circuit Inspection

Check the operation malfunction caused by steering wheel tilt mechanism deformation or parts are loose.

OK or NG

1. OK: GO TO 2.
2. NG: Repair the malfunctioning part and check again.

With CONSULT-II

Operate the telescopic switch with "TELESCO SEN" on the DATA MONITOR to check that the voltage changes.

Fig 1: Telescopic Switch Connector Terminals Voltage Reference Chart (With Consult-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

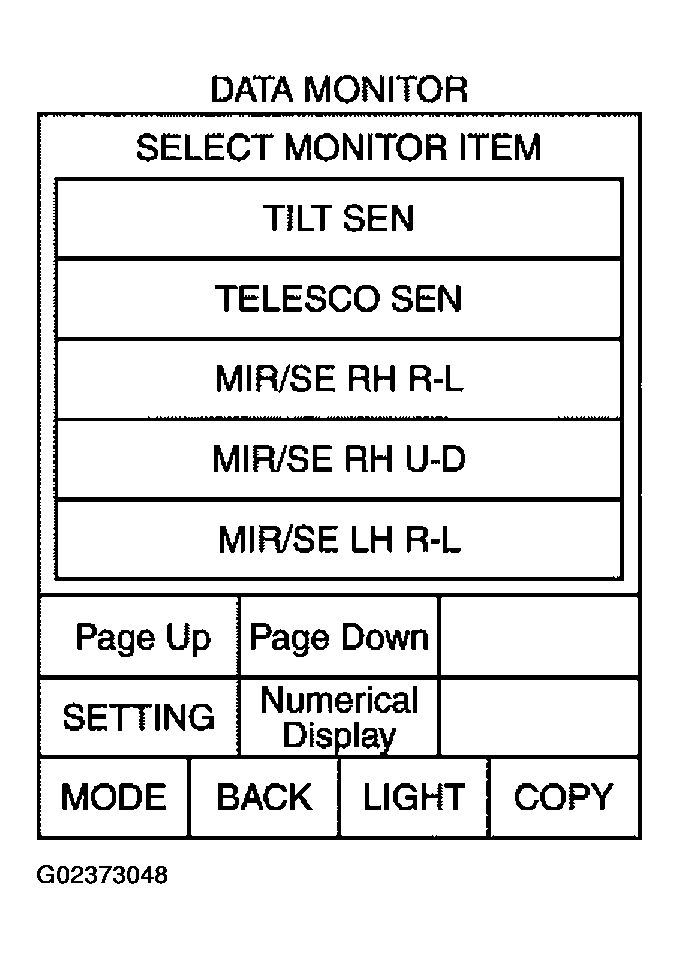

Fig 2: Checking Function - Telesco Sen (With Consult-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Check voltage between BCM connector and ground.
   Fig 3: BCM Connector Terminals Voltage Reference Chart (Without Consult-II)

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 4: Checking Steering Wheel Tilt Mechanism (Without Consult-II)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: System is OK.
2. NG: GO TO 3.

1. Disconnect BCM connector and telescopic sensor connector.
2. Check continuity harness between BCM connector M4 terminals 53 (L/W), 54 (LG/B), 62 (P/B) and telescopic sensor connector M59 terminals 1 (LG/B), 2 (P/B), 3 (L/W).
   1. 53 (L/W) - 3 (L/W): Continuity should exist.
   2. 54 (LG/B) - 1 (LG/B): Continuity should exist.
   3. 62 (P/B) - 2 (P/B): Continuity should exist.
3. Check continuity harness between BCM connector M4 terminals 53 (L/W), 54 (LG/B), 62 (P/B) and ground.
   1. 53 (L/W) - Ground: Continuity should not exist.
   2. 54 (LG/B) - Ground: Continuity should not exist.
   3. 62 (P/B) - Ground: Continuity should not exist.
   Fig 5: Checking Harness Continuity

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace telescopic sensor.
2. NG: Repair or replace harness between BCM and telescopic sensor.
