Automatic Operation

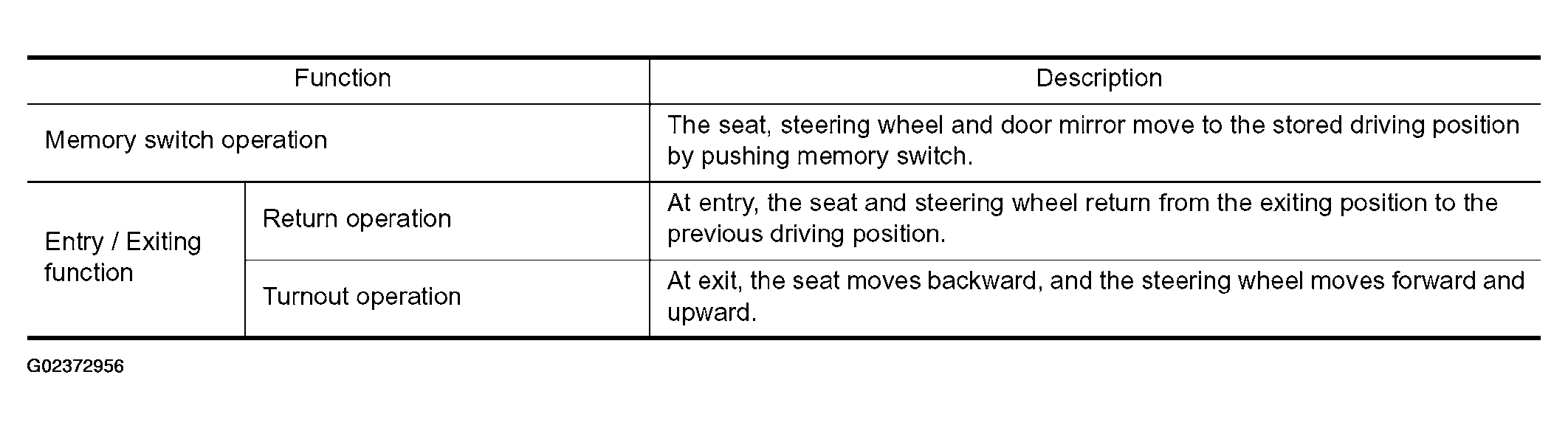

Fig 1: Automatic Drive Positioner - Automatic Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)-->OFF (close)-->ON (open), the Entry / exiting function becomes possible.

Fig 2: Automatic Drive Positioner - Automatic Operation Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: During automatic operation, if the ignition switch is turned ON-->START, the automatic operation is suspended. When the ignition switch returns to ON, it resumes.
