Seat Memory Switch Circuit Inspection

With CONSULT-II

With "SET SW, MEMORY SW1 MEMORY SW2" on the DATA MONITOR, operate the switch to check ON/OFF operation.

Fig 1: Seat Memory Switch Operation Chart (With CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

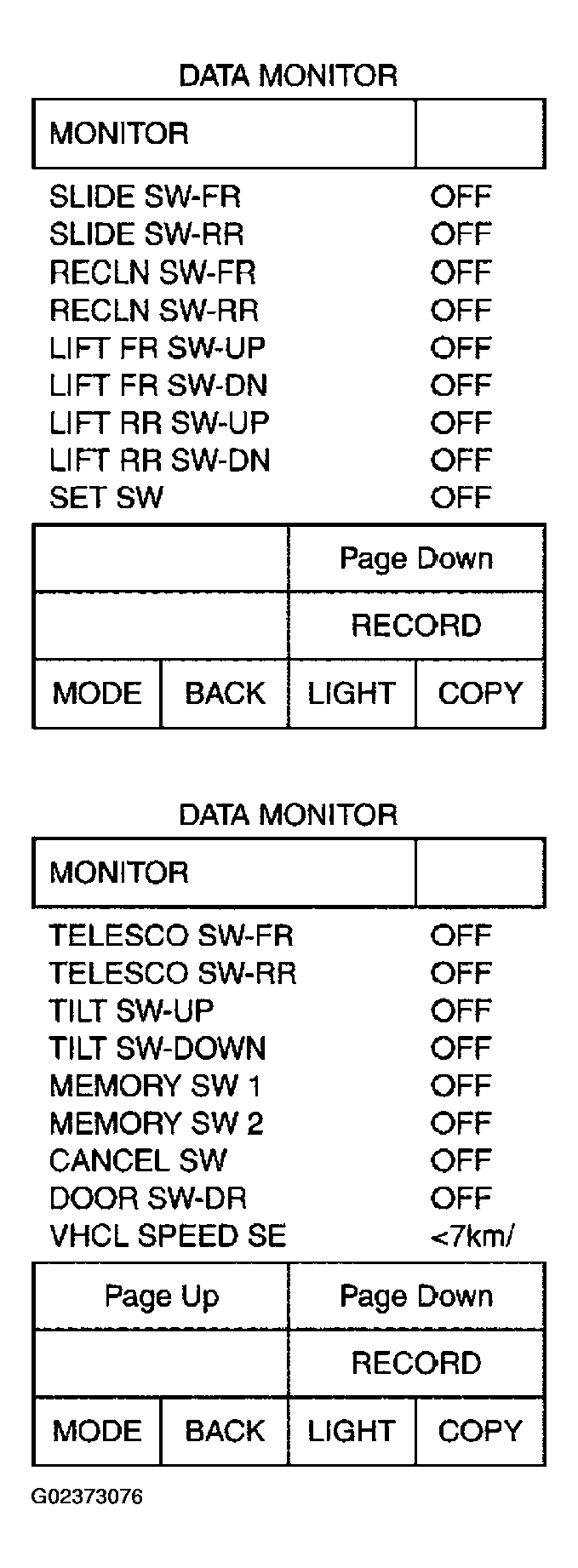

Fig 2: Checking Function - SET SW, MEMORY SW1 MEMORY SW2 (With CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Carry out "switch monitor" in the on-board diagnosis function, and operate "Setting switch, memory switch 1, memory switch 2" to check. Refer to "SWITCH MONITOR ".

OK or NG

1. OK: System is OK.
2. NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect seat memory switch connector.
3. Check continuity between seat memory switch connector and ground.
   Fig 3: Seat Memory Switch Connector Terminals Continuity Reference Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

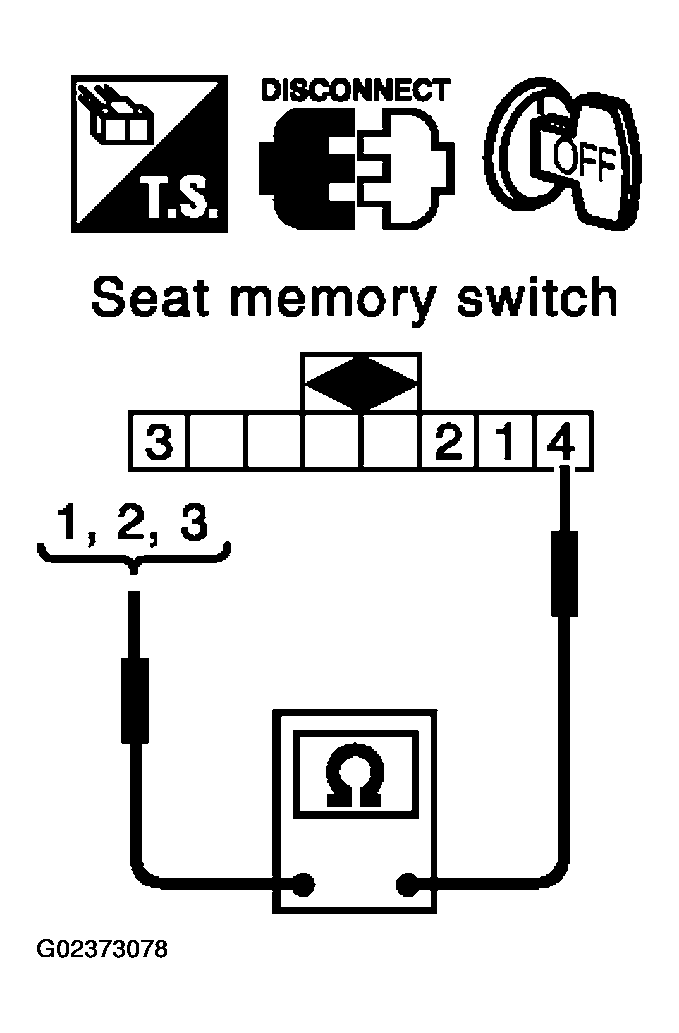

   Fig 4: Checking Seat Memory Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Replace seat memory switch.

1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminals 39 (G), 43 (OR), 50 (R/Y) and seat memory switch connector D3 terminals 1 (G), 2 (OR), 3 (R/Y).
   1. 39 (G) - 1 (G): Continuity should exist.
   2. 43 (OR) - 2 (OR): Continuity should exist.
   3. 50 (R/Y) - 3 (R/Y): Continuity should exist.
3. Check continuity between BCM connector M4 terminals 39 (G), 43 (OR), 50 (R/Y) and ground.
   1. 39 (G) - Ground: Continuity should not exist.
   2. 43 (OR) - Ground: Continuity should not exist.
   3. 50 (R/Y) - Ground: Continuity should not exist.
   Fig 5: Checking Harness Continuity

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 4.
2. NG: Repair or replace harness between BCM and seat memory switch.

Check continuity at harness between seat memory switch D3 terminal 4 (B) and ground.

1. 4 (B) - Ground: Continuity should exist.

OK or NG

1. OK: Replace BCM.
2. NG: Repair or replace harness between seat memory switch and ground.

Fig 6: Checking Seat Memory Switch Ground Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
