Detention Switch Circuit Inspection

CHECK FUNCTION

With CONSULT-II

Check that when the A/T selector lever is in P-position, "DETENT SW" on the DATA MONITOR becomes ON.

DETENTION SWITCH OPERATION

Monitor item [OPERATION or UNIT]		Contents
DETENT SW	"ON/OFF"	The selector lever position "P position (ON)/other than P position (OFF)" judged from the detente switch signal is displayed.

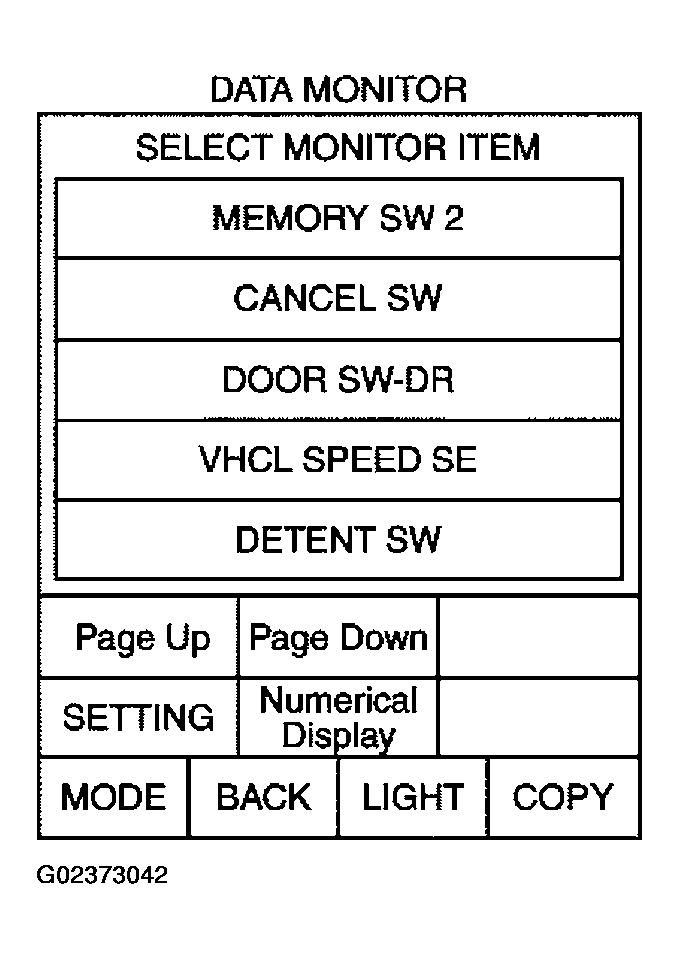

Fig 1: Checking Function - Detent SW

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Carry out "SWITCH MONITOR" in the self-diagnosis function, and operate the A/T selector lever to check. Refer to "SWITCH MONITOR ".

OK or NG

OK: System is OK.
NG: GO TO 2.

CHECK DETENTION SWITCH POWER SUPPLY CIRCUIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect A/T device (detention switch) connector and key switch and key lock solenoid connector.
3. Check continuity harness between A/T device (detention switch) connector M97 terminal 6 (PU/W) and key switch and key lock solenoid connector M64 terminal 4 (PU/W).
  1. 6 (PU/W) - 4 (PU/W): Continuity should exist.
4. Check continuity harness between A/T device (detention switch) connector M97 terminal 6 (PU/W) and ground.
  1. 6 (PU/W) - Ground: Continuity should not exist.
OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace harness between A/T device (detention switch) and key switch and key lock solenoid.
Fig 2: Checking Detention Switch Power Supply Circuit Harness
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK DETENTION SWITCH
Check continuity between A/T device (detention switch) connector M97 terminal 6 and 7.

Fig 3: A/T Device (Detention Switch) Connector Terminals Continuity Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Checking Detention Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 4.
2. NG: Replace detention switch.
CHECK DETENTION SWITCH SIGNAL HARNESS
1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 8 (G/OR) and A/T device (detention switch) connector M97 terminal 7 (G/OR).
  1. 8 (G/OR) - 7(G/OR): Continuity should exist.
3. Check continuity harness between BCM connector M4 terminal 8 (G/OR) and ground.
  1. 8 (G/OR) - Ground: Continuity should not exist.
OK or NG
1. OK: Replace BCM.
2. NG: Repair or replace harness between BCM and A/T device (detention switch).
