Terminal and Reference Value for Trunk Closure Control Unit

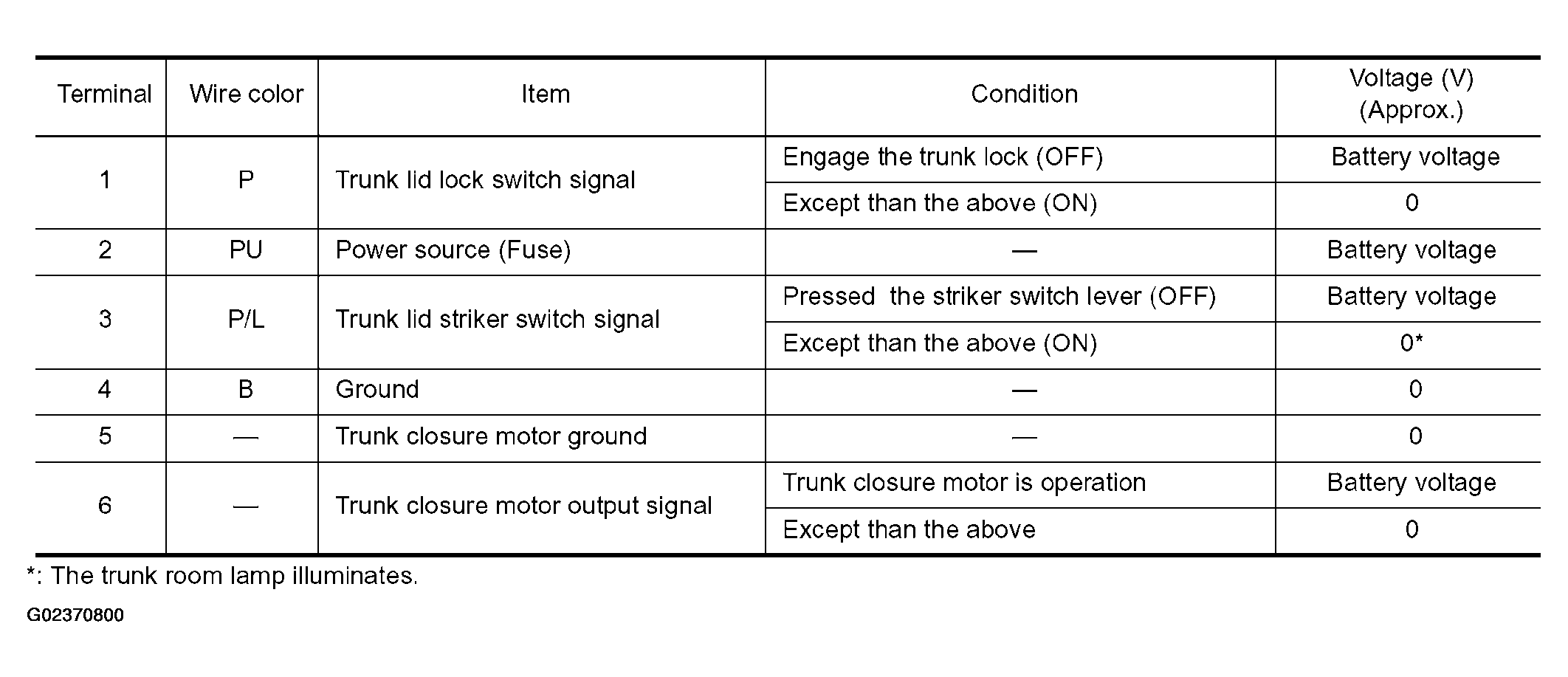

Fig 1: Trunk Closure Control Unit Terminal And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
