Check Trunk Lid Opener Cancel Switch

1. Turn ignition switch OFF.
2. Disconnect trunk lid opener cancel switch connector.
3. Check voltage between trunk lid opener cancel switch connector M117 terminal 1 and ground.
   1. 1 (G) - Ground: Battery voltage.

OK or NG

1. OK: GO TO 2.
2. NG: Check the following.
   • Trunk lid opener relay
   • Harness for open or short between trunk lid opener cancel switch and trunk lid opener relay

Fig 1: Checking Voltage Between Trunk Lid Opener Cancel Switch Connector M117 Terminal 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between trunk lid opener cancel switch terminals 1and 2.

Fig 2: Connector Terminals Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Replace trunk lid opener cancel switch.

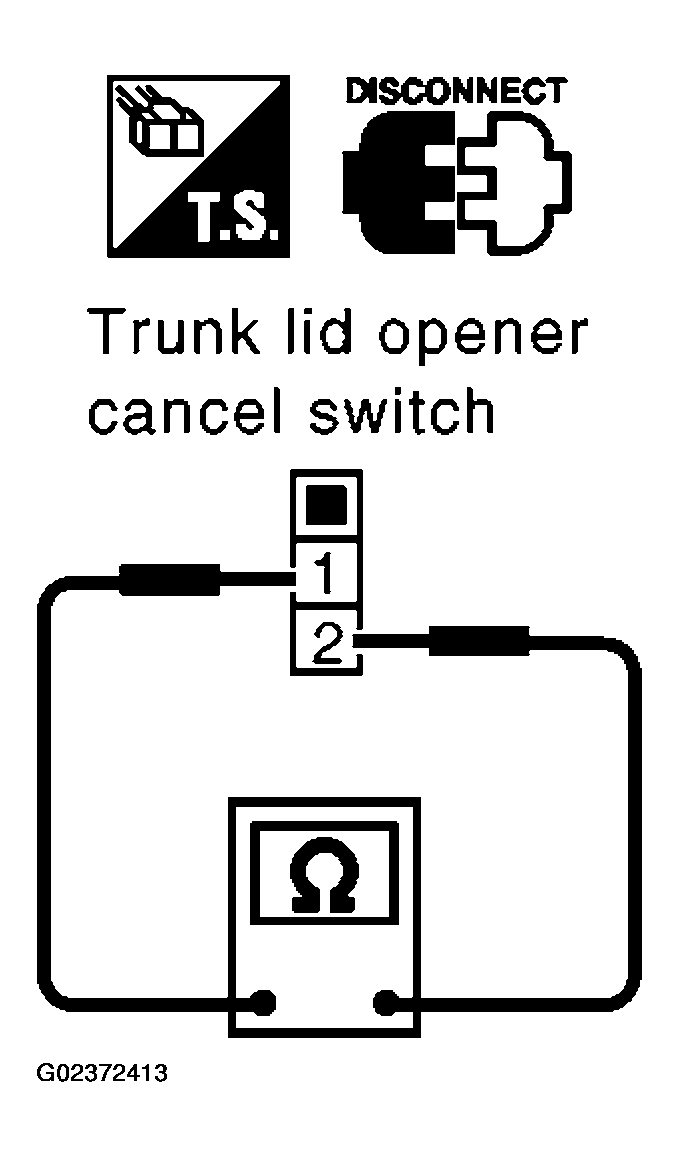

Fig 3: Checking Continuity Between Trunk Lid Opener Cancel Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 109 and trunk lid opener cancel switch connector M117 terminal 2.
   1. 109 (LG) - 2 (LG): Continuity should exist.
3. Check continuity between trunk lid opener cancel switch connector M117 terminal 2 and ground.
   1. 2 (LG) - Ground: Continuity should not exist.

OK or NG

1. OK: Trunk lid opener cancel switch circuit is OK.
2. NG: Repair or replace harness.

Fig 4: Checking Harness Continuity

Courtesy of NISSAN MOTOR CO., U.S.A.
