Diagnostic Items Description

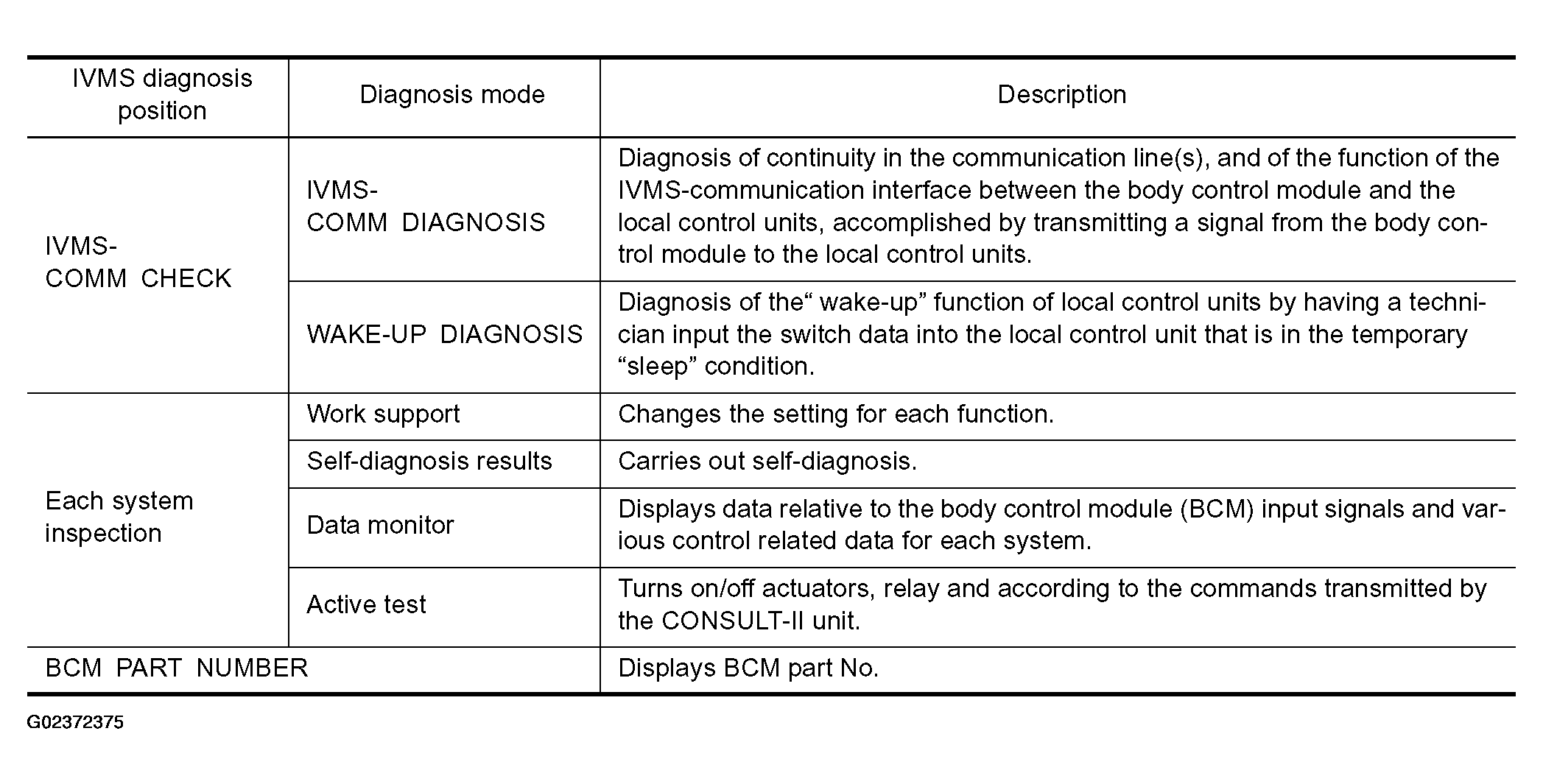

Fig 1: Diagnostic Items Description Chart
G02372375Courtesy of NISSAN MOTOR CO., U.S.A.
