Symptom Chart

• Always check the "Work Flow" before troubleshooting. Refer to "WORK FLOW ".
• Before carrying out the inspection on the following table, carry out the preliminary check.

Refer to "PRELIMINARY CHECK ".

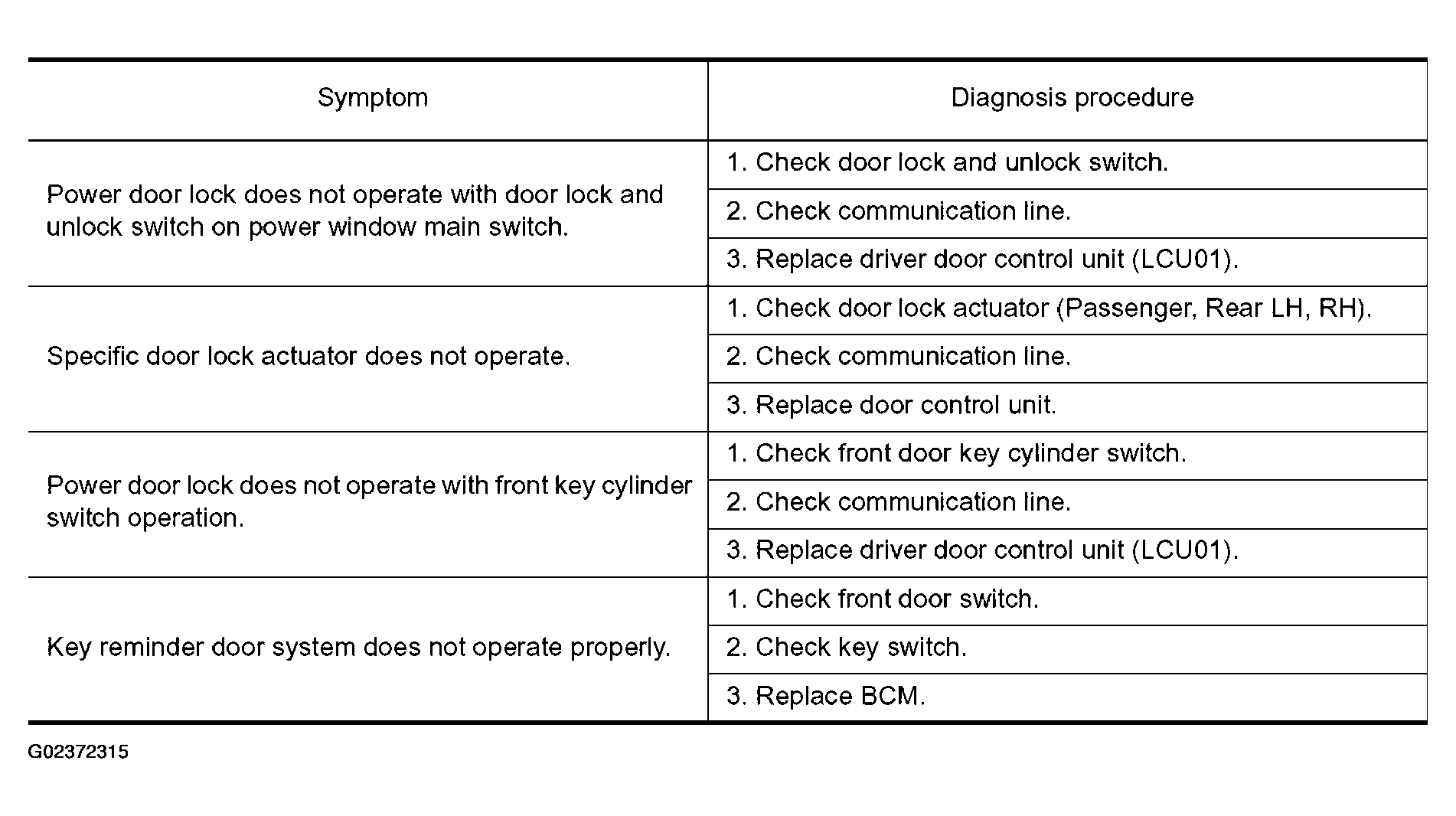

Fig 1: Symptom Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
