Body, Lock & Security System
>>
Electronic Key System
>>
Work Flow
Work Flow

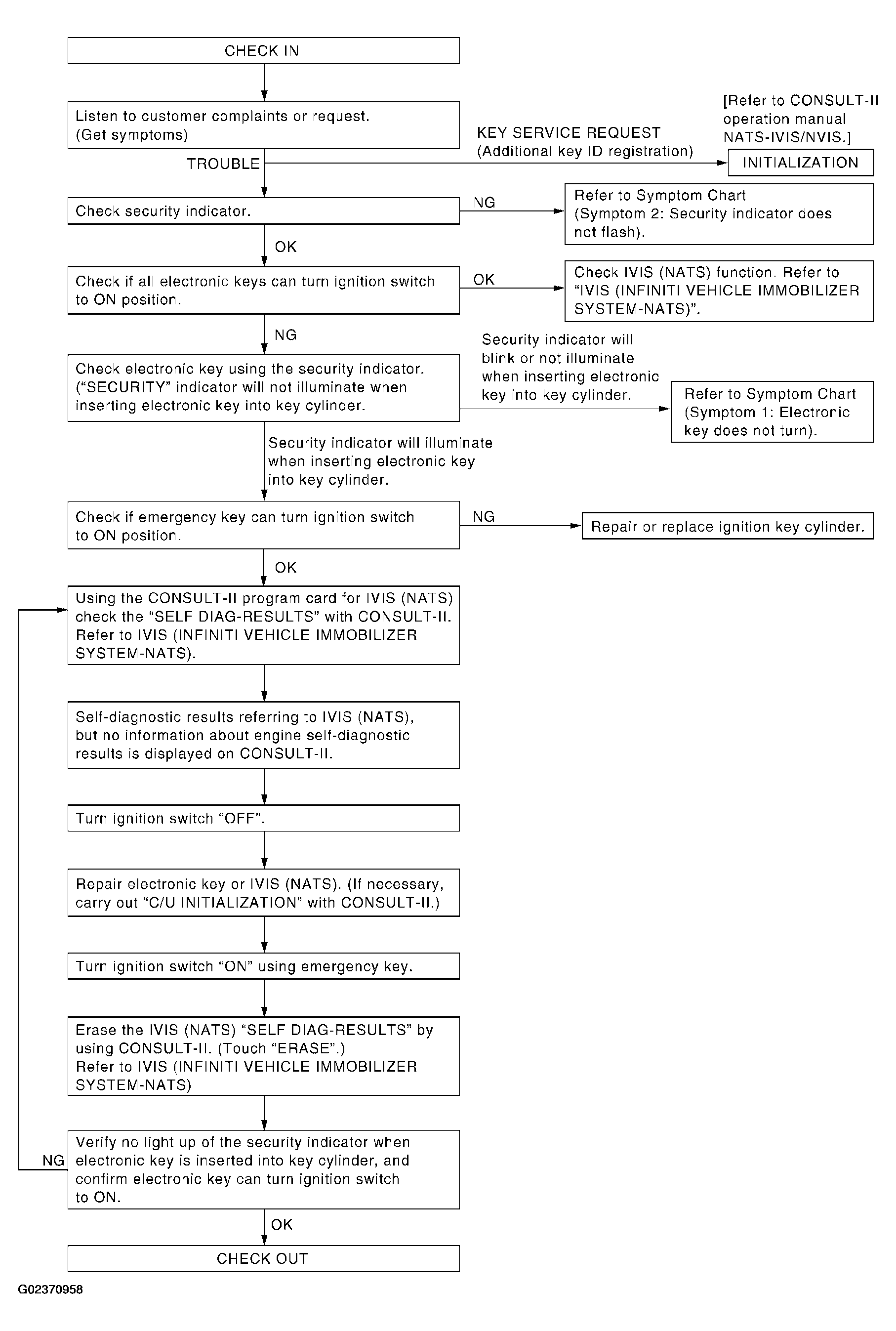

Fig 1: Electronic Key System Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
