HOODLEDGE (Partial Replacement)
HOODLEDGE (Partial Replacement)
Work after radiator core support has been removed.

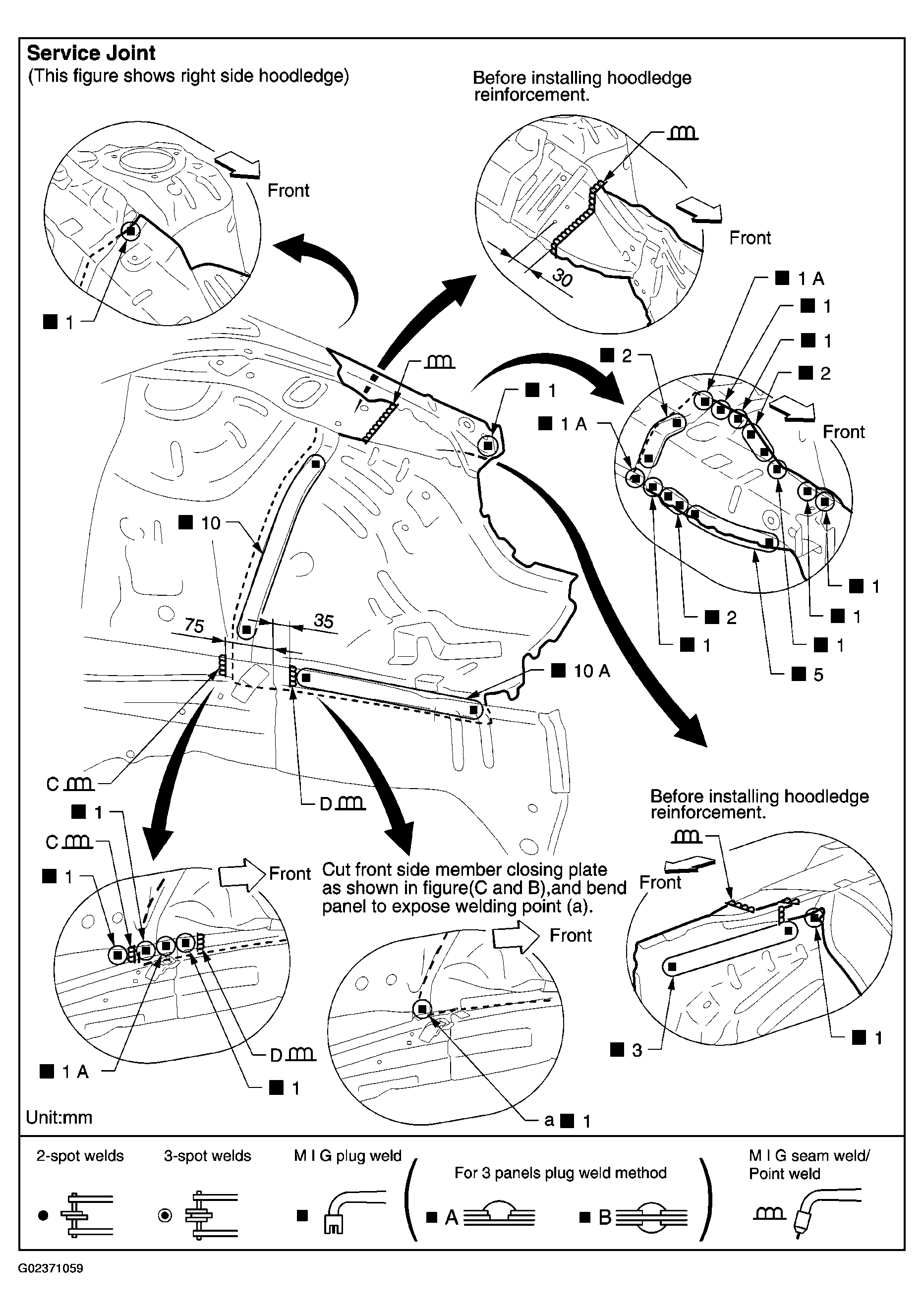

Fig 1: Identifying Hoodledge Service Joints (Partial Replacement)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
