Front Side Member

Work after hoodledge and radiator core support have been removed.

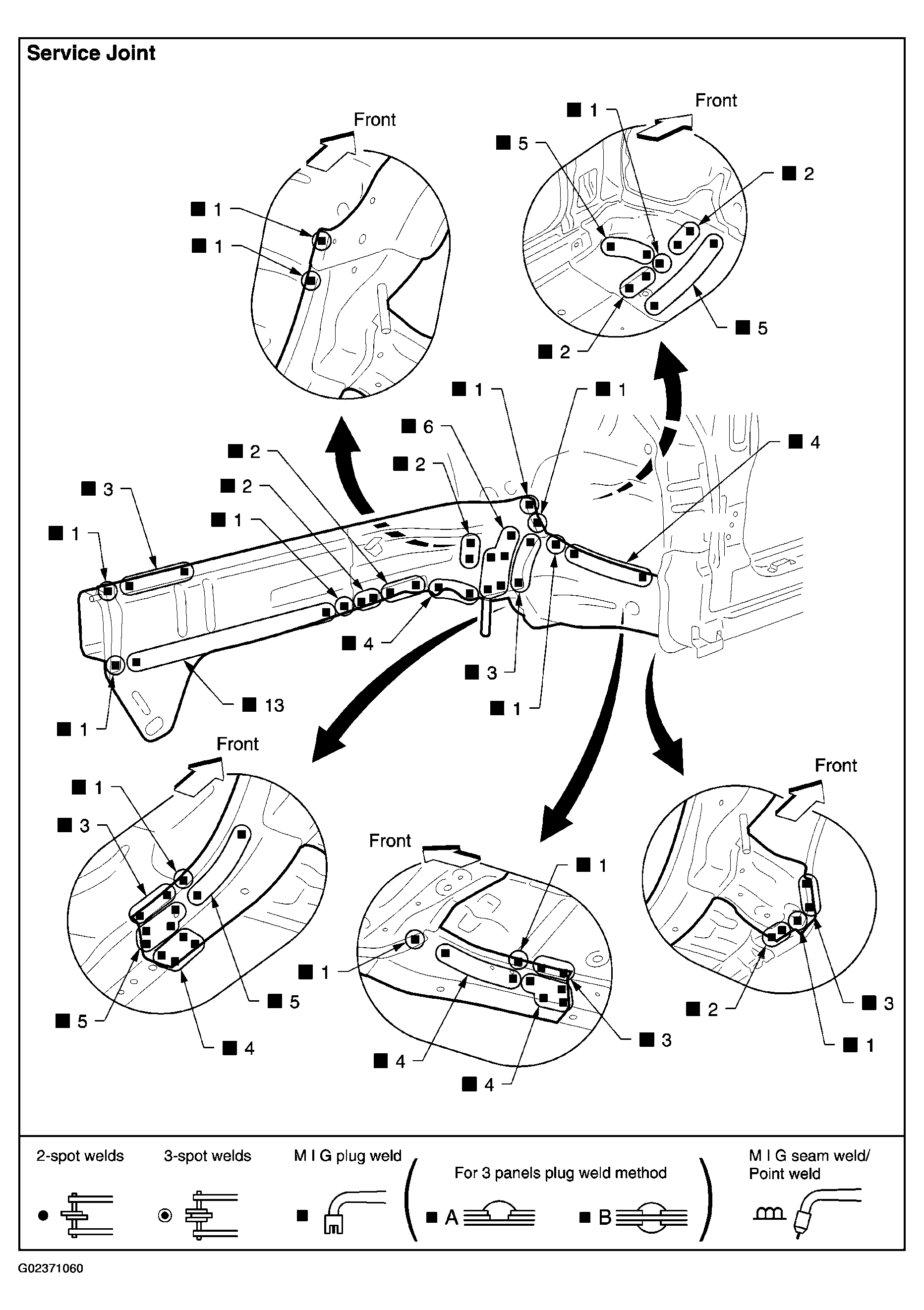

Fig 1: Identifying Front Side Member Service Joints
Courtesy of NISSAN MOTOR CO., U.S.A.
