Engine Compartment: Measurement

Figures marked with a (*) indicate symmetrically identical dimensions on both right and left hand sides of the vehicle.

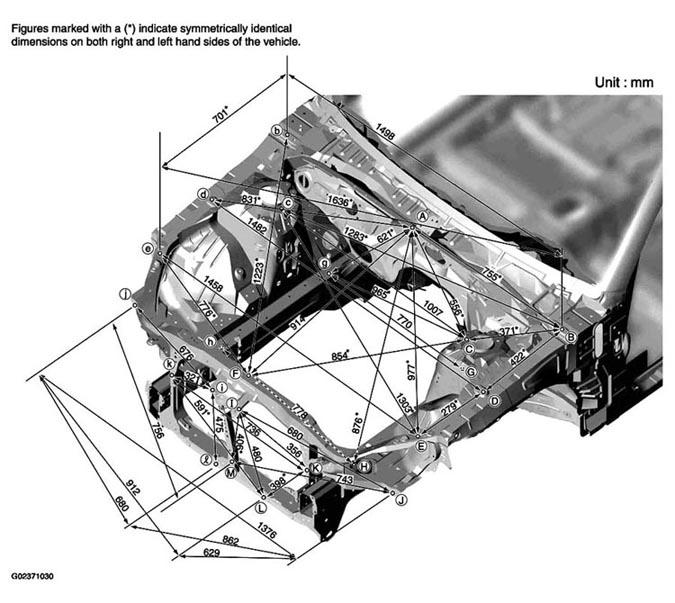

Fig 1: Identifying Engine Compartment Measurement Dimensions

Courtesy of NISSAN MOTOR CO., U.S.A.
