Auto Trunk System: Schematic

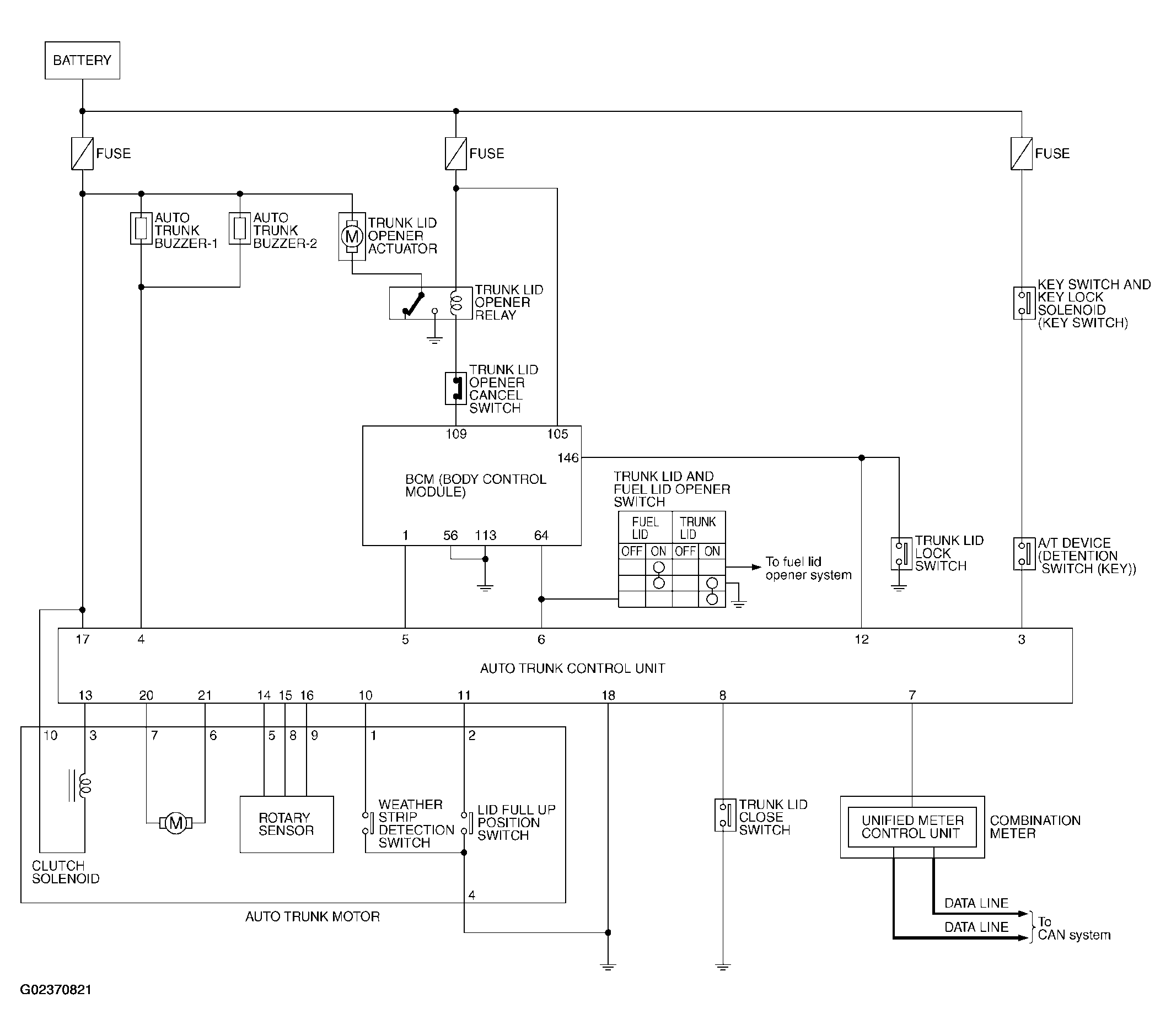

Fig 1: Auto Trunk System - Schematic

G02370821

Courtesy of NISSAN MOTOR CO., U.S.A.
