Component Installation Location

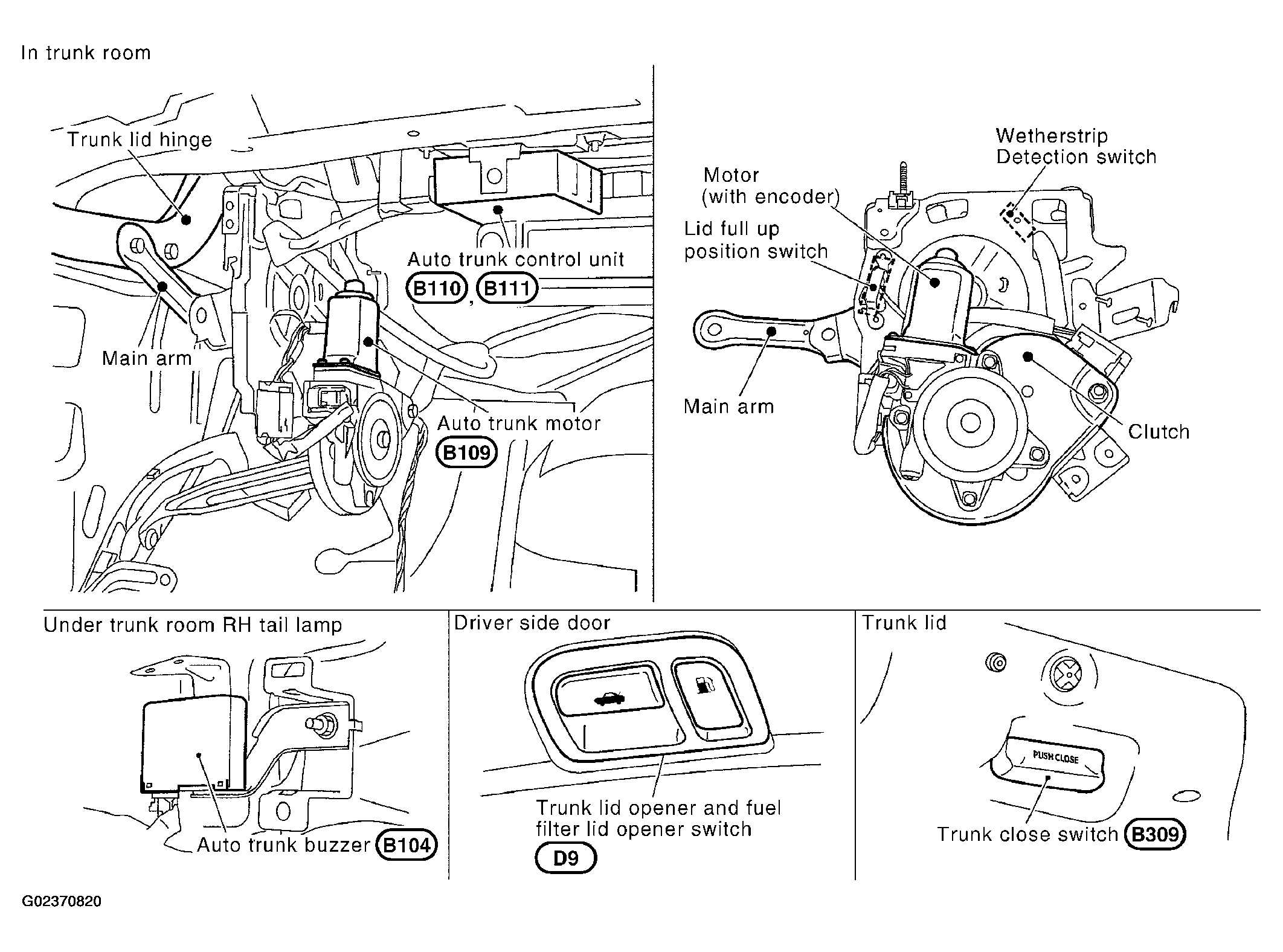

Fig 1: Identifying Auto Trunk System Component Installation Location
G02370820Courtesy of NISSAN MOTOR CO., U.S.A.
