Terminals and Reference Value for Rear View Camera Control Unit
Terminals and Reference Value for Rear View Camera Control Unit

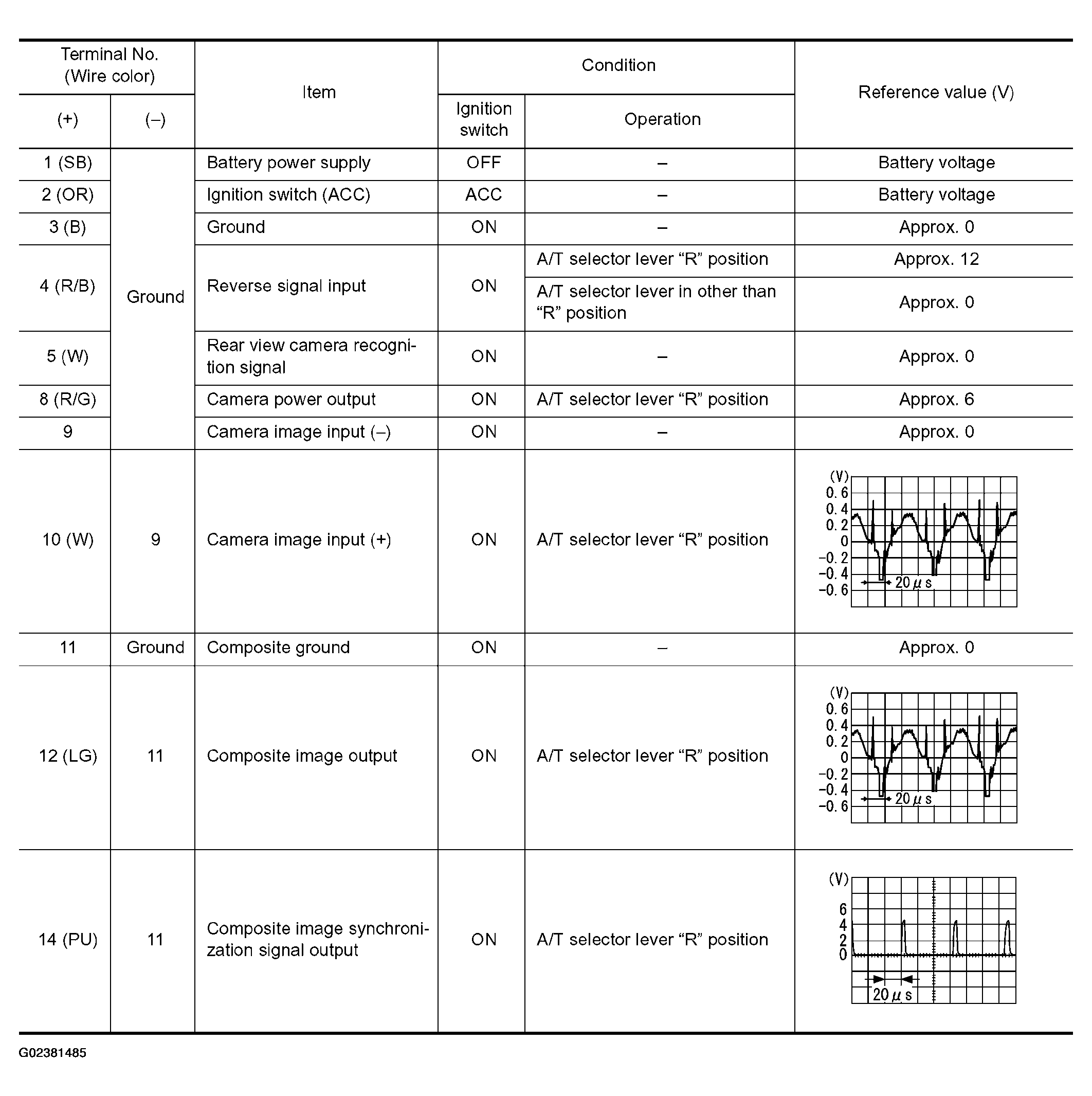

Fig 1: Terminals And Reference Value For Rear View Camera Control Unit Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
