Consult-II Basic Operation Procedure

With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector on vehicle side, and turn the ignition switch ON.

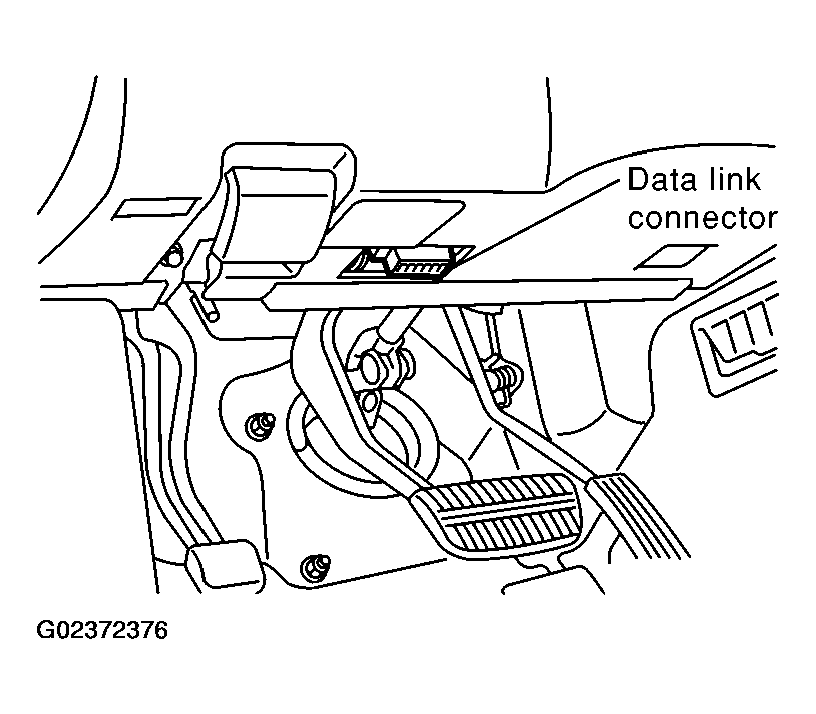

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: START - CONSULT II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS".
If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: IVMS - CONSULT II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
Touch "OK". If the selection is wrong, touch "CANCEL".

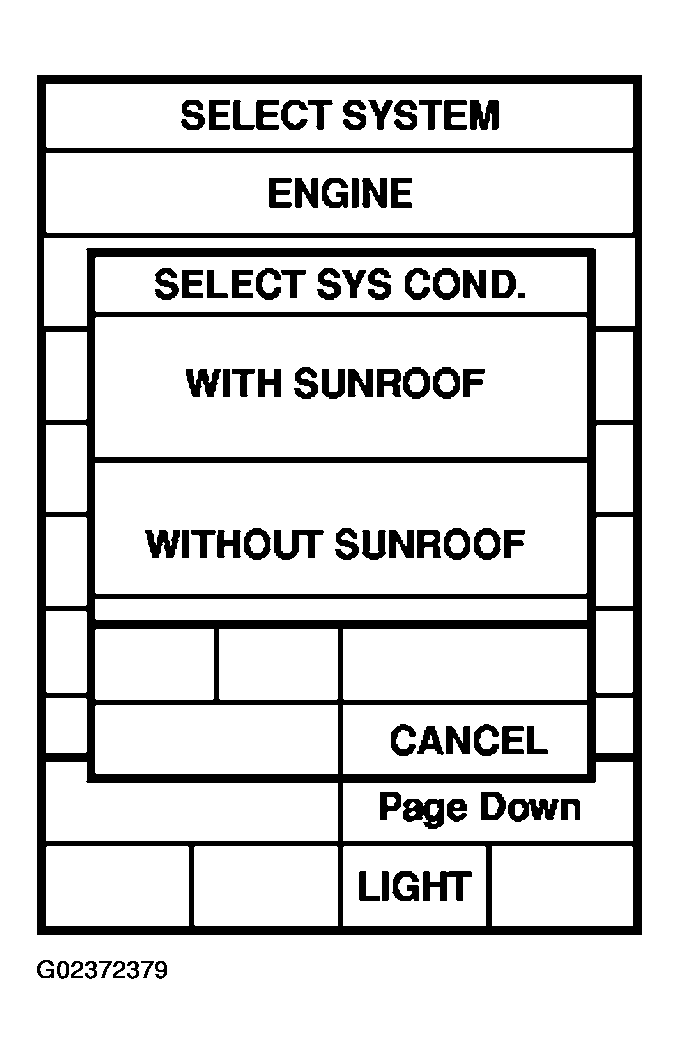

Fig 4: WITH SUNROOF - CONSULT II Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
