Control Rod Removal and Installation: Removal

  1. Disconnect lower lever of control device and control rod.
  2. Remove manual lever from transmission.
  3. Remove control rod from vehicle.

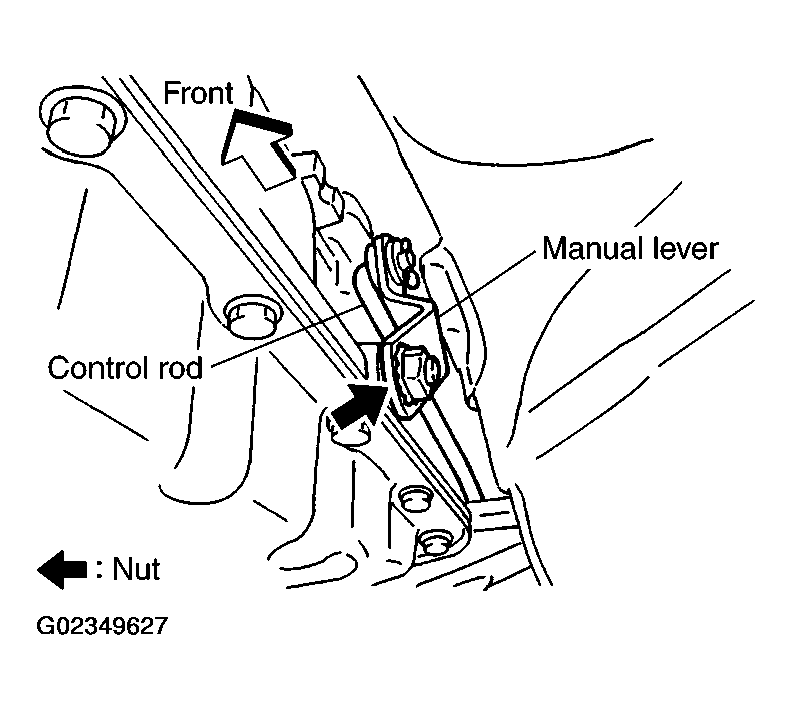

    Fig 1: Locating Control Rod And Manual Lever
    G02349627Courtesy of NISSAN MOTOR CO., U.S.A.
