Control Device Components (2WD Models)

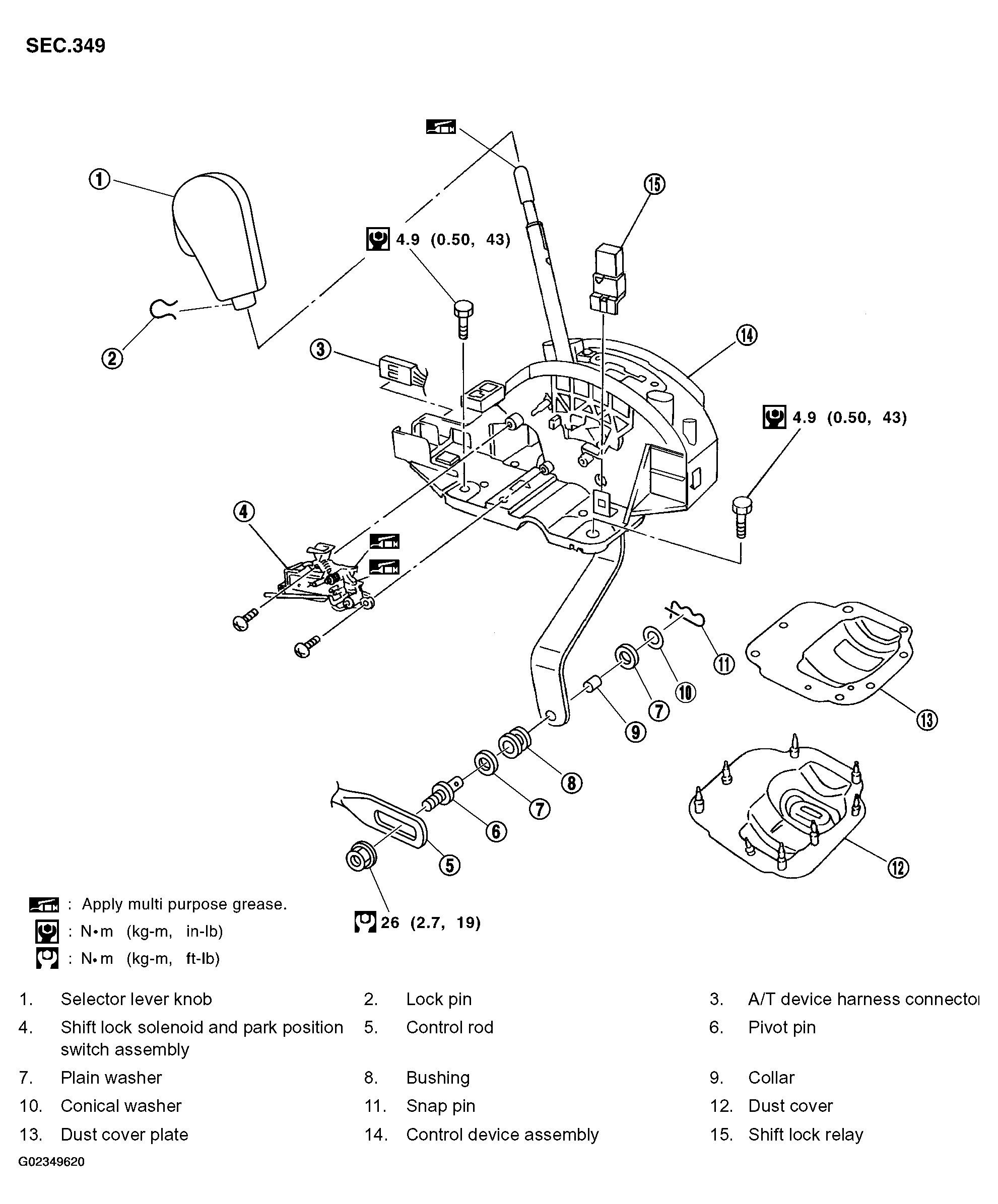

Fig 1: Exploded View Of Control Device Components(2WD Models)

G02349620

Courtesy of NISSAN MOTOR CO., U.S.A.
