AWD Models

  1. Loosen nut of control rod.
  2. Place PNP switch and selector lever in "P" position.
  3. While pressing lower lever toward rear of vehicle (in P position direction), tighten nut to specified torque. Refer to "CONTROL DEVICE COMPONENTS (AWD MODELS) ".
    CAUTION: Do not push the bracket.

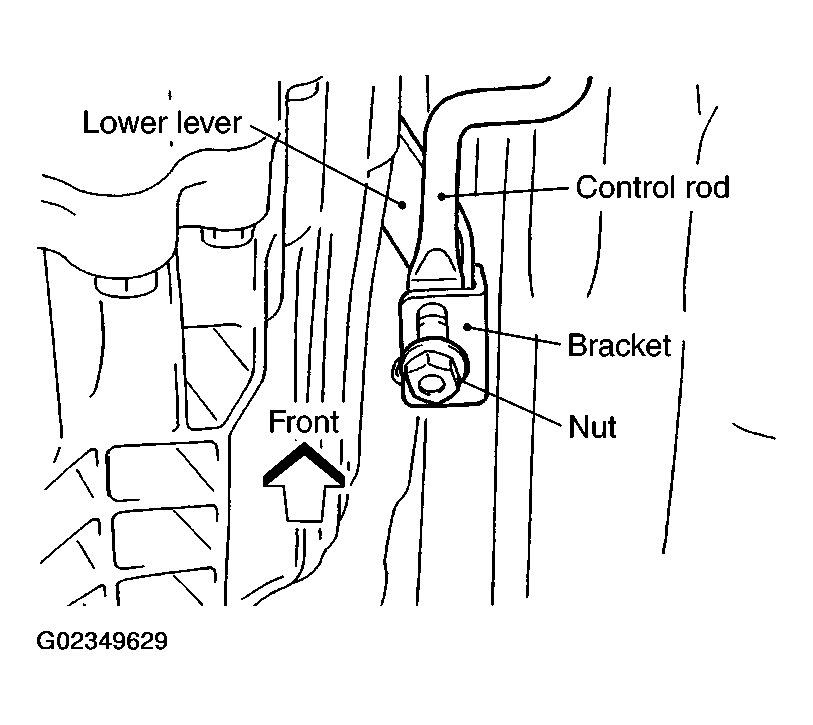

    Fig 1: Loosening Nut Of Control Rod
    G02349629Courtesy of NISSAN MOTOR CO., U.S.A.
