NOTE: If DTC "U1000" is displayed with other DTCs, first perform the trouble diagnosis for "DTC U1000 CAN COMMUNICATION LINE". Refer to DTC U1000 CAN COMMUNICATION LINE .

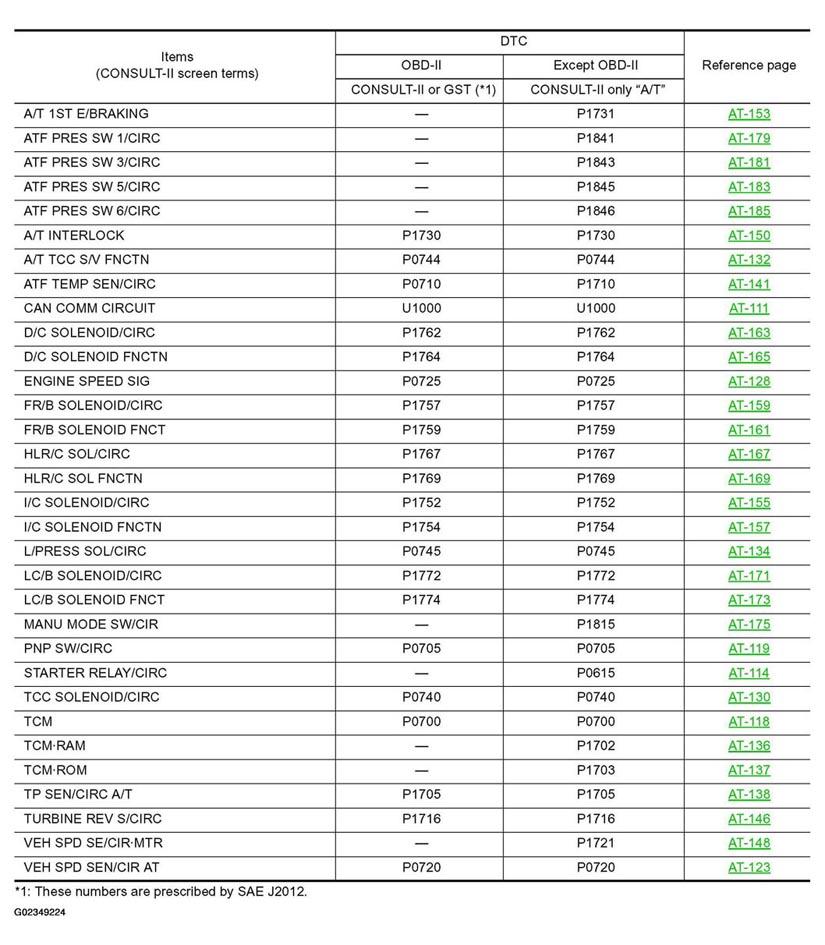

Fig 1: DTC U1000 CAN Communication Line Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
