A/T Device Inspection Table

Data are reference value and are measured between each terminal and ground.

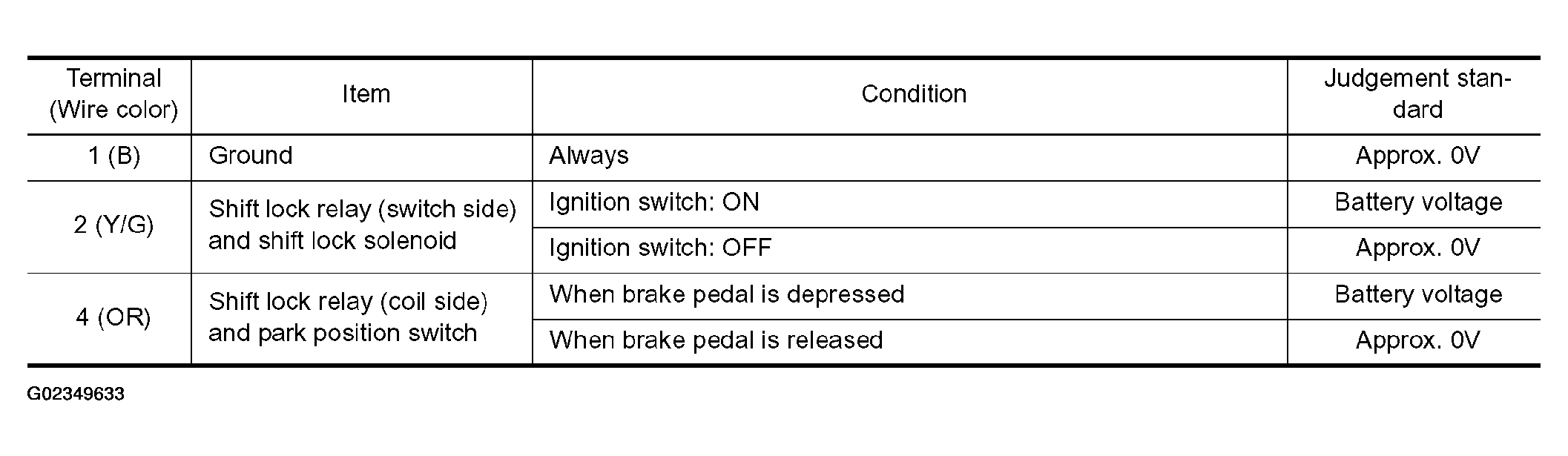

Fig 1: A/T Device Inspection Table
G02349633Courtesy of NISSAN MOTOR CO., U.S.A.
