Home >> Infiniti >> 2005 >> G35 x >> Repair and Diagnosis >> Transmission >> Automatic Transmission - Sedan >> A/T Control System >> Shift Mechanism >> Construction

Shift Mechanism: Construction

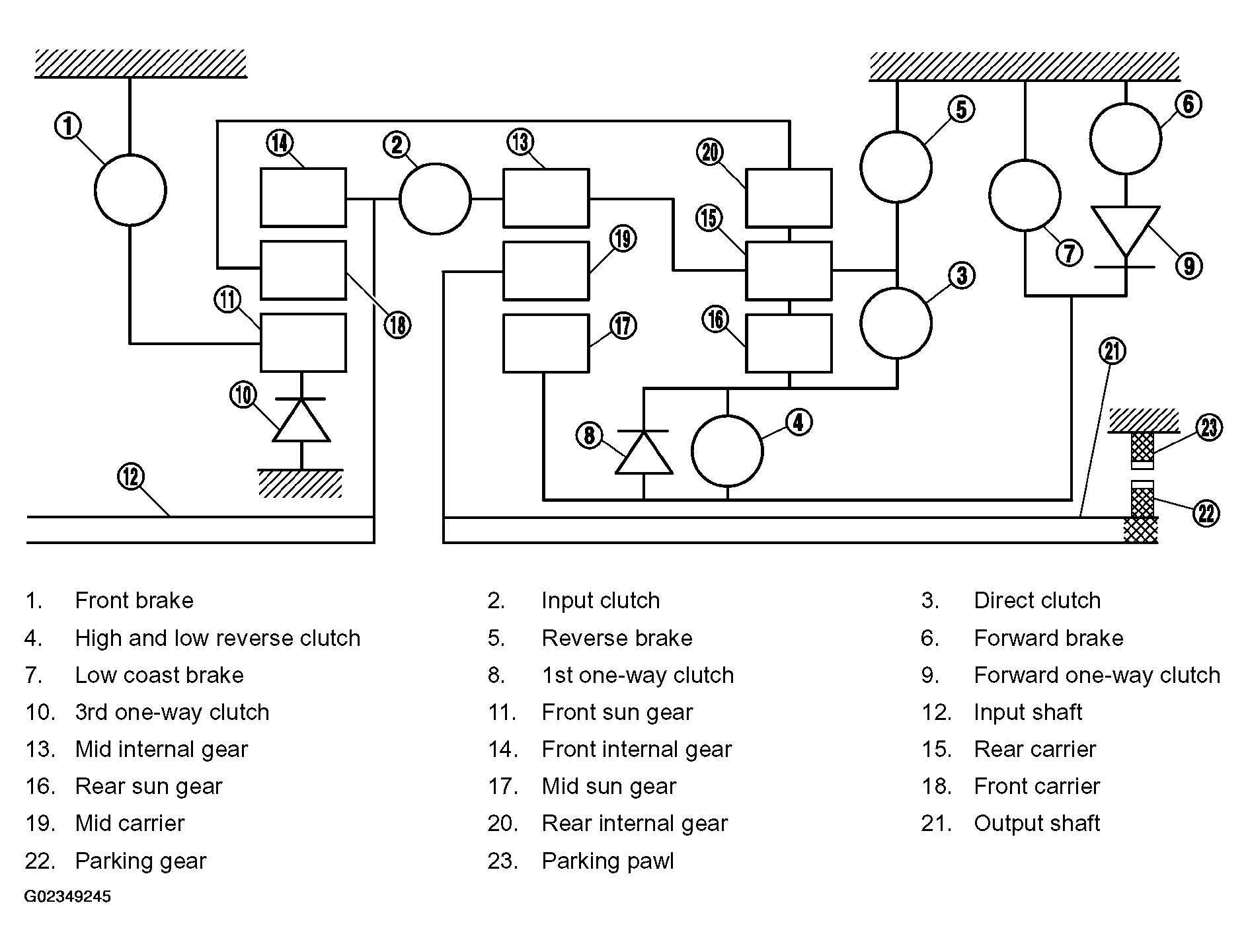

Fig 1: Identifying Construction Shift Mechanism

G02349245

Courtesy of NISSAN MOTOR CO., U.S.A.
