Infiniti
>>
2005
>>
G35 x
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission - Sedan
>>
A/T Control System
>>
Cross-Sectional View (AWD Models)
Cross-Sectional View (AWD Models)

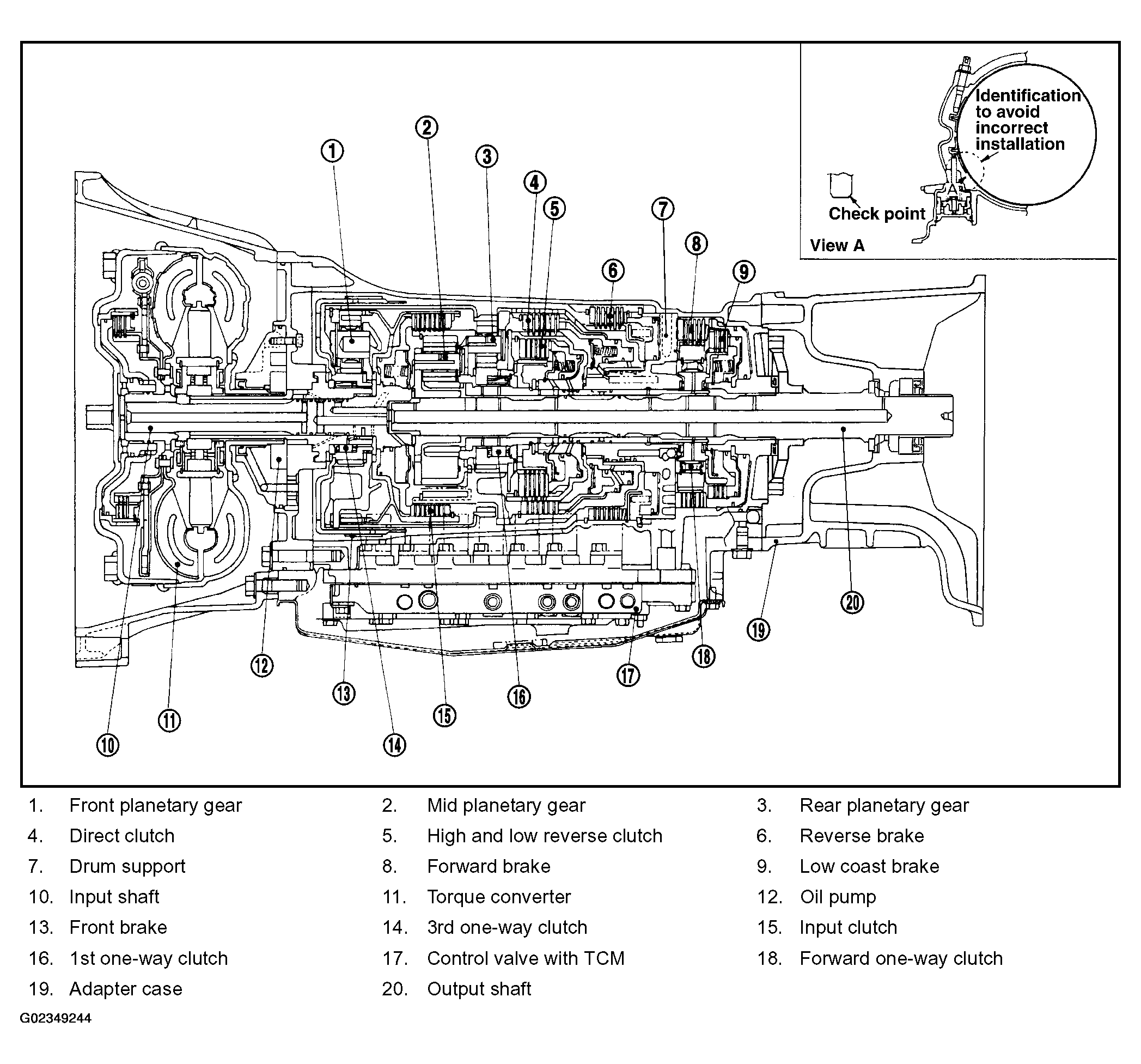

Fig 1: Identifying Cross -Sectional View (AWD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
