Cross-Sectional View (2WD Models)
Cross-Sectional View (2WD Models)

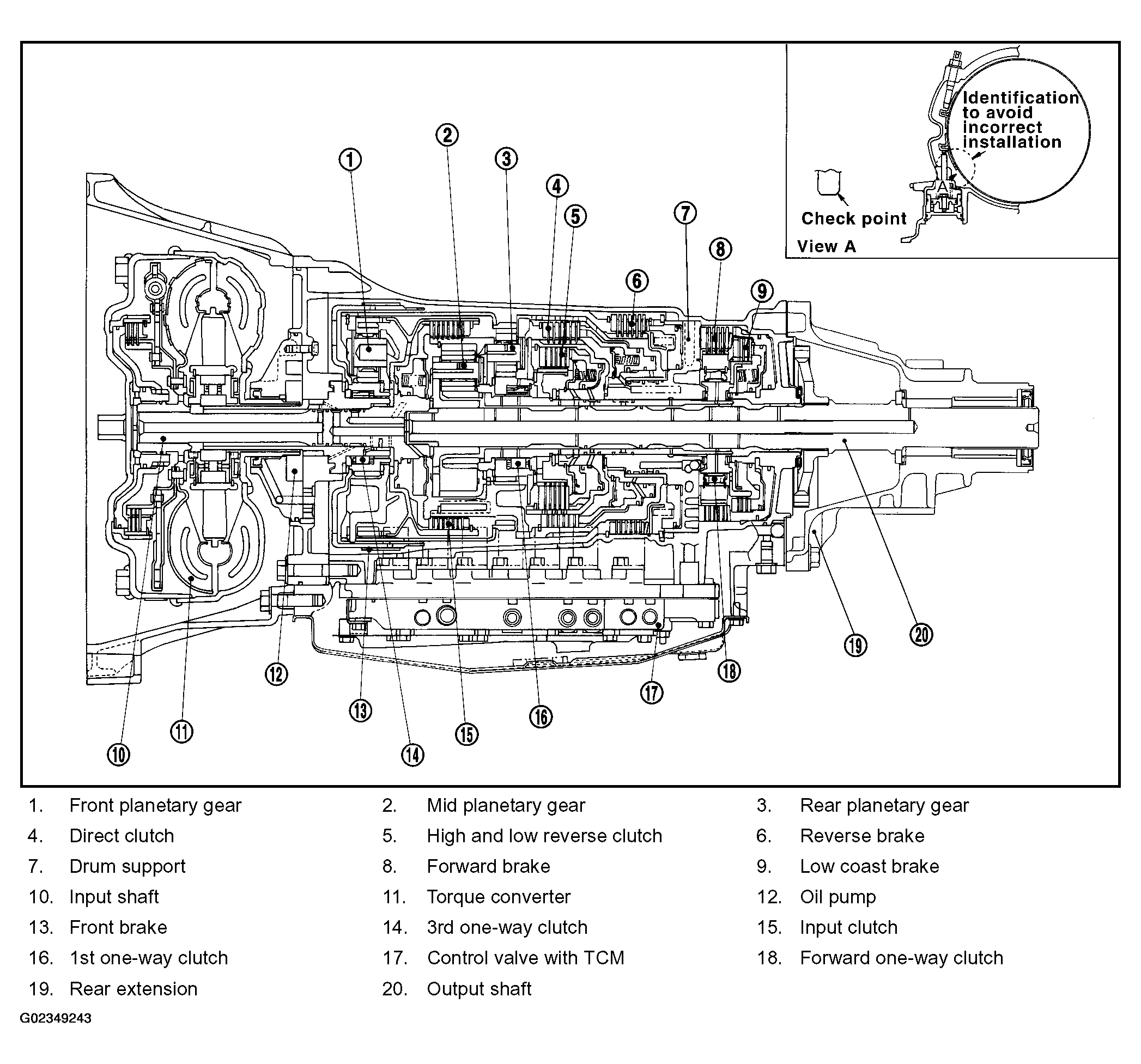

Fig 1: Identifying Cross - Sectional View (2WD Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
