Disassembly and Assembly: Disassembly

Remove all parts from jacket tube assembly.

• When remove tilt lever, perform as shown in the figure.

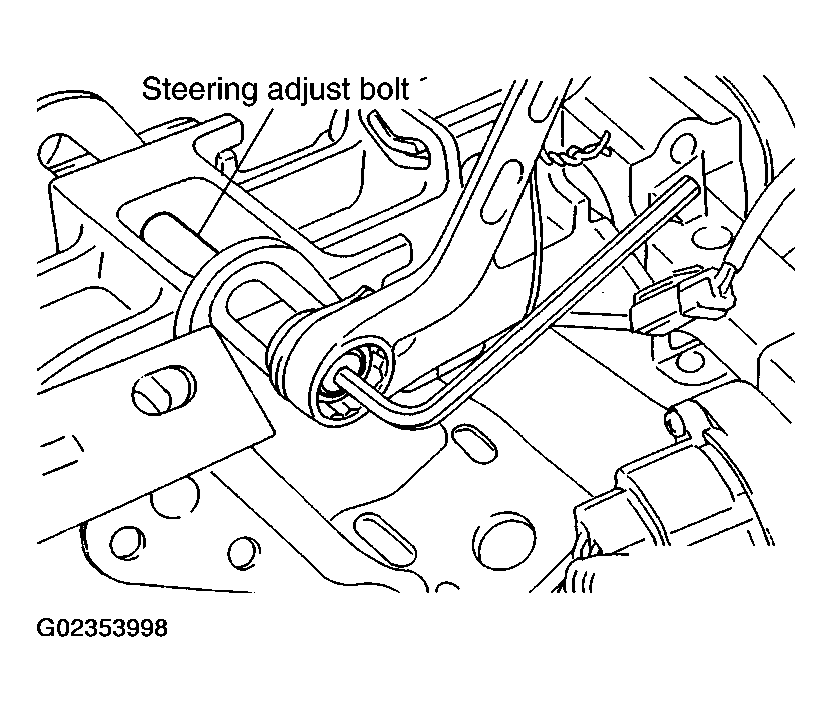

  Fig 1: Removing Tilt Lever

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When remove telescopic lever, perform as shown in the figure.

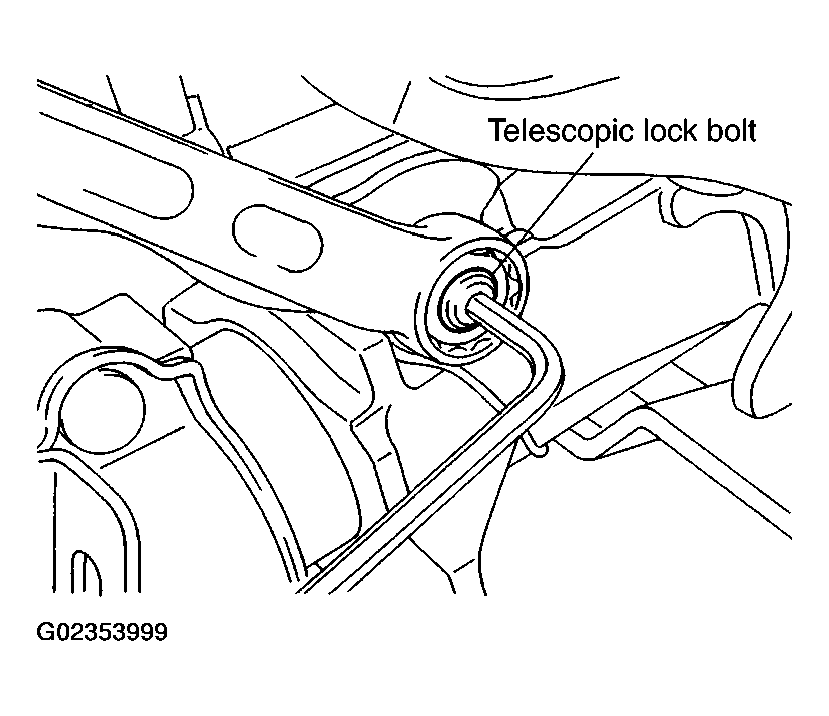

  Fig 2: Removing Telescopic Lever

  Courtesy of NISSAN MOTOR CO., U.S.A.

Remove parts from jacket tube assembly. Refer to "COMPONENT (WITH AUTOMATIC DRIVE POSITIONER) ".
