How To Use This Data: Components: Notes

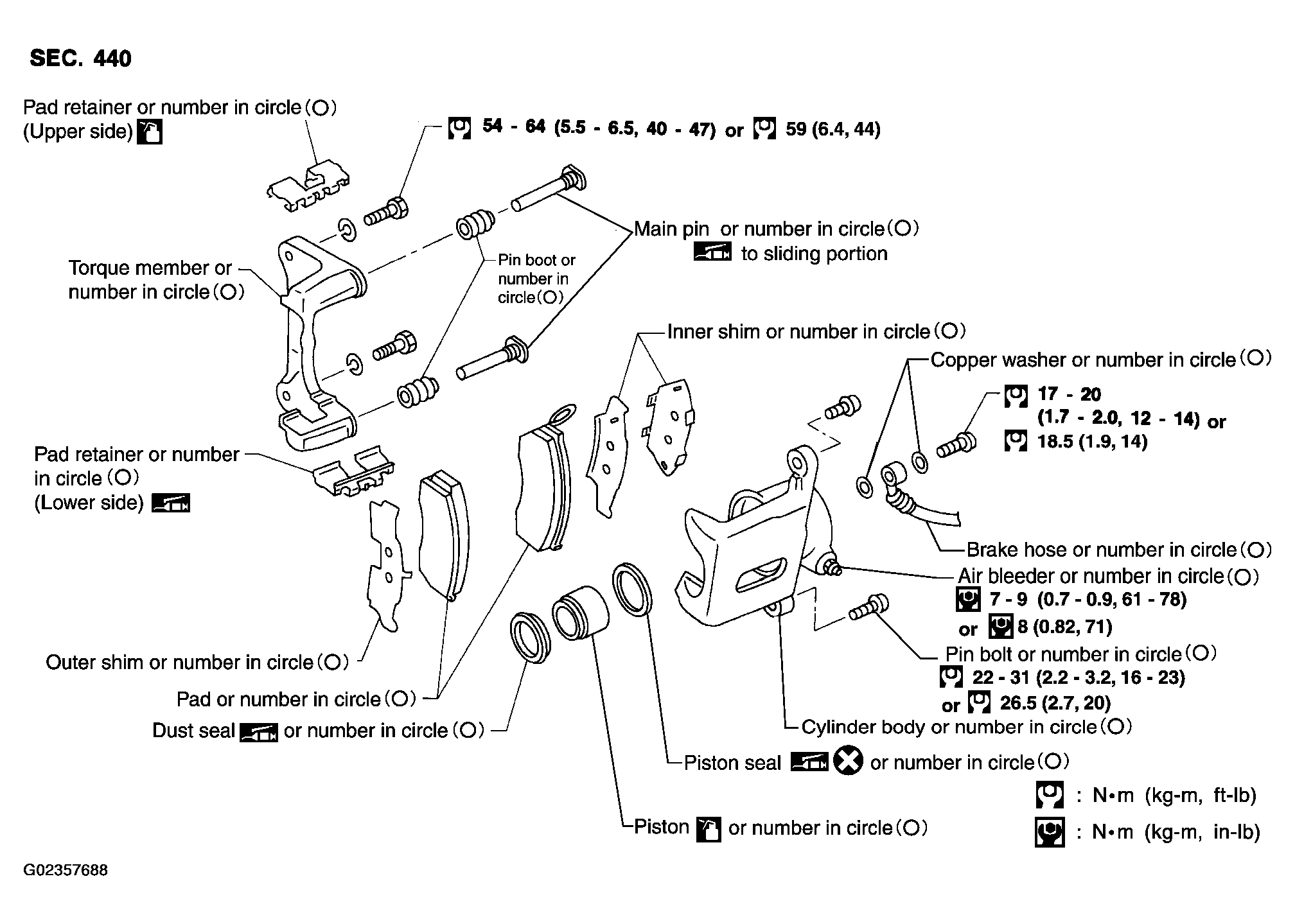

- THE LARGE ILLUSTRATIONS
are exploded views (See the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG
(e.g. SEC. 440) and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.
Components shown in an illustration may be identified by a circled number. When this style of illustration is used, the text description of the components will follow the illustration.
