Rear Disc Brake: Component

WARNING: This page is about a different variant/trim than selected.

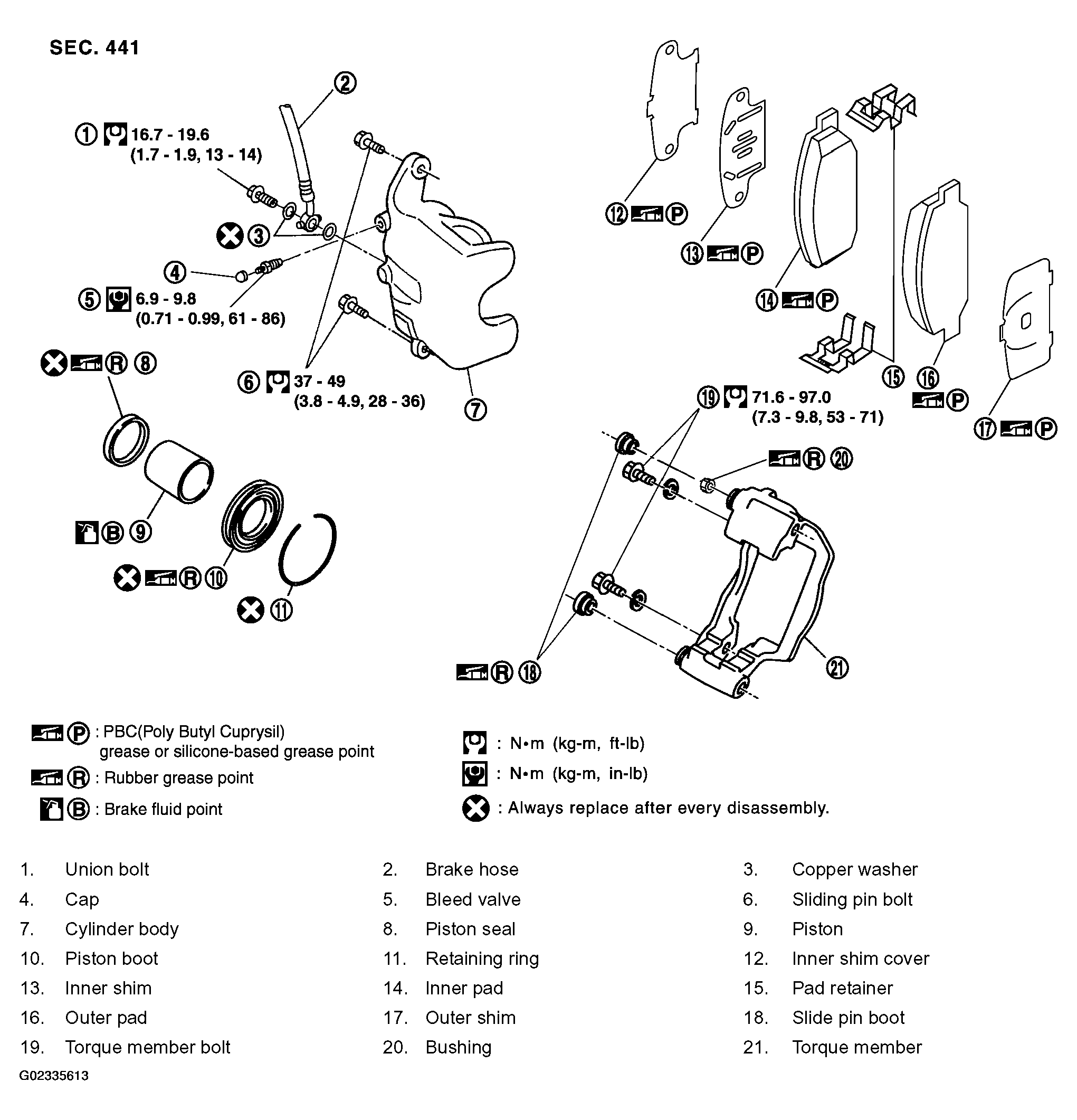

Fig 1: Rear Disc Brake Assembly Replacement Components With Torque Specifications
G02335613Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Clean dust on the caliper and brake pad with a vacuum dust collector. Do not blow with compressed air.
  • While removing cylinder body, never depress brake pedal because the piston will pop out.
  • It is not necessary to remove mounting bolts on the torque member and brake hose except for disassembly or replacement of caliper assembly. In this case, hang cylinder body with a wire so that brake hose is not under tension.
  • Do not damage piston boot.
  • Always replace shims and shim covers as a set when replacing brake pads.
  • Keep rotor clean, free from brake fluid.
