Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove spiral cable assembly. Refer to SPIRAL CABLE in SUPPLEMENTAL RESTRAINT SYSTEM article. .
  2. Remove steering angle sensor from spiral cable assembly.

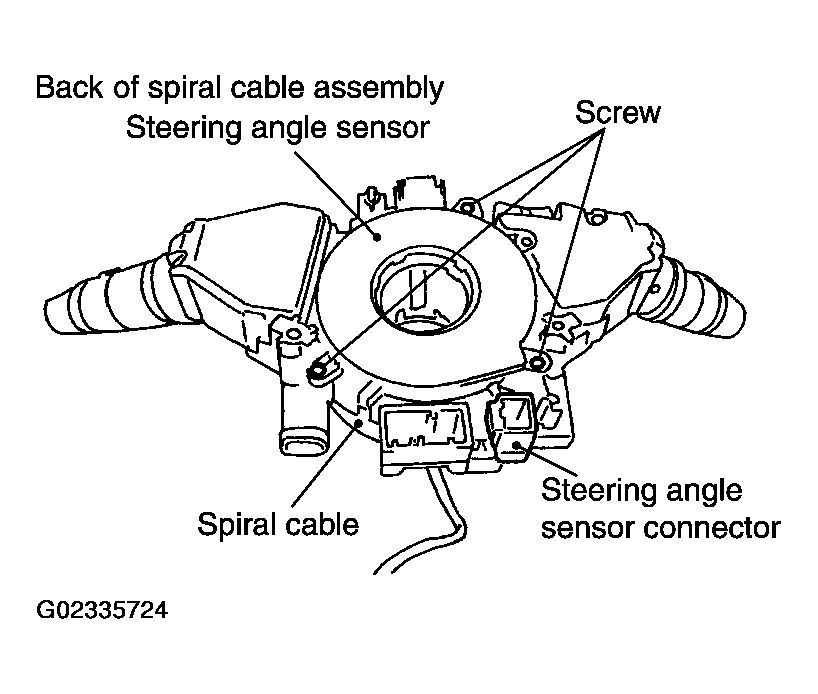

    Fig 1: Removing/Installing Steering Angle Sensor
    G02335724Courtesy of NISSAN MOTOR CO., U.S.A.
