Section 17 (Brake Control System - Coupe)
>>
General Information
>>
Hydraulic Pressure Control System Diagram
Hydraulic Pressure Control System Diagram
WARNING:
This page is about a different variant/trim than selected.

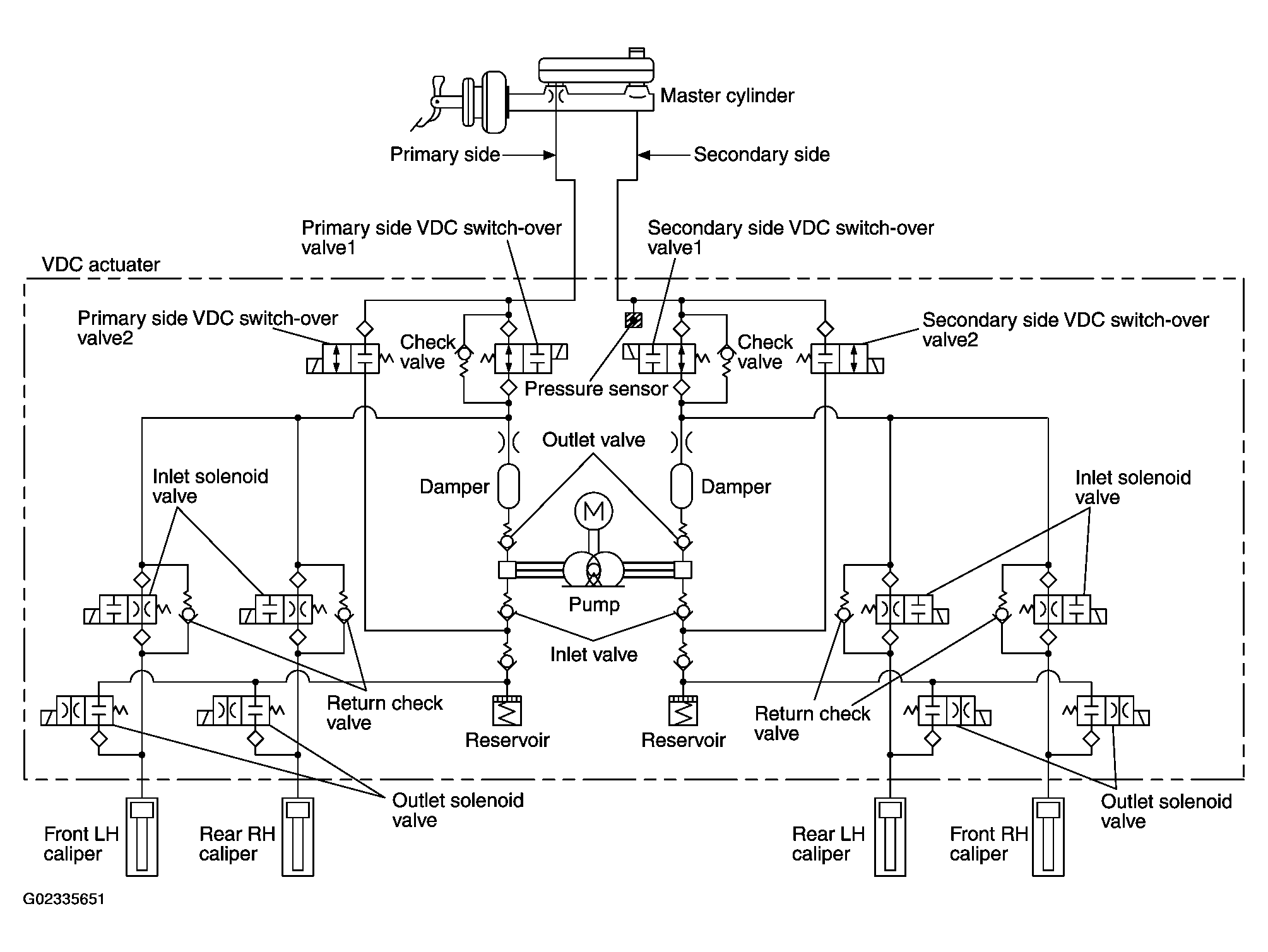

Fig 1: Hydraulic Pressure Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
