Shift Control Components

WARNING: This page is about a different variant/trim than selected.

If the contact surfaces of striking lever, fork rod, shift fork, etc. have excessive wear, abrasion, bend, or any other damage, replace the component.

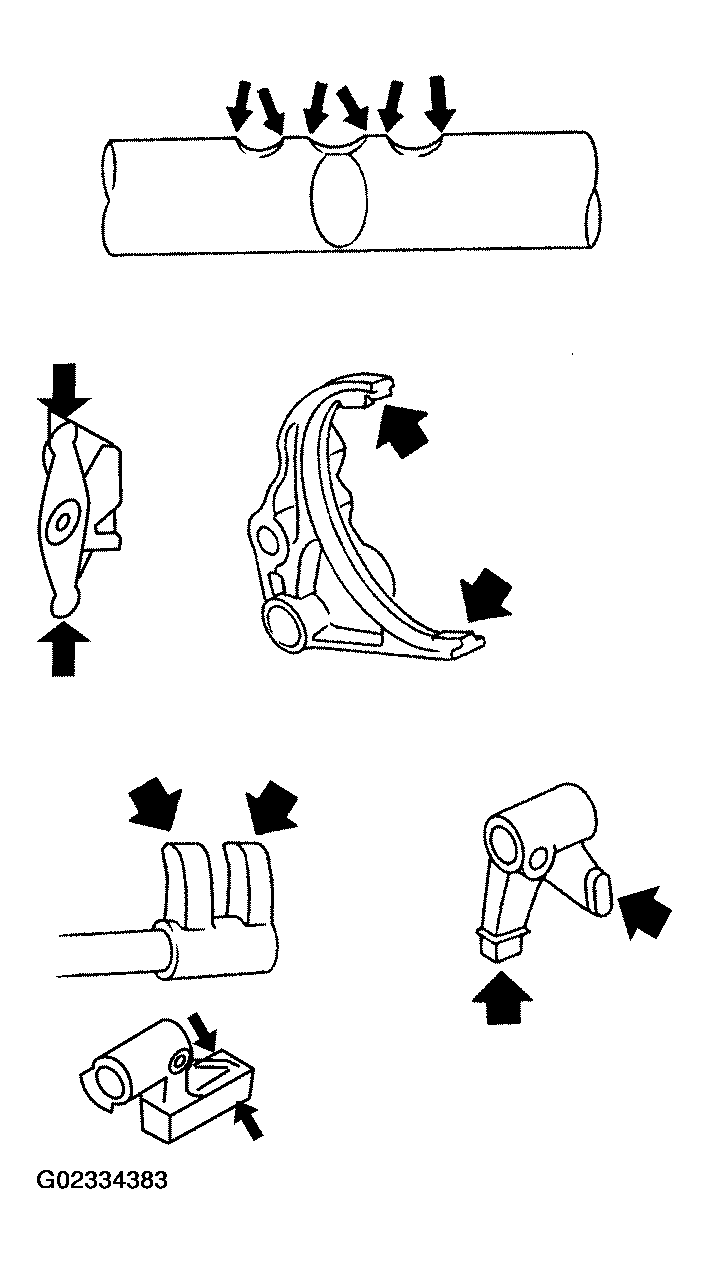

Fig 1: Inspecting Shift Control Components
G02334383Courtesy of NISSAN MOTOR CO., U.S.A.
