Shift Control Components

WARNING: This page is about a different variant/trim than selected.

Install adapter setting plate to adapter plate, and then secure adapter setting plate in a vise.
1. Tool number: ST224490000 ( - )

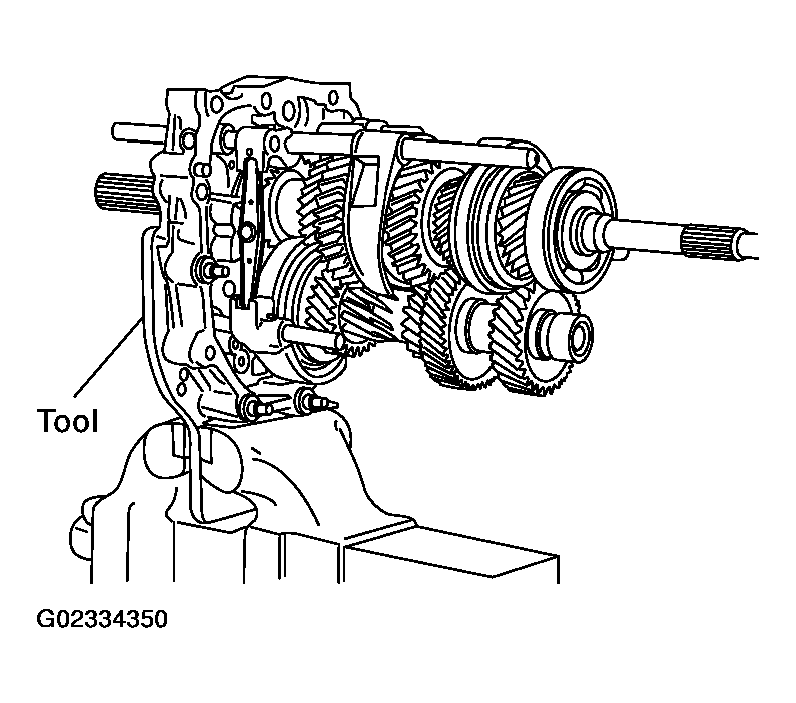

Fig 1: Securing Adapter Setting Plate In Vise
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove baffle plate mounting bolts and baffle plate from adapter plate.
NOTE: Mounting bolts are installed both from the front side and the reverse side of adapter plate.

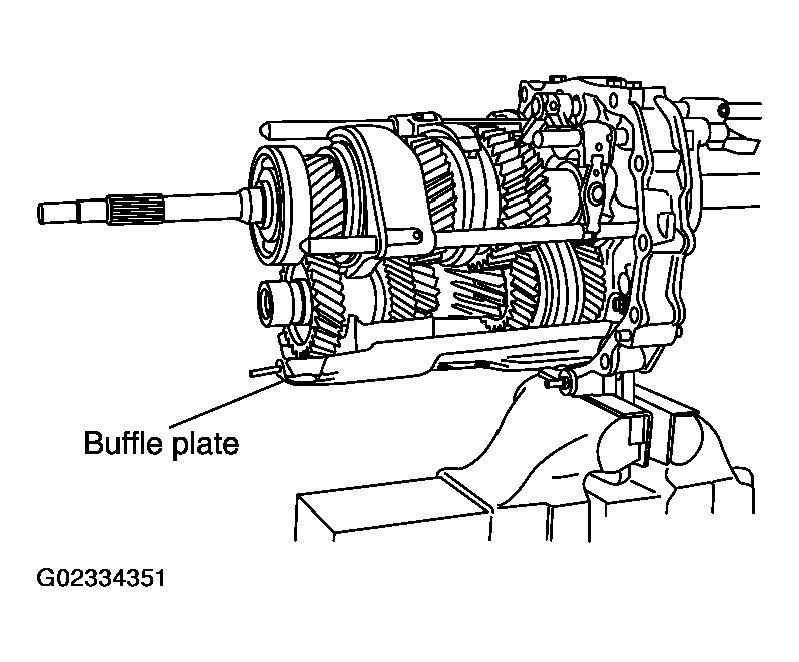

Fig 2: Removing Baffle Plate Mounting Bolts And Baffle Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove magnet from adapter plate.
Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove striking lever and striking rod.

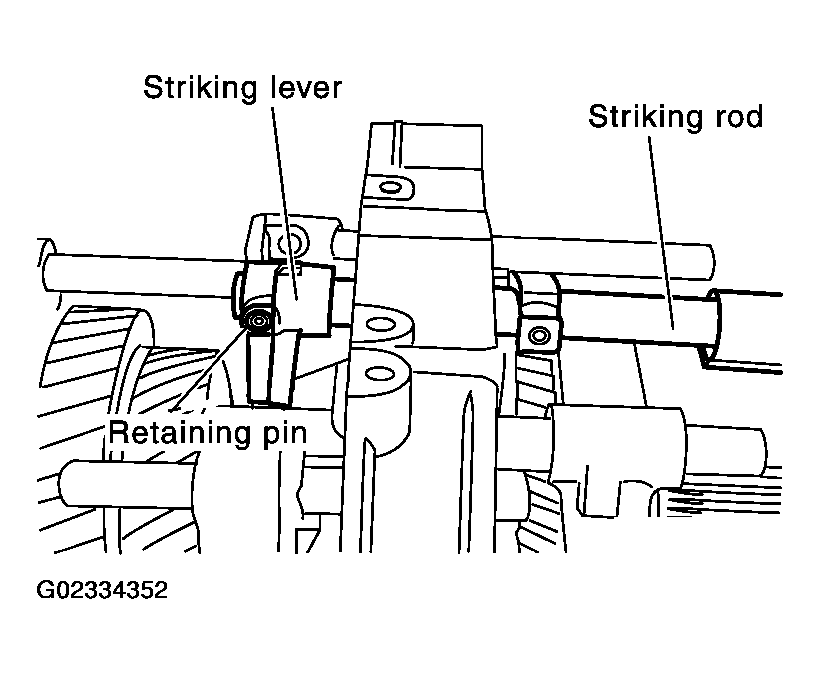

Fig 3: Removing Retaining Pin , Striking Lever And Striking Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove check ball plugs, check ball springs and check balls from adapter plate.

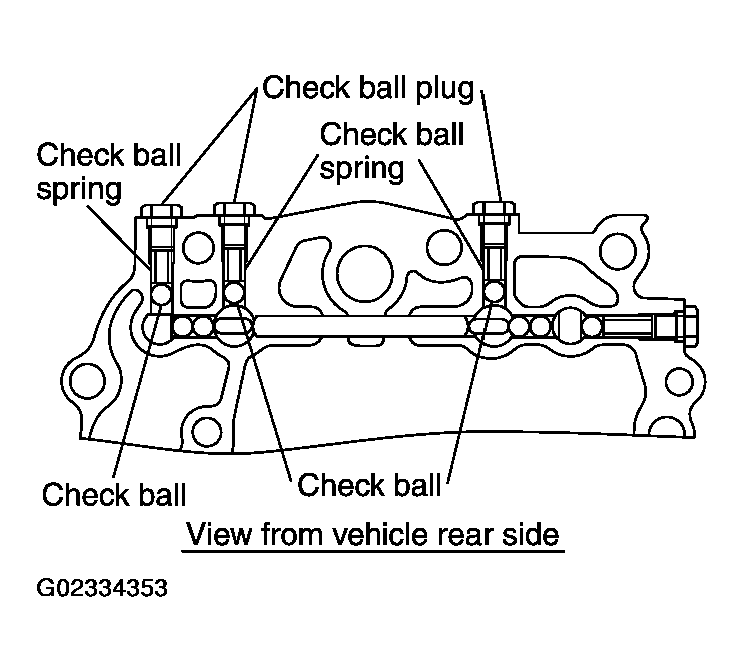

Fig 4: Removing Check Ball Plugs, Check Ball Springs And Check Balls
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 3rd-4th control lever mounting bolts and 3rd-4th control lever from adapter plate.

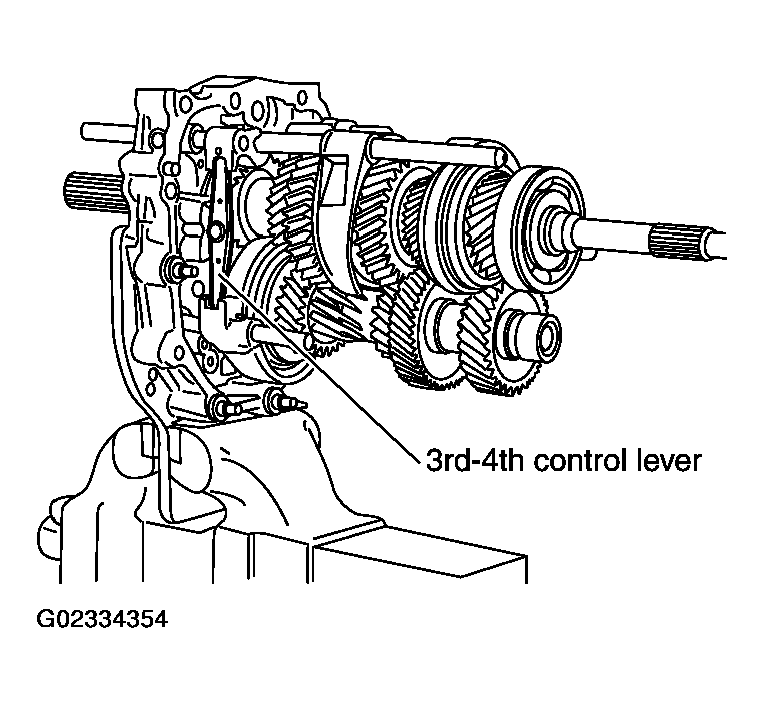

Fig 5: Removing 3rd-4th Control Lever Mounting Bolts And 3rd-4th Control Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove shifter cap from 3rd-4th control lever.
Remove check ball plug, check ball spring and check ball from adapter plate.

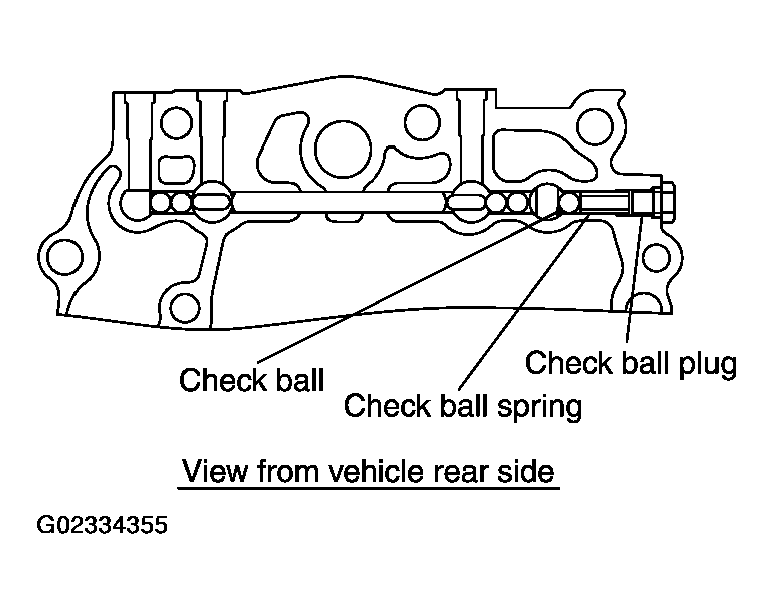

Fig 6: Removing Check Ball Plug, Check Ball Spring And Check Ball
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin using a pin punch [6mm (0.24in) dia.], and remove 3rd-4th fork rod bracket and 3rd-4th fork rod.

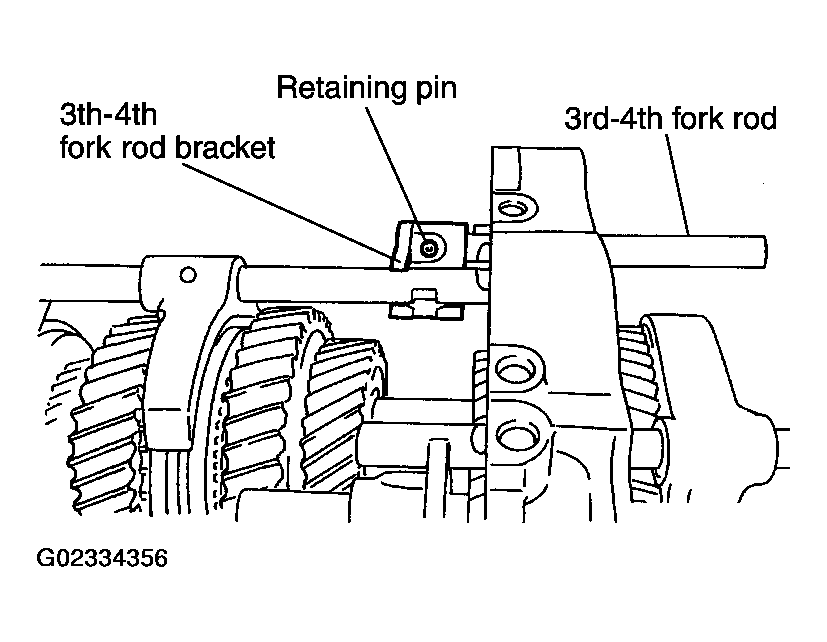

Fig 7: Removing Retaining Pin, 3rd-4th Fork Rod Bracket And 3rd-4th Fork Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 3rd-4th fork rod (reversal side) and 3rd-4th shift fork.

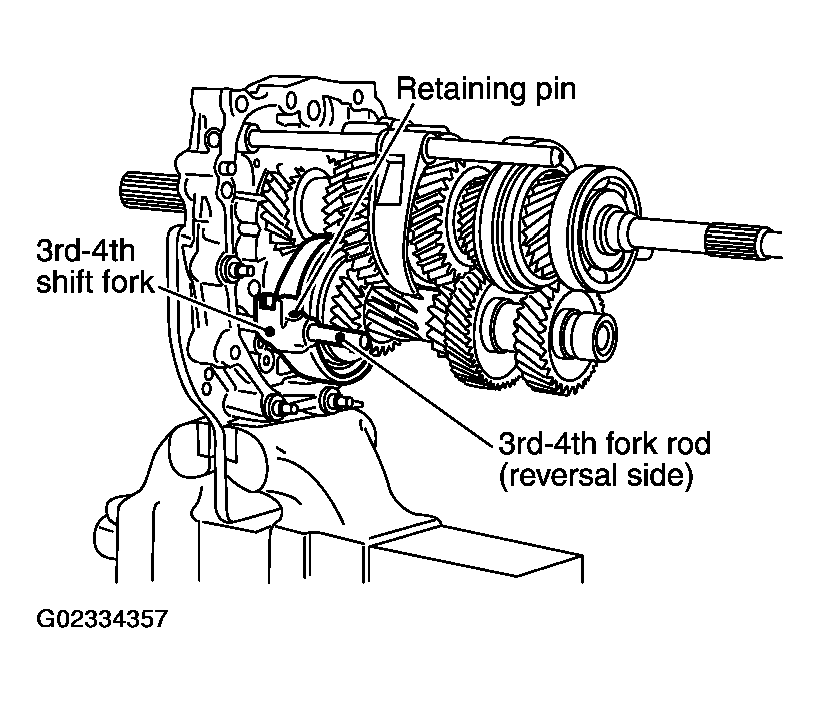

Fig 8: Removing Retaining Pin , 3rd-4th Fork Rod (Reversal Side) Bracket And 3rd-4th Fork Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove check balls and interlock pin from adapter plate.

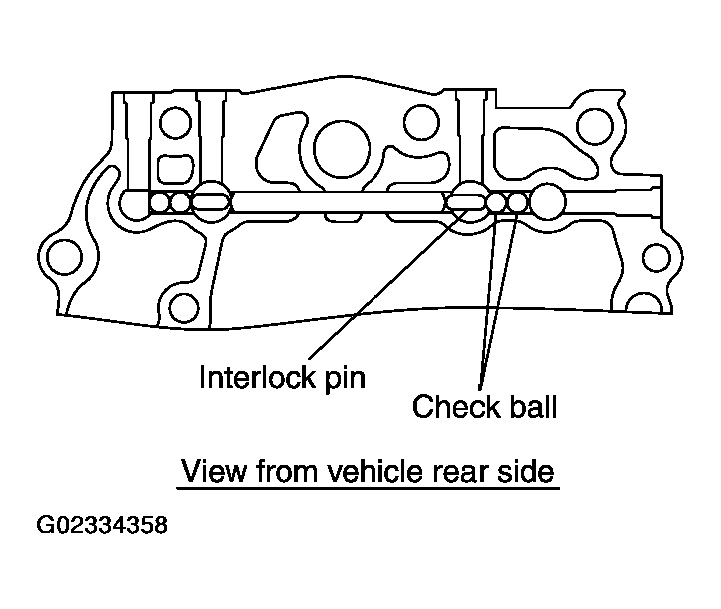

Fig 9: Removing Check Balls And Interlock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 1st-2nd fork rod and 1st-2nd shift fork.

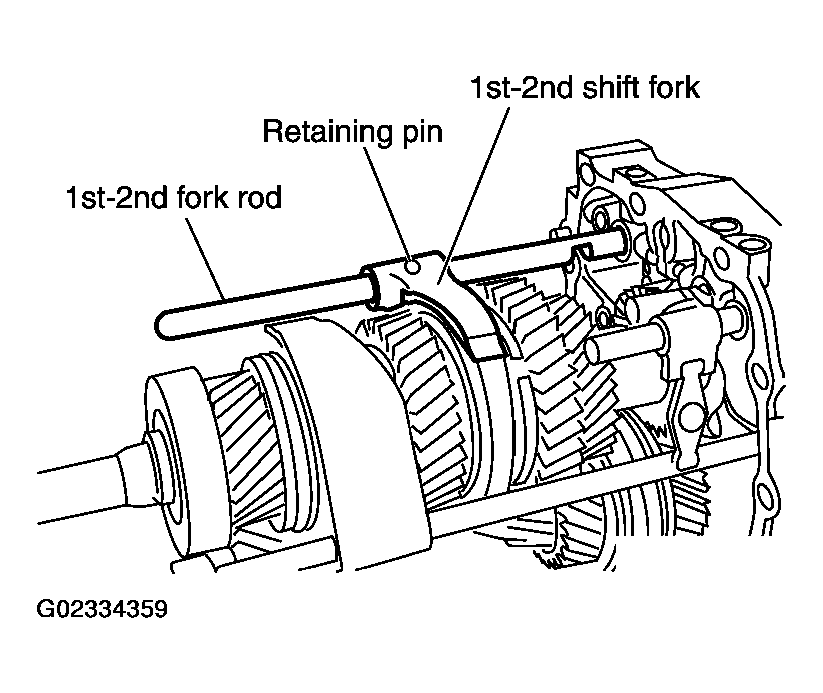

Fig 10: Removing Retaining Pin, 1st-2nd Fork Rod And 1st-2nd Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove interlock plunger and interlock pin from adapter plate.

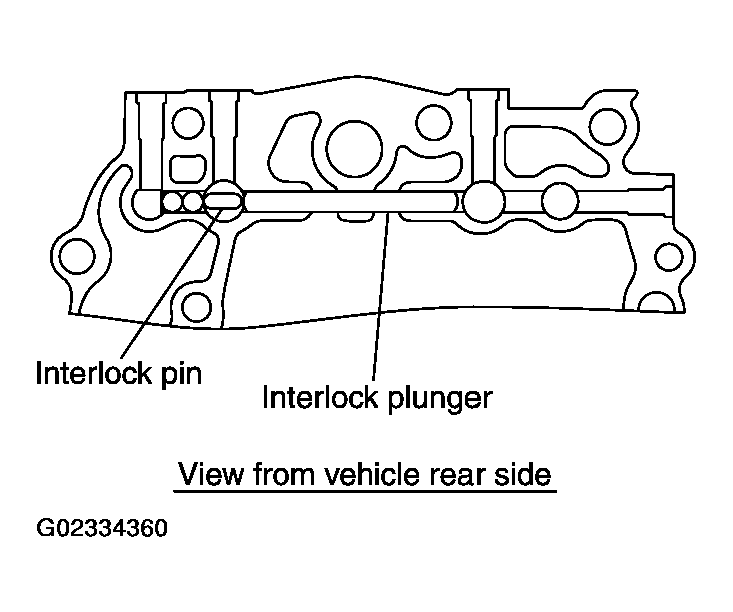

Fig 11: Removing Interlock Plunger And Interlock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove reverse fork rod and reverse shift fork.

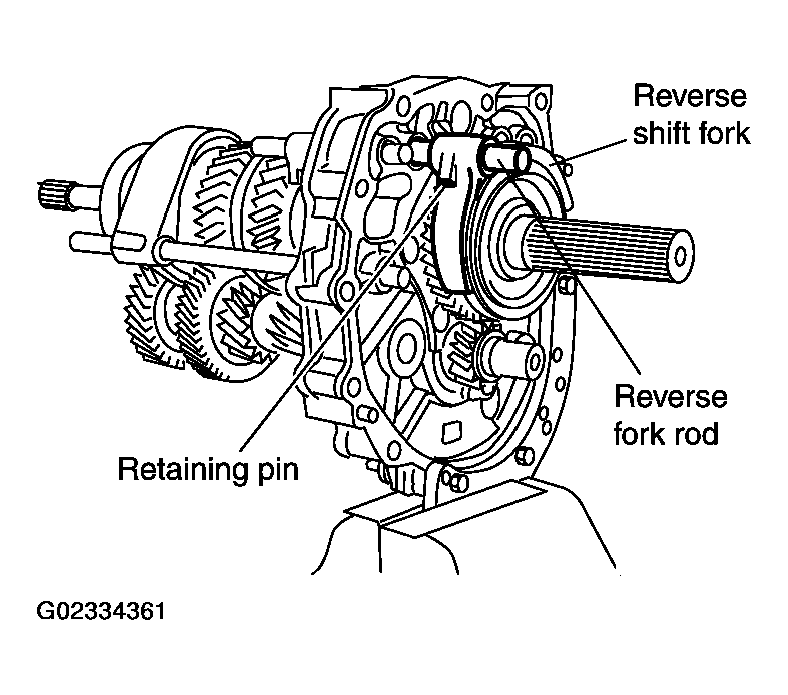

Fig 12: Removing Retaining Pin, Reverse Fork Rod And Reverse Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove check balls from adapter plate.

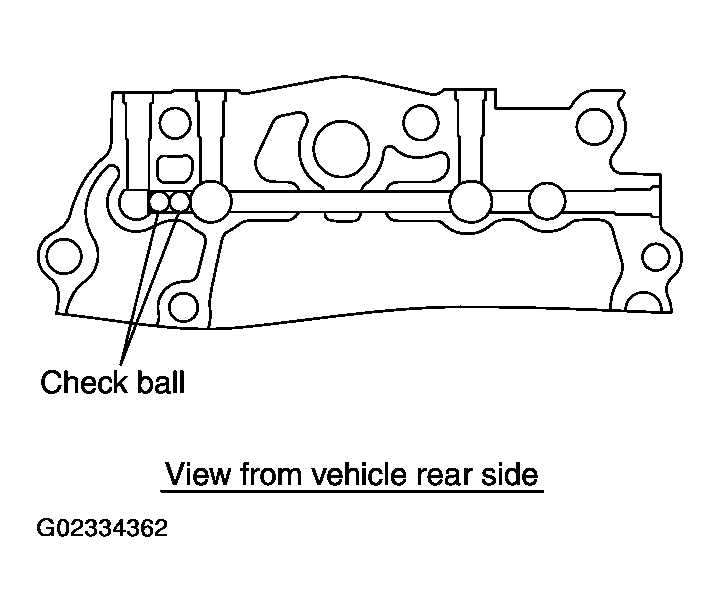

Fig 13: Removing Check Balls From Adapter Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove 5th-6th control lever mounting bolts, and 5th-6th control lever from adapter plate.

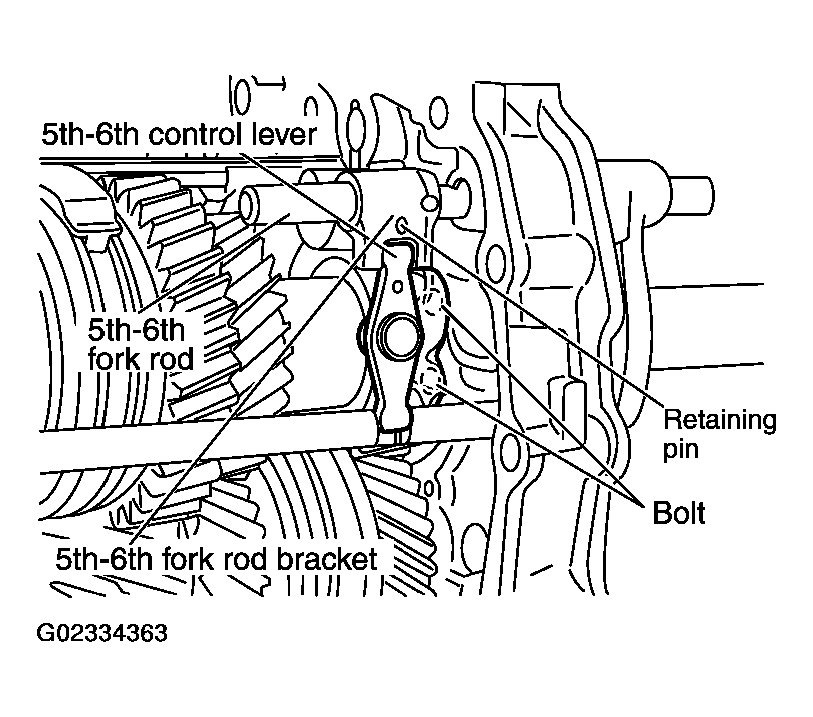

Fig 14: Removing 5th-6th Control Lever Mounting Bolts And 5th-6th Control Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 5th-6th fork rod and 5th-6th fork rod bracket.

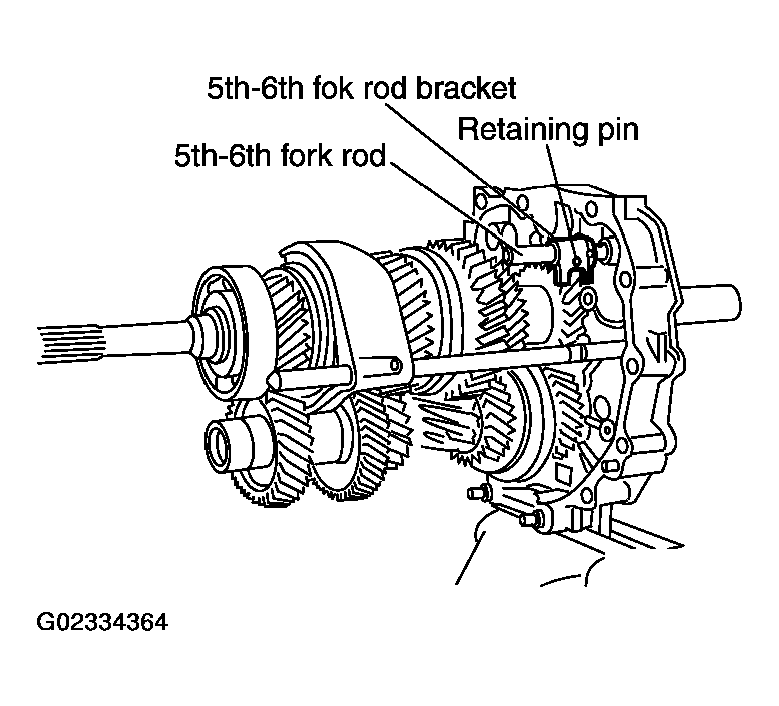

Fig 15: Removing Retaining Pin, Remove 5th-6th Fork Rod And 5th-6th Fork Rod Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.], and remove 5th-6th fork rod (reversal side) and 5th-6th shift fork.

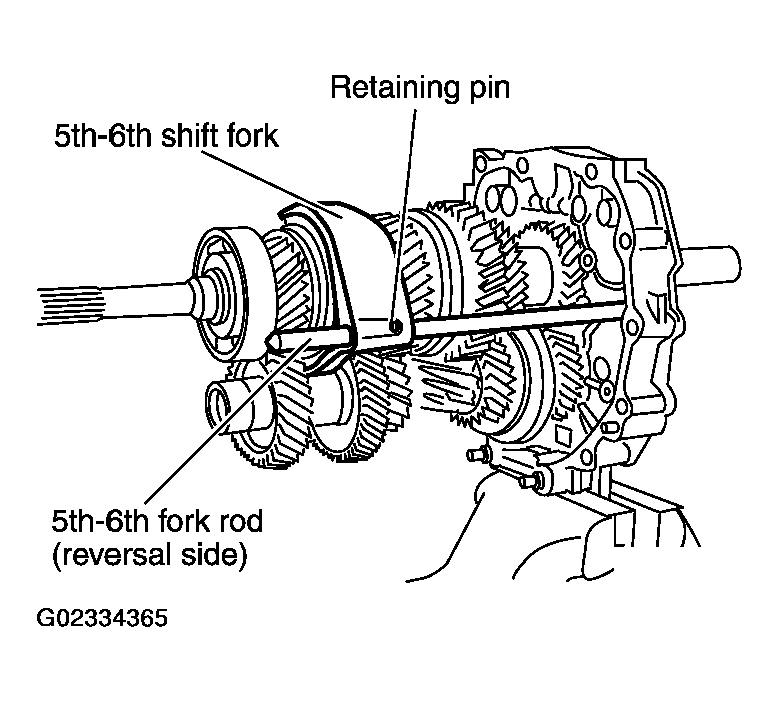

Fig 16: Removing Retaining Pin, Remove 5th-6th Fork Rod (Reversal Side) And 5th-6th Fork Rod Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
