Gear Components

WARNING: This page is about a different variant/trim than selected.

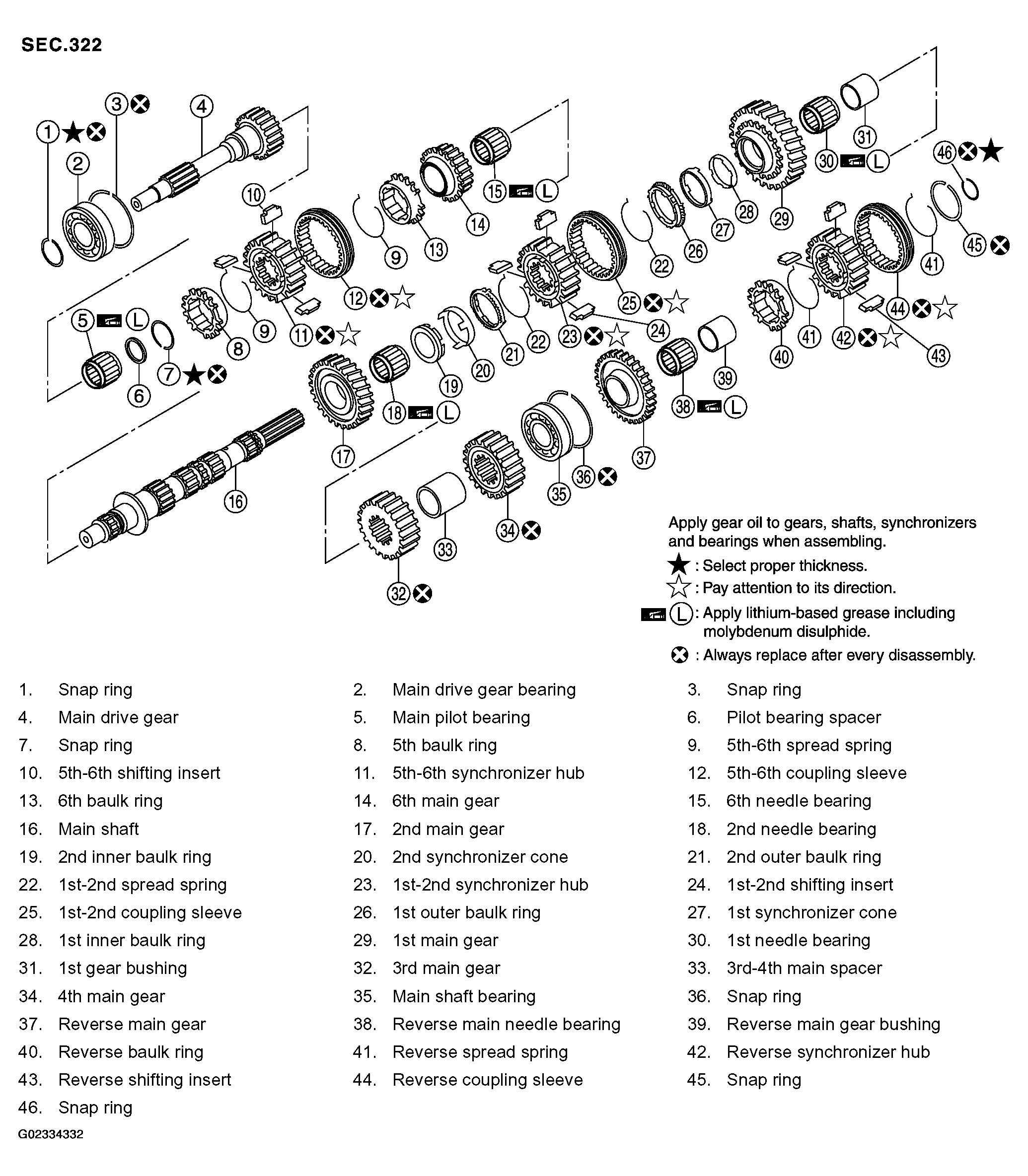

Fig 1: Identifying Gear Components (1 of 2)
G02334332Courtesy of NISSAN MOTOR CO., U.S.A.

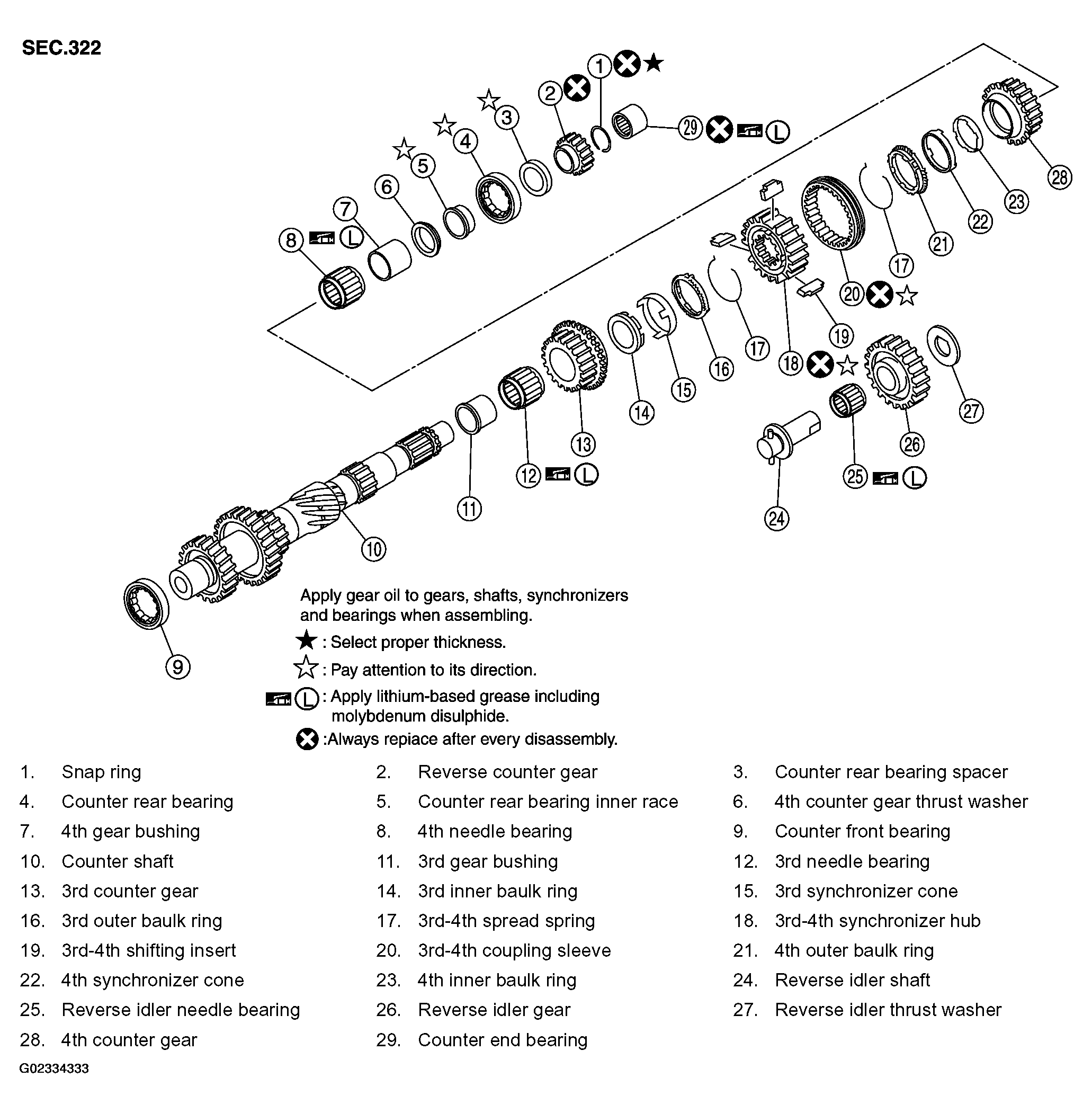

Fig 2: Identifying Gear Components (2 of 2)
G02334333Courtesy of NISSAN MOTOR CO., U.S.A.
