Back-Up Lamp Switch

WARNING: This page is about a different variant/trim than selected.
BACK-UP LAMP SWITCH CONTINUITY SPECIFICATIONS

Gear position Continuity
Reverse Yes
Except reverse No

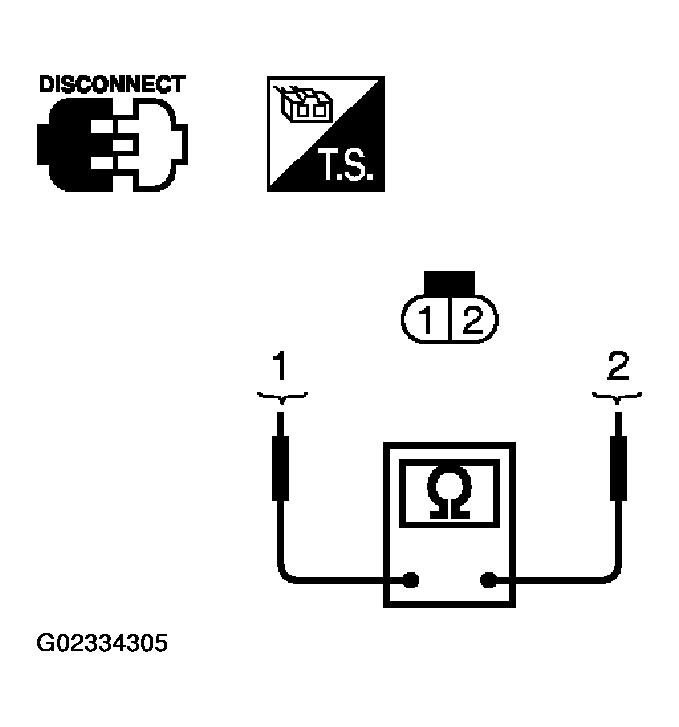

Fig 1: Checking Back-Up Lamp Switch Continuity
G02334305Courtesy of NISSAN MOTOR CO., U.S.A.
