LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2005
>>
G35 x
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - Sedan
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Work Support Mode
>>
Work Item
Work Item

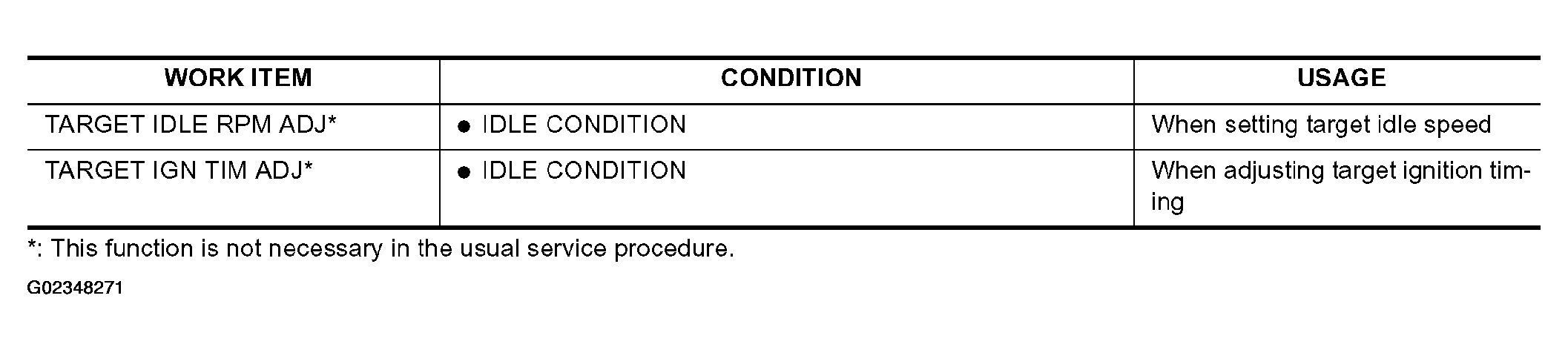

Fig 1: Work Support Mode Table - (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

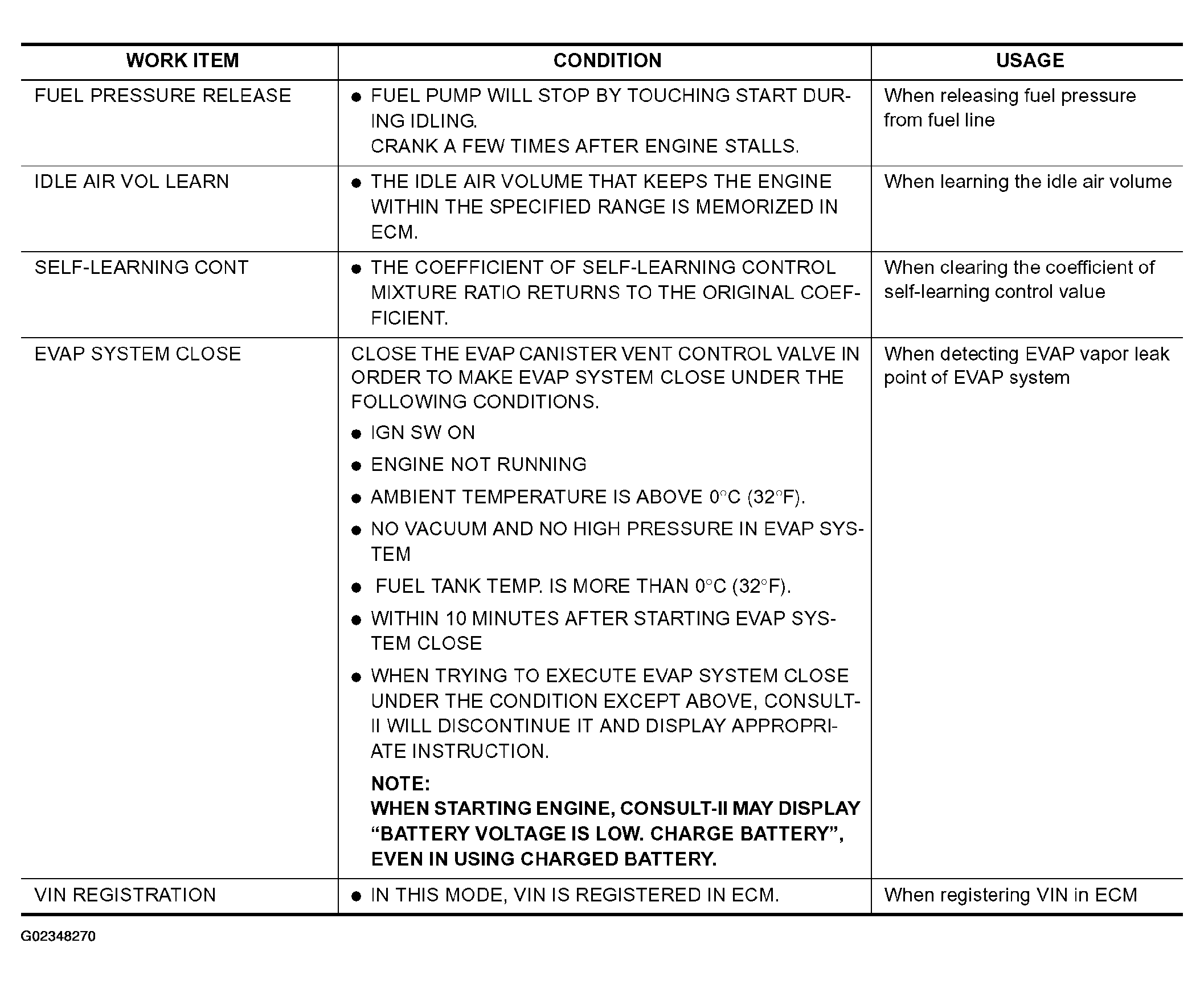

Fig 2: Work Support Mode Table - (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
